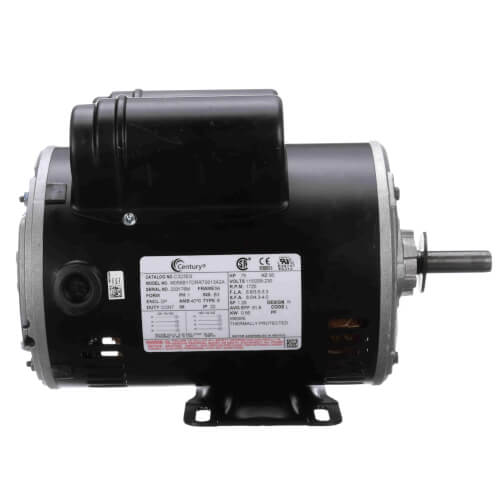

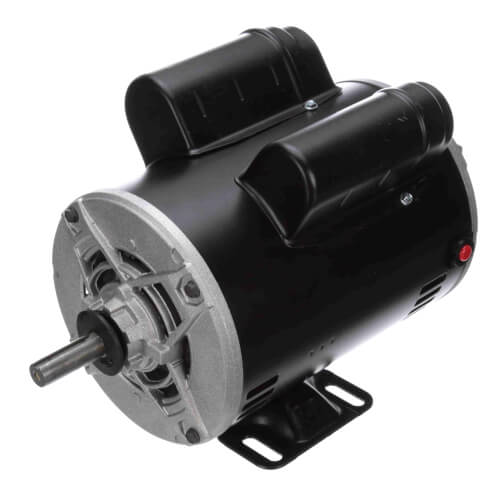

Century C323ES General Purpose Motor 0.75 HP 115-208-230v 1800 RPM 56 Frame ODP

Product Description

The Century C323ES General Purpose Motor offers reliable performance for various HVAC applications. This motor is ideal for general use where consistent operation is needed.

• 0.75 HP power ensures efficient performance.
• Operates at 115/208-230 volts.
• 1800 RPM speed for optimal function.

Product Highlights

This general-purpose motor is built to serve a range of HVAC needs, providing dependable power and durability. It features a 56 frame size and operates with an open drip-proof enclosure.

Product Information

Standard Information

• Brand: Century
• MPN: C323ES

Technical Specifications

• Horse Power: 0.75 HP
• Voltage: 115/208-230V
• Phase: 1
• Duty: Continuous
• RPM: 1800
• Frame: 56
• Enclosure Type: Open Drip Proof
• Mount: Rigid Base
• Amperage: 3.5, 6.6, 3.3
• Bearings: Ball
• Rotation: Selective CCW
• Insulation Class: B
• Poles: 4
• Speeds: Single
• Overload Protection: Thermally
• Max Ambient Temperature: 104°F
• Country of Origin: Mexico
