Product Description

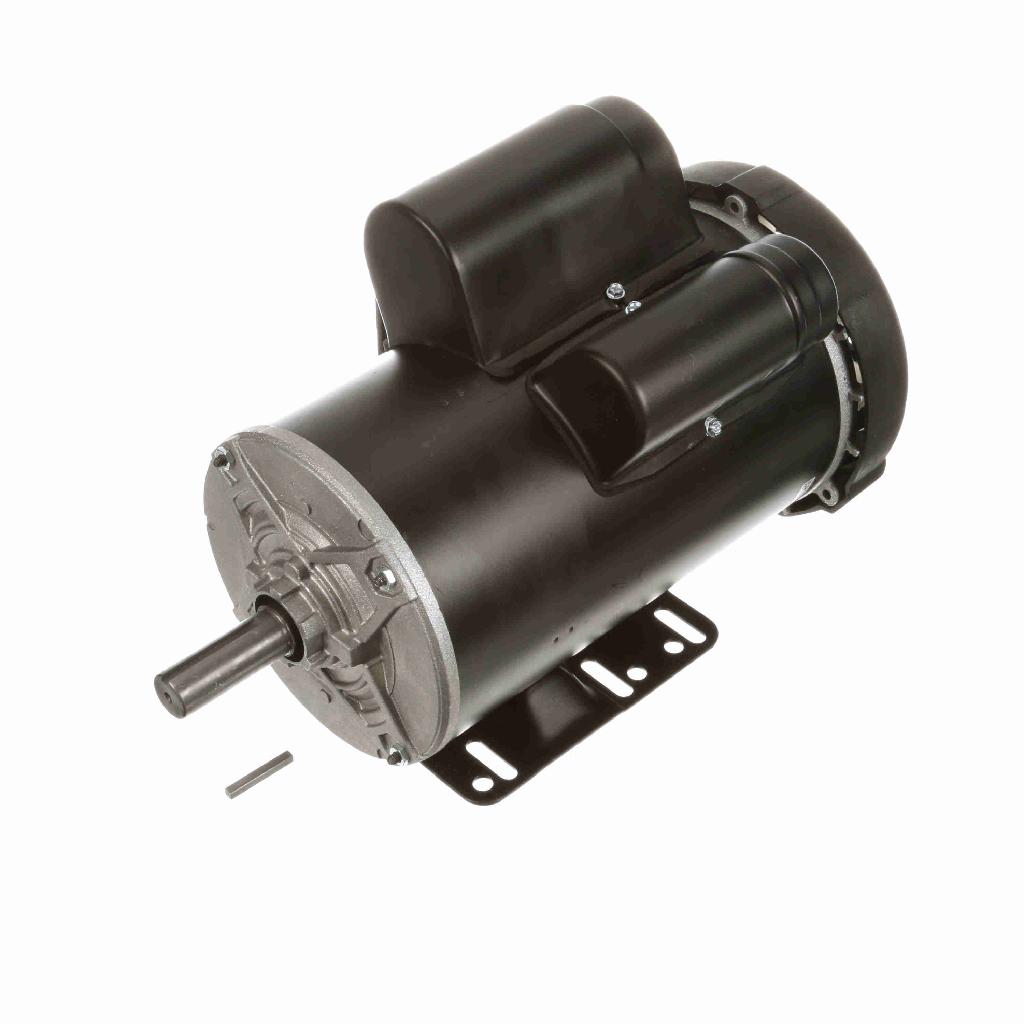

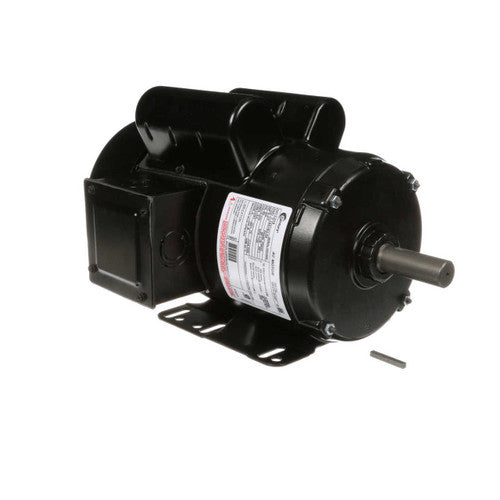

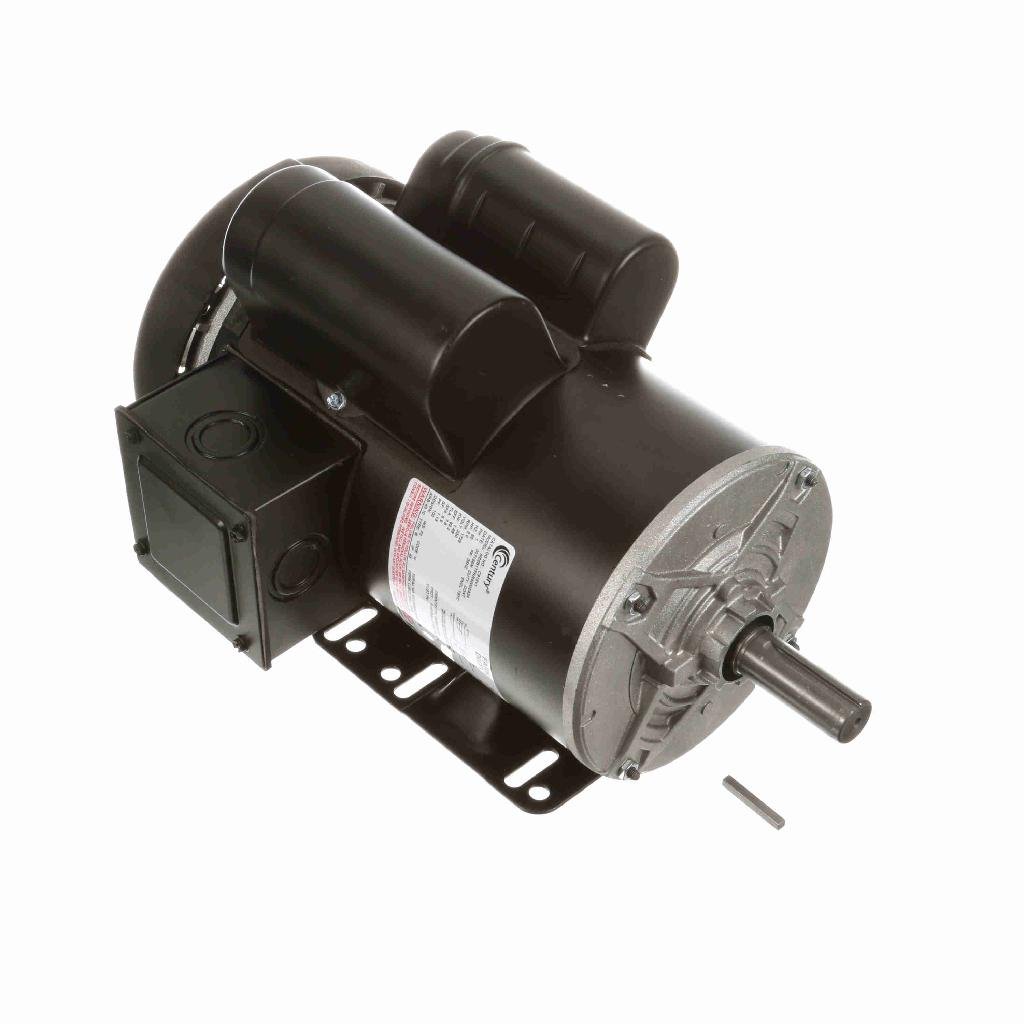

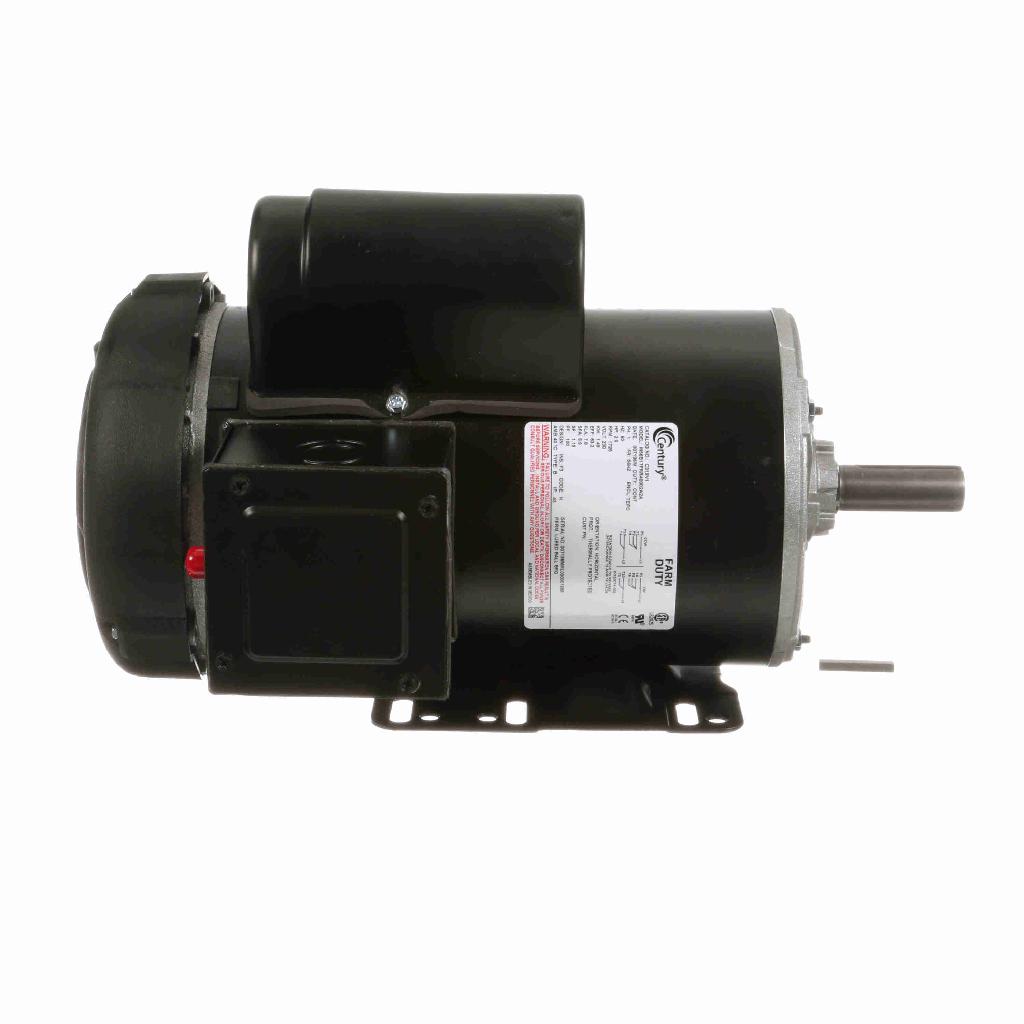

The Century Motors C319V1 is a general purpose farm duty motor with two horsepower. It operates at a voltage of two hundred thirty volts and supports a frequency of sixty hertz. Designed for reliable performance, this motor runs at one thousand eight hundred RPM with a 56HZ frame. Its totally enclosed fan cooled construction ensures optimal operation in agricultural settings.
- Thermally protected for safety and longevity.
- Double-shielded bearings for extended service life.
- Shaft flingers keep bearings secure from environmental debris.
Product Highlights
This motor is built for high starting torque and intended for continuous duty applications, making it suitable for varied farm tasks.
Product Information
Standard Information
-
Brand: Century Motors
-
MPN: C319V1
Technical Specifications
-
Phase: 1
-
Output HP: 2.0 HP
-
Output KW: 1.5 kW
-
Voltage: 230 V
-
Speed: 1800 RPM
-
Service Factor: 1.15
-
Frame: 56HZ
-
Enclosure: Totally Enclosed Fan Cooled
-
Thermal Protection: Yes
-
Efficiency: 83.2%
-
Ambient Temperature: 40 °C
-
Frequency: 60 Hz
-
Current: 7.8 A
-
Duty: Continuous
-
Insulation Class: F
-
UL Listed: Yes
-
CSA Certified: Yes
-
CE Certified: Yes
-
Electrical Type: Capacitor Start Capacitor Run
-
Starting Method: Across The Line
-
Poles: 4
-
Rotation: Selective Counterclockwise
-
Mounting: Rigid Base
-
Shaft Type: Single Special Extension
-
Shaft Diameter: 0.875 inches
-
Shaft Extension: 2.25 inches
