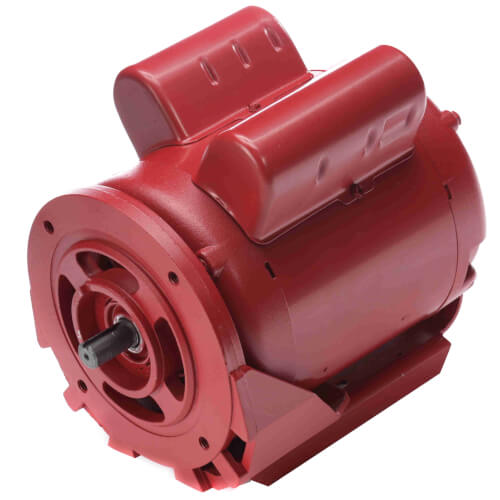

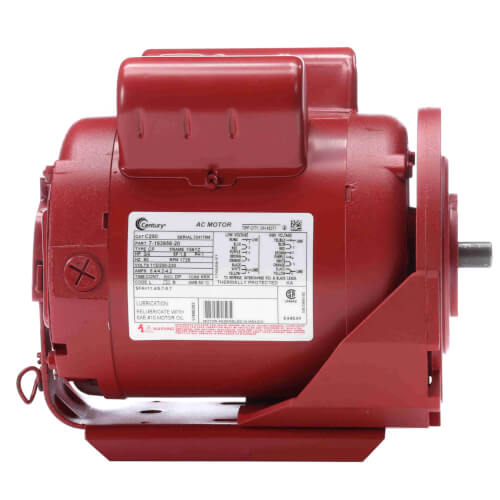

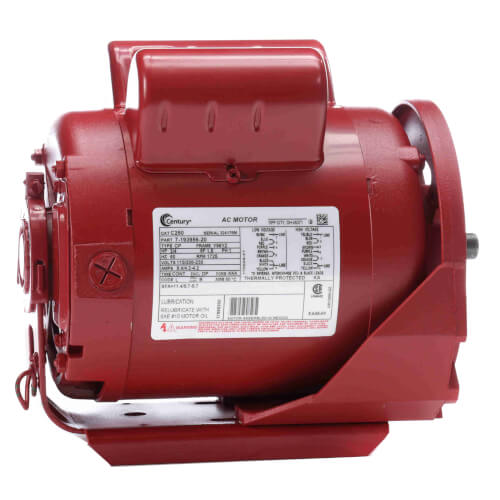

CENTURY MOTORS C250V1 Circulator Pump Motor 3/4 HP

Product Description

The Century Motors C250V1 is a three-quarter horsepower, single-phase AC motor made for circulator pump applications. This motor runs at one thousand seven hundred twenty-five revolutions per minute and works with both one hundred fifteen and two hundred eight to two hundred thirty volts power sources at sixty hertz. It has an open dripproof enclosure, a fifty-six Y frame, and uses a capacitor start and capacitor run system. The unit is thermally protected, making it suitable for continuous duty in environments as hot as fifty degrees Celsius. The motor also rotates in a counterclockwise direction.

• Operates at 1725 RPM for optimal performance.
• Features an open dripproof enclosure.
• Designed for continuous duty applications.

Product Highlights

This motor is ideal for circulator pump use, ensuring effective performance and durability in various applications.

Product Information

Standard Information

• Brand: Century
• MPN: C250V1

Technical Specifications

• Output Power: 3/4 HP
• Output Power (kW): 0.56 kW
• Voltage: 115/208-230 V
• Frequency: 60 Hz
• Phase: 1
• Speed: 1725 rpm
• Poles: 4
• Frame: 56Y
• Enclosure: Drip Proof
• Duty: Continuous
• Insulation Class: B
• Rotation: Counterclockwise
• Mounting Type: Cushion Base
• Service Factor: 1.5
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Current: 8.4/4.2 A
• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Starting Method: Across The Line
• Bearing Type (Drive End): Sleeve
• Bearing Type (Opposite Drive End): Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 10.35 in
• Frame Length: 5.13 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1.18 in
• Certifications: UL Recognized, CSA Y, CE N
