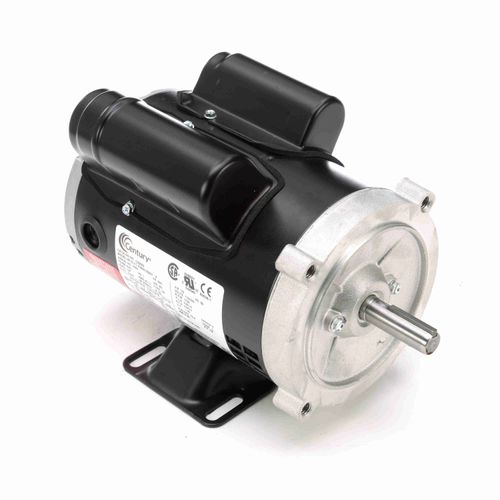

Century Motors C235ES General Purpose Motor 1/3 HP 56C Frame

Product Description

The CENTURY MOTORS C235ES is a general purpose motor. Featuring capacitor start capacitor run electrical type, this motor delivers 1/3 HP and 1725 RPM. Its heavy-duty, rolled steel construction ensures durability. UL recognized and CSA certified, ensuring safe use in various applications.

• Electrical Type: Capacitor Start Capacitor Run
• Heavy-duty, rolled steel construction ensures motor durability
• UL recognized component listing and CSA certification ensures the product is safe for use

Product Highlights

This general purpose motor is designed for durability and safety, suitable for a variety of applications.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: C235ES
• Country of Origin: Mexico

Technical Specifications

• MPN: C235ES
• Brand: Century
• Phase: 1
• Voltage: 115/230 V
• Frame: 56C
• Enclosure: Drip Proof
• Rotation: Reversible
• Mounting: Rigid Base
• Shaft Type: Keyed
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• HP: 1/3
• RPM: 1725
• Diameter: 6.5"
• Overload: None
• Material: Rolled Steel
• Amperage: 3.8/1.9
• KW: 0.25
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.060"
• Output KW: 0.25 kW
• Speed: 1725 rpm
• Service Factor: 1.35
• Thermal Protection: No Protection
• Efficiency: 72.4 %
• Ambient Temperature: 40 00b0C
• Frequency: 60 Hz
• Current: 3.8/1.9 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: N
• CE: Y
• Number of Speeds: 1
• Electrical Type: Capacitor Start Capacitor Run
• Starting Method: Across The Line
• Poles: 4
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 10-15/16 in
• Frame Length: 7.13 in
• Rated Load (HP): 1/3
• AC Frequency Rating: 60 Hz
• Enclosure Type: ODP (Open Dripproof)
• Base RPM: 1800
• AC Motor Type: Induction/Asynchronous
• Reversible/Non-Reversible: Reversible
• Current Type: AC
• Model: C235ES
• Nominal Rated Input Voltage: 110 V, 115 V, 120 V, 220 V, 230 V, 240 V
• NEMA Frame Suffix: C
• AC Phase: Single Phase
• Horsepower @ 60 Hz: 1/3 hp
• Nameplate Voltage @ 60 Hz: 115/230V AC
• Usable @ 208V: Not Usable at 208V
• Nameplate RPM @ 60 Hz: 1,725 RPM
• Nameplate Service Factor @ 60 Hz: 1.35
• Full Load Amps @ 60 Hz: 3.8/1.9 A
• Motor Design: Capacitor-Start/Run
• Mounting Type: C-Face; Rigid Base
• Motor Enclosure Type: Open Drip Proof
• Motor Shaft Rotation: CW/CCW
• Motor Thermal Protection: None
• Nominal Efficiency: 72.4 %
• Ambient Temperature - Maximum: 40 00b0C
• Product Type: Capacitor Start
• Application: General Purpose
• Bearing Type: Ball
• Length Less Shaft: 8-7/8 in
• Mounting Position: Horizontal
• Shaft Design: Keyed
• Usable @ 200V: Not Usable at 200V
• Standards: CE; UL Listed
• Category: Motors/GearBox/Clutch
• Manufacturer: Century
• Hz: 60
• Motor Diameter: 6-1/2"
• Service Factor (SF): 1.35
• Bearings: Ball
• Maximum Ambient Temperature: 40 00b0 C
• Capacitor: 238MFD @ 125VAC (Included)
• Shaft Length: 2-1/16 in
