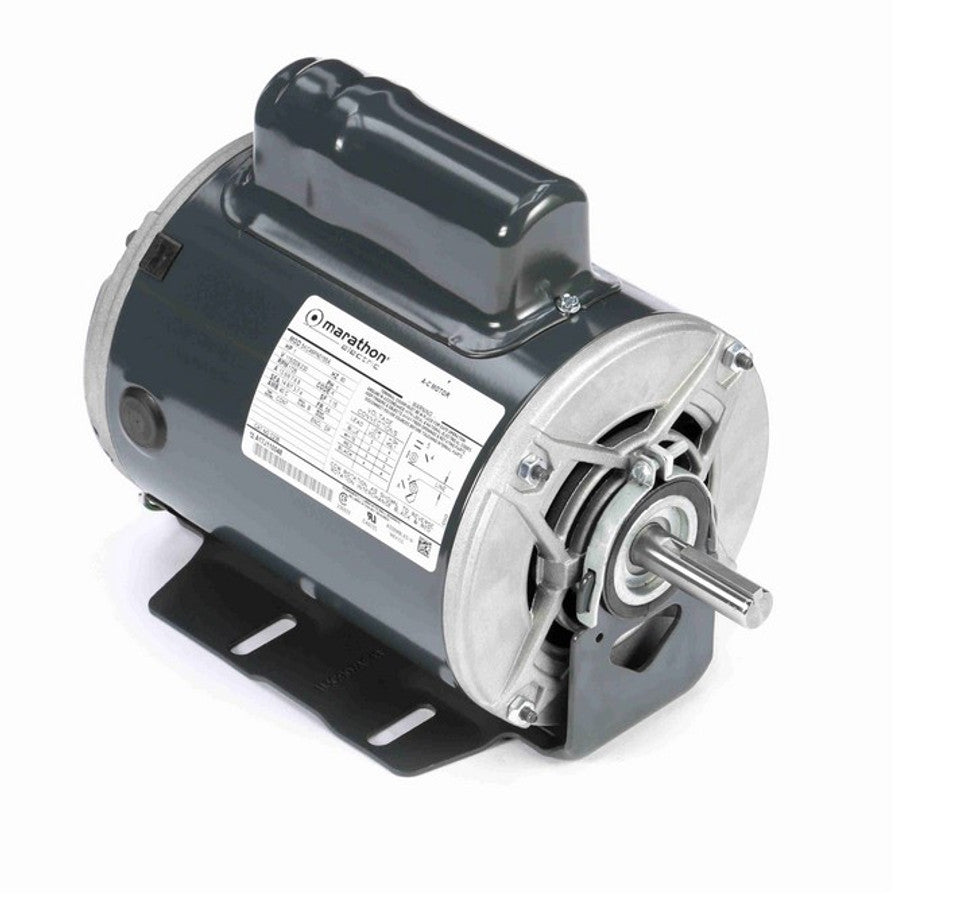

CENTURY MOTORS C235 Century/Marathon Electric Motor - 1 HP, 1800 RPM, 56 Frame, 115/208-230V

Product Description

The Century/Marathon C235 Electric Motor is designed for industrial and commercial use. It operates at 1 HP with a speed of 1800 RPM and supports voltages of 115/208-230V. This single-phase motor is suitable for various applications, ensuring consistent power delivery. The capacitor start feature enhances its efficiency and the reversible rotation allows for versatile installation. The robust rolled steel enclosure protects the internal components while providing longevity.

• 1 HP motor with 1800 RPM speed
• Capacitor start with reversible rotation
• UL recognized and CSA certified motor

Product Highlights

This electric motor features a resilient base to minimize vibration and a heavy-gauge steel frame for stability. It includes ball bearings and Class B insulation, which contribute to its durability and performance. The C235 is ideal for use with pumps and speed reducers, making it a reliable option for many trade professionals.

Product Information

Standard Information

• Brand: Century Motors
• Model Number: C235

Technical Specifications

• Phase: 1
• Output HP: 1 HP
• Voltage: 115/208-230 V
• Speed: 1725 RPM
• Service Factor: 1.15
• Frame: 56
• Enclosure: Open Drip Proof
• Current: 13.6 A, 6.7-6.8 A
• Insulation Class: B
• Weight: 25 lbs
• Dimensions: Length 14.50 inches, Width 8.10 inches, Height 10.60 inches
• Shaft Type: Keyed Shaft 1 7/8 x 5/8 Diameter
