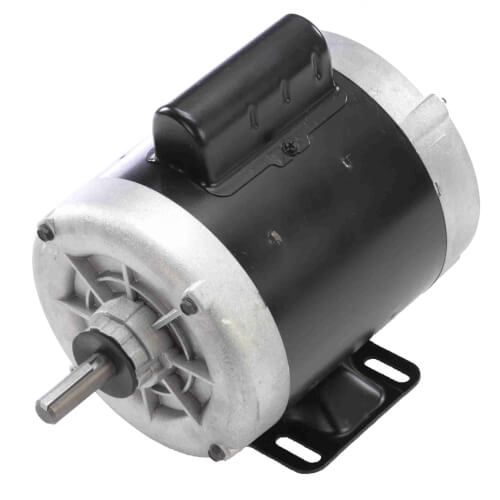

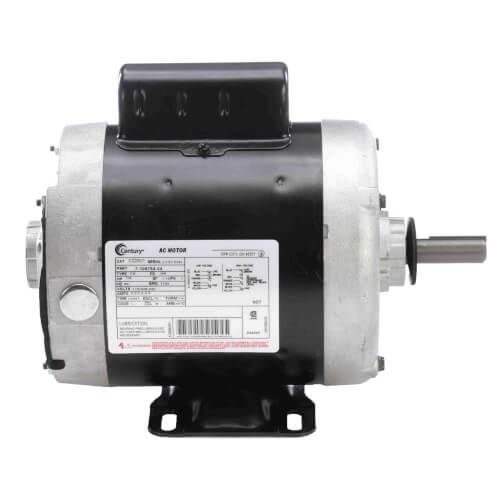

Century C220V1 1/3 HP 115/208-230v General Purpose Motor 1 PH 1800 RPM 56 Frame TENV

Product Description

The Century C220V1 is a one-third horsepower general purpose motor designed for HVAC systems. It operates at both 115 and 208-230 volts and has a speed of one thousand eight hundred RPM. This motor features a 56 frame and a totally enclosed non-ventilated design.

• One-third horsepower performance
• Compatible with various voltages: 115, 208, and 230
• Designed for continuous duty applications

Product Highlights

This general purpose motor is ideal for HVAC systems, pumps, fans, and other applications requiring reliable performance.

Product Information

Standard Information

• Brand: Century
• MPN: C220V1

Technical Specifications

• Voltage: 115/208-230v
• Horse Power: 1/3
• Rotation: RCW
• Amperage: 5.2, 2.6, 2.5, 5.2/2.5 - 2.6
• Frame: 56
• Enclosure Type: Totally Enclosed Non-Ventilated (TENV)
• Weight: 26.04 lbs
• Shipping Dimensions: 15 inches depth, 12 inches width, 12 inches height
• Max Ambient Temperature: 104°F
