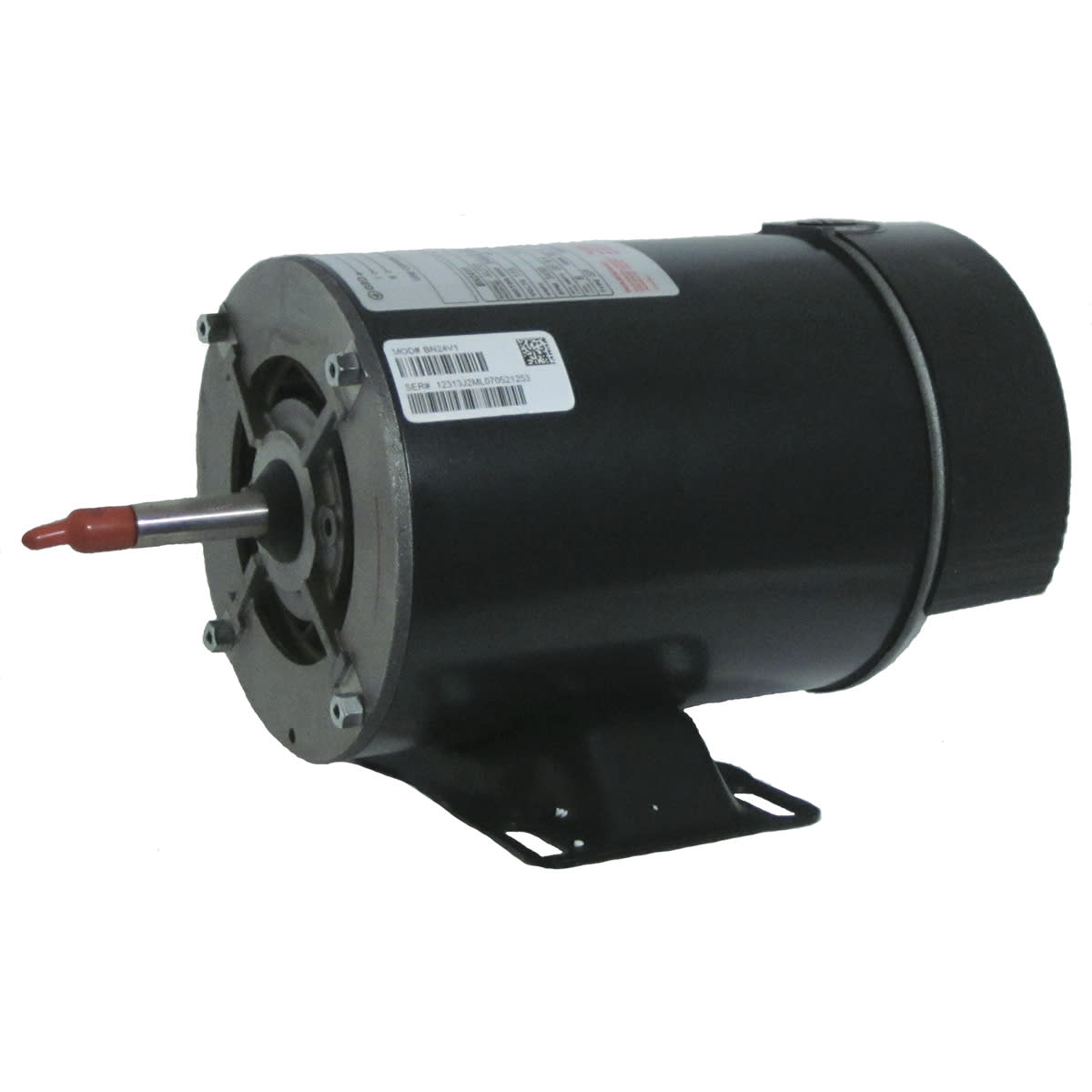

Century BN24V1 Pool Pump Motor 3/4HP 1-Speed 115V 3450RPM 48Y Frame

Product Description

The Century BN24V1 Pool Pump Motor is a robust and efficient motor designed for jetted tubs, spas, and above-ground pools. This motor features 3/4 horsepower and operates at a speed of 3450 RPM, ensuring optimal water circulation. Built to handle ambient temperatures up to 50 degrees Celsius and constructed with Class B insulation, this motor offers durability and reliable performance.

• 12 & 3 O'clock Conduit Entries
• Rotation: CCW Pump End
• 3-1/2 Shaft Height

Product Highlights

The Century BN24V1 Pool Pump Motor is perfect for use in pools and spas, providing consistent power and performance. The motor's threaded shaft allows for easy and direct mounting. Its durable design ensures long-lasting use even in demanding conditions.

Product Information

Standard Information

• Brand: Century
• MPN: BN24V1

Technical Specifications

• Horsepower: 3/4 HP
• Voltage: 115 V
• RPM: 3450
• Frame Size: 48Y
• Service Factor: 1
• Amps: 9.4
• Insulation Class: B
• Enclosure Type: Open Drip Proof (ODP)
• Shaft Height: 3-1/2 inches
• Thread Type: 3/8-16 UNC-2A RH
• Mounting Type: Thru Bolt
• Weight: 16.61 lbs
• Dimensions: Length 15.65 inches, Width 9.65 inches, Height 9.4 inches
