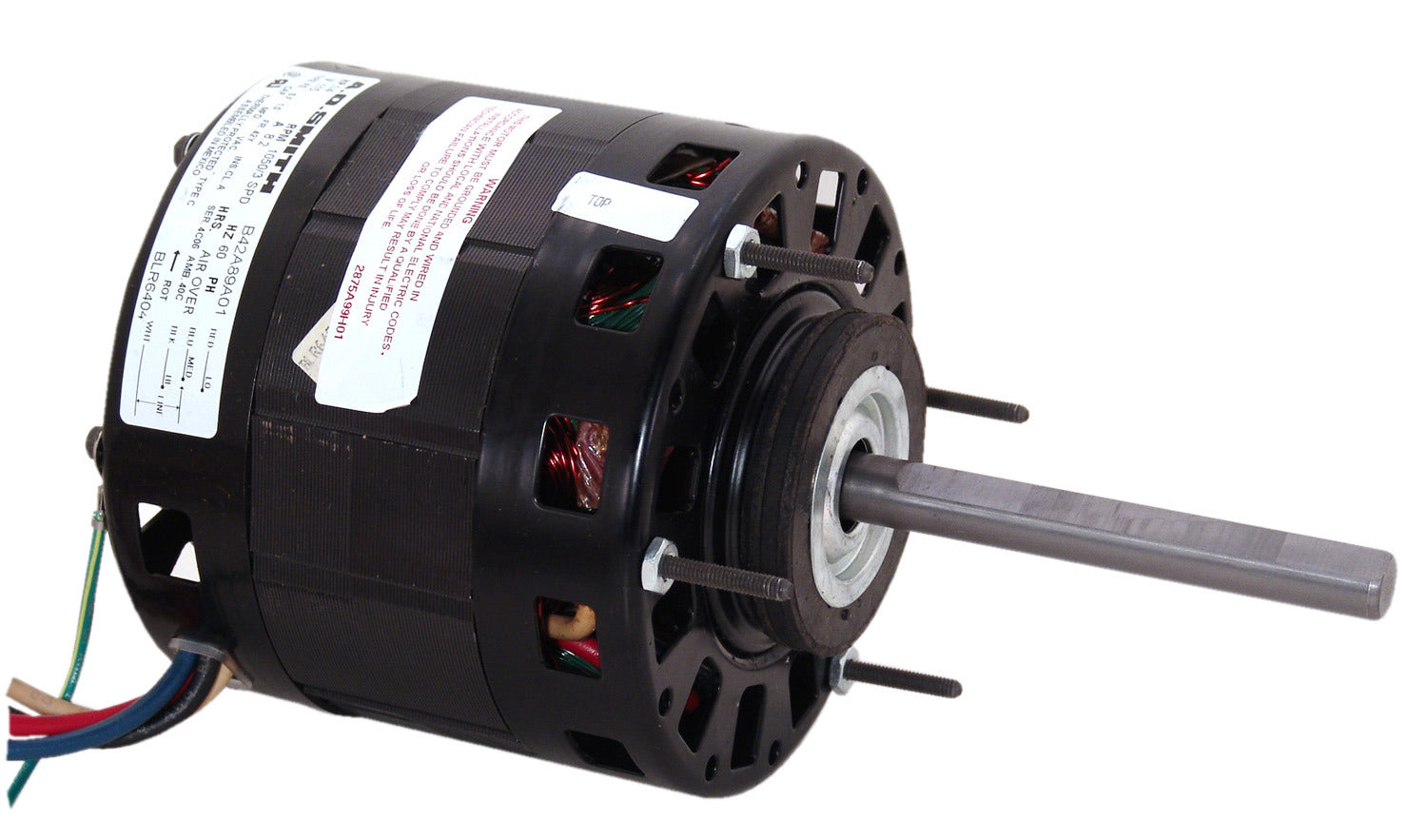

Century BLR640S Fan and Blower Motor 115V

Product Description

The Century BLR640S Fan and Blower Motor is a reliable HVAC motor. It operates at 1/4 HP with a 1050 RPM speed and is designed for single-phase applications at 115 volts. Ideal for various blower equipment and room air conditioners.

• 1/4 HP motor suitable for HVAC systems
• Single-phase, 115V with a rotation of CCWLE
• Sleeve bearing, shaded pole motor

Product Highlights

This motor features an open air-over design and is constructed from rolled steel. The motor is compatible with various HVAC equipment and comes with a resilient mounting ring.

Product Information

Standard Information

• Brand: Century
• MPN: BLR640S
• UPC: 7.87E+11
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Shaded Pole
• HP: 1/4
• KW: 0.19
• RPM: 1050
• Frame: 42Y
• Enclosure: OAO
• Phase: Single
• Voltage: 115
• Rotation: CCWLE
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Mounting: Extended Studs
• Orientation: Horizontal
• Amperage: 9.4
• Shaft Type: Flat
• Shaft Extension: 4.500 inches
• Shaft Diameter: 0.500 inches
• Mounting Type: Stud
• Ins. Class: B
• Max. Ambient Temp.: 40 degrees C
• Service Factor: 1
• Speeds: 1
• Application: Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers
