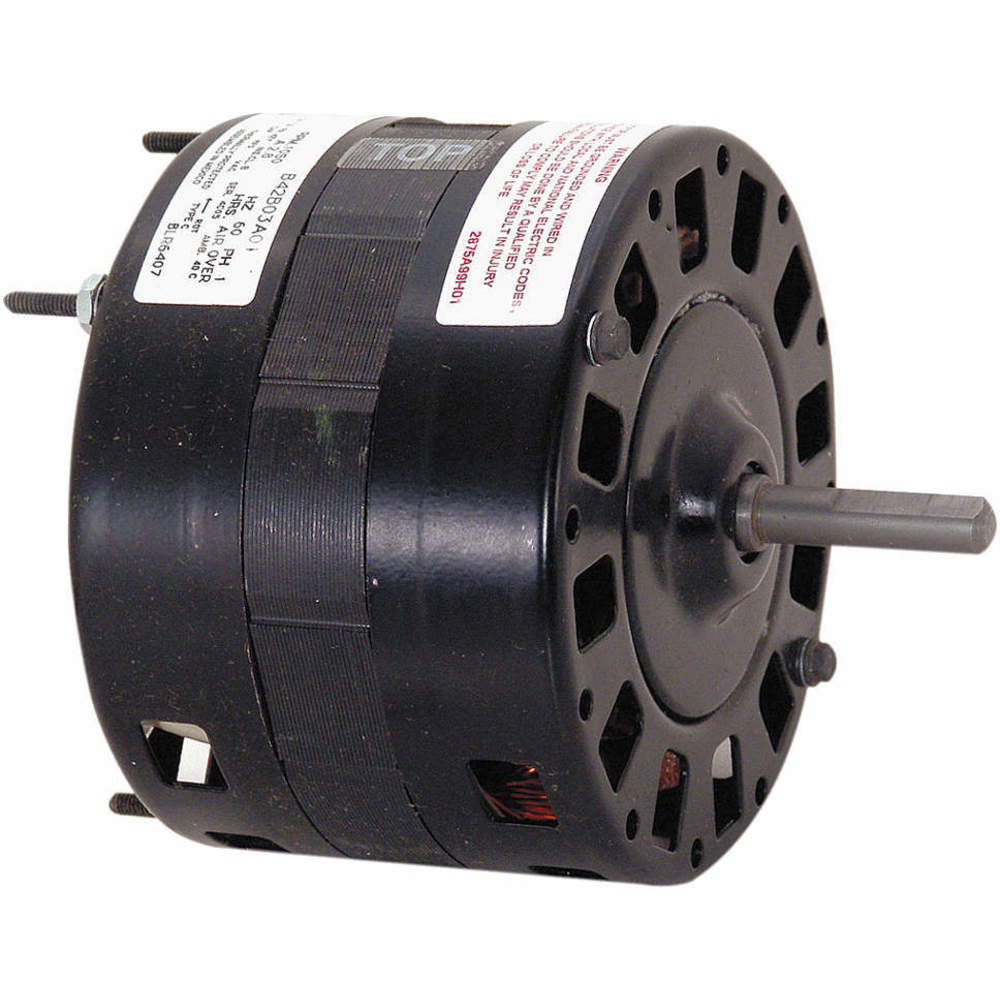

Century Motors BLR6406V1 Fan and Blower Motor 1/10 HP

Product Description

The Century Motors BLR6406V1 fan and blower motor is a 1/10 HP, 115V, 1050 RPM motor with a 42 frame and open air over enclosure. Designed for furnace blowers, attic ventilators, air handlers and fan coil motor applications. Features include thermal protection and class B insulation. This motor delivers long-lasting performance and energy efficiency.

• Thermally Protected
• Class B Insulation, 40°C Ambient
• Sleeve Bearing

Product Highlights

Reliable and efficient, the Century Motors BLR6406V1 is ideal for HVAC systems, offering easy integration and a compact, high-performance design.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: BLR6406V1
• Country of Origin: MX

Technical Specifications

• Phase: 1
• Output HP: 1/10 Hp
• Output KW: 0.07 kW
• Voltage: 115 V
• Speed: 1050 rpm
• Service Factor: 1.0
• Frame: 42Y
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 4.0 A
• Duty: Air Over
• Insulation Class: B
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 6
• Rotation: Counterclockwise Lead End
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Shaft Type: Flat
• Overall Length: 6.35 in
• Shaft Diameter: 0.375 in
• Shaft Extension: 1.9 in
• Bearing Type: Sleeve
• Body Dia.: 5"
• Bolt Circle Dia.: 4 7/16"
• Capacitor Included: No
• Capacitor Required: No
• Duty Cycle: Continuous
• Full Load Amps: 4A
• Full Load Efficiency: 36%
• Lead Length: 20"
• Length Less Shaft: 4 1/8"
• Max. Ambient Temp.: 40°C
• Motor Application: HVAC/R
• Motor Bearings: Sleeve
• Motor Design: Shaded Pole
• Motor Enclosure Design: Open Air Over
• Motor Frame Material: Steel
• Motor Mounting Position: Horizontal
• Motor Mounting Type: Ring, Stud
• Motor Service Factor: 1
• Motor Shaft Design: Flat
• Motor Shaft Rotation: Counter Clockwise Lead End
• Motor Sub Application: Direct Drive Fan/Blower
• Motor Thermal Protection: Auto
• Motor Type: Shaded Pole
• Stud Length: 5/8"
• Stud Location: Opposite Shaft End
• Stud Pattern: 4 27/64"
• Stud Size: #8-32
• Standards: CSA (LR43341), UL (E46412)
• Rated Motor Output Power: 1/10 HP
• Rated Motor Speed: 1050 RPM
• Rated Motor Voltage: 115V
• Rated Motor Current: 4 AMP
• Item Number: BLR6406V1
• Brand: Regal Rexnord - Century Motors
