Product Description

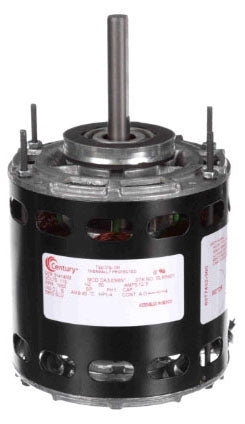

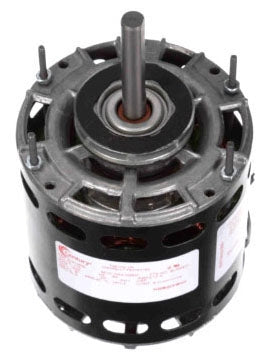

The Century BLR6401 Fan and Blower Motor is designed for reliable performance in HVAC systems. With 1/4 HP and 115V, it operates at a speed of 1050 RPM, making it suitable for various industrial applications. Built with class B insulation and a durable rolled steel frame, this motor is equipped to handle demanding environments.
- Resilient ring mount for secure installation
- Sleeve bearings for smooth operation
- Horizontal orientation for versatile mounting
Product Highlights
Ideal for furnace blowers, attic ventilators, air handlers, and fan coil motors, the Century BLR6401 ensures efficient and dependable operation. It includes features such as automatic thermal protection and continuous duty capabilities.
Product Information
Standard Information
-
Power Rating: 1/4 HP
-
Voltage Rating: 115 Volt AC 1-Phase
Technical Specifications
-
Speed: 1050 RPM
-
Frame Size: NEMA 42Y
-
Insulation Class: B
-
Mounting: Resilient Ring
-
Weight: 12 pounds
-
Dimensions: 5 inches diameter x 8.13 inches length
-
Shaft Size: 0.5 inches diameter x 3.1 inches length (extension)
-
Ambient Temperature Rating: 40 degrees Celsius
