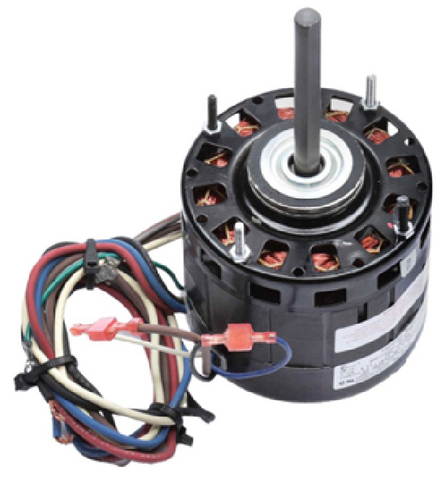

Century Motors BL6530A Motor 1/3 HP 115V 3-Speed 42 Frame

Product Description

The Century Motors BL6530A motor ensures reliable performance for HVAC, appliance, or industrial equipment. This 1/3 HP, 115V motor delivers efficient and durable operation, making it an ideal replacement for compatible systems. It provides consistent operation for fans, blowers, and other motor-driven equipment.

• Three-speed operation allows flexible performance adjustments.
• High-quality construction ensures quiet, efficient, and long-lasting performance.
• OEM-grade replacement for seamless compatibility.

Product Highlights

The Century Motors BL6530A is suitable for furnace blowers, air handlers, fan coils, and air conditioning motors.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: BL6530A

Technical Specifications

• Brand: Century Motors (Regal Rexnord)
• SKU/Model: BL6530A
• Horsepower: 1/3 HP
• Voltage: 115 V
• Phase: 1
• Speed: 3-Speed
• Frame: 42Y
• RPM: 1075 rpm
• Current: 6.3 A
• Shaft Diameter: 0.500 in
• Output HP: 1/3 Hp
• Output KW: 0.25 kW
• Service Factor: 1.0
• Enclosure: Semi Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Resilient Rings
• Motor Orientation: Horizontal
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Shaft Type: Flat
• Overall Length: 9.29 in
• Shaft Extension: 4.7 in
