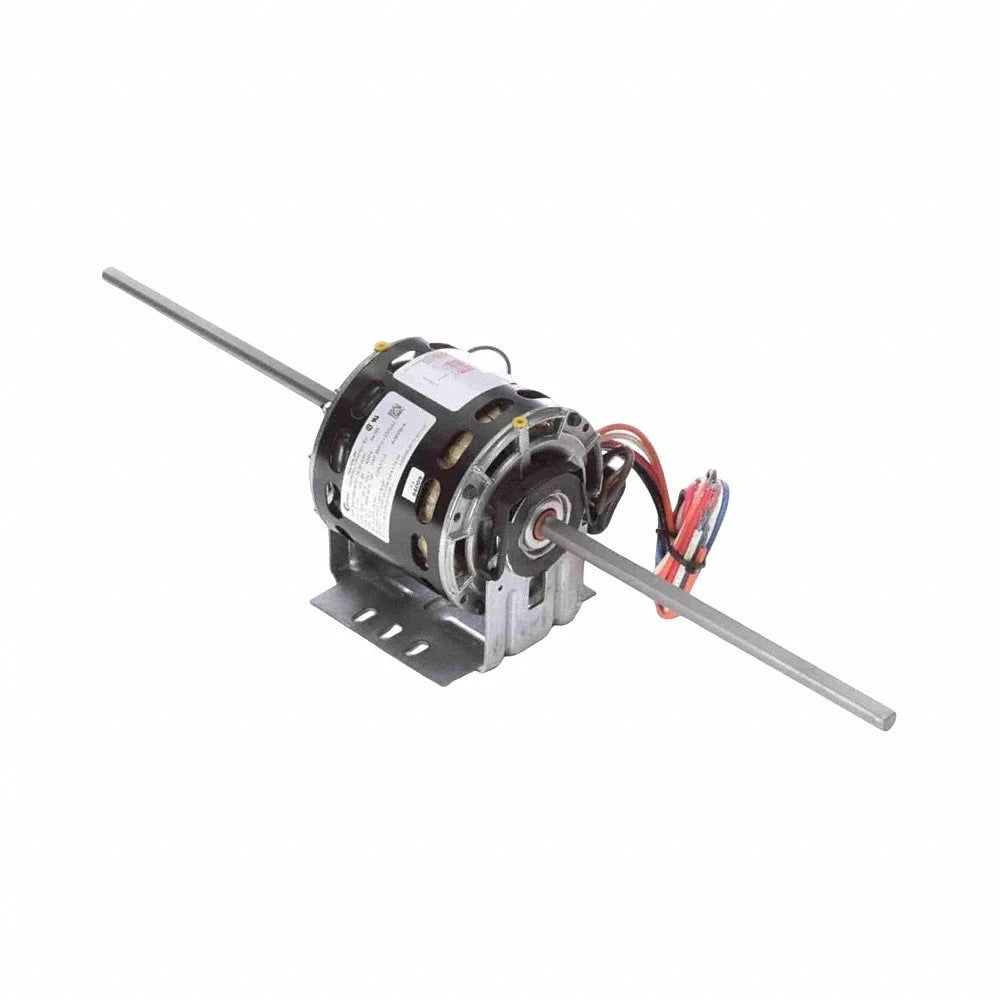

Century Motors BL6519V1A Fan and Blower Motor 1/4 1/5 1/6 HP 115 V

Product Description

The Century Motors BL6519V1A is a reliable fan and blower motor designed for various applications including furnace blowers, air handlers, fan coils, and air conditioning systems. This motor operates at a voltage of one hundred fifteen volts and is suitable for different horsepower ratings: one-quarter, one-fifth, and one-sixth HP. The three-speed functionality allows for flexible use in different environments.

• Permanent Split Capacitor (PSC) design
• Includes automatic thermal protection
• Open air over enclosure for efficient cooling

Product Highlights

The BL6519V1A is thermally protected and designed for effective operation in challenging conditions.

Product Information

Standard Information

• Brand: Century Motors
• MPN: BL6519V1A

Technical Specifications

• Phase: 1
• Output HP: 1/4, 1/5, 1/6 hp
• Voltage: 115 V
• Speed: 1075 rpm
• Service Factor: 1.0
• Frame: 42Y
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 4.7 A
• Duty: Air Over
• Insulation Class: B
• UL Recognized: Yes
• CSA Approved: Y
• CE Approved: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Shaft Type: Flat
• Overall Length: 9.83 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.7 in
• Item: Direct Drive Blower Motor
• Body Diameter: 5 in
• Usable at 208V: Not Usable
• Motor Shaft Rotation: CW/CCW
• Shaft Length: 4-11/16 in
• Length Less Shaft: 4-13/16 in
• Mounting Type: Resilient Ring
• Capacitor Required: Not Included
• Application: Fan/Blower
• Manufacturer's Warranty: 2 years
• Output KW: 0.19 kW
• Weight: 11 lbs
