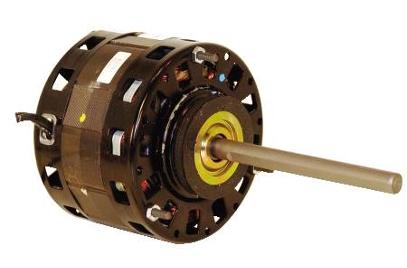

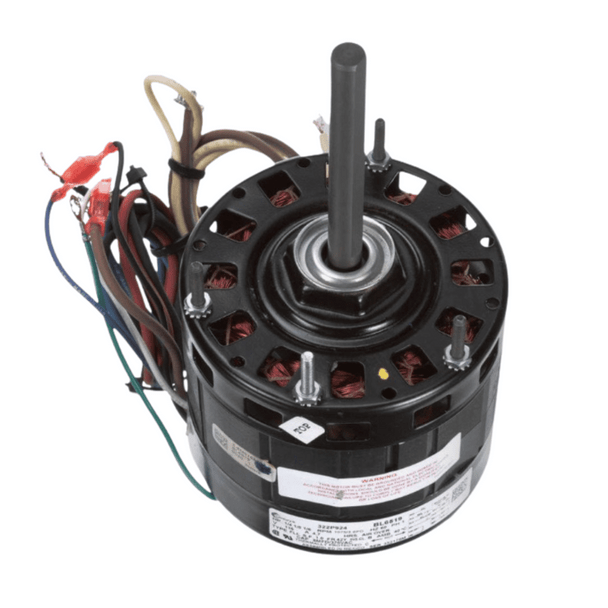

Century Motors BL6519A Fan and Blower Motor 1/4, 1/5, 1/6 HP 42 Frame

Product Description

The Century Motors BL6519A is a reliable fan and blower motor suitable for various applications including furnace blowers, air handlers, fan coils, and air conditioning units. With a diameter of 5 inches and designed for a 42 frame, this motor operates on a voltage of 115 V. It requires a separate 5 Mfd-370 Volts capacitor which is not included. The motor features Class B insulation and is designed with thermal protection for safety.

• Permanent Split Capacitor (PSC) design
• Thermally protected for safety
• Ball bearing construction

Product Highlights

This motor is effective for a range of HVAC systems, ensuring optimal operation with its robust construction and efficient design.

Product Information

Standard Information

• Brand: Century Motors
• MPN: BL6519A

Technical Specifications

• Phase: 1
• Output HP: 1/4, 1/5, 1/6 HP
• Voltage: 115 V
• Speed: 1075 rpm
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 4.7, 3.4, 2.8 A
• Duty: Air Over
• Insulation Class: B
• UL Certified: Yes
• CSA Certified: Yes
• CE Certified: No
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.7 inches
• Packaged Length: 10.13 inches
• Packaged Width: 5.25 inches
• Packaged Height: 5.25 inches
• Motor Orientation: Horizontal
• Overall Length: 9.83 inches
• Agency Certification: UR/CSA
• Efficiency: 65%
