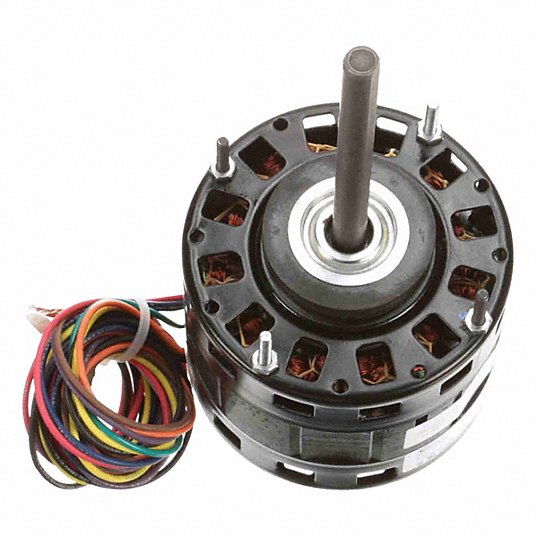

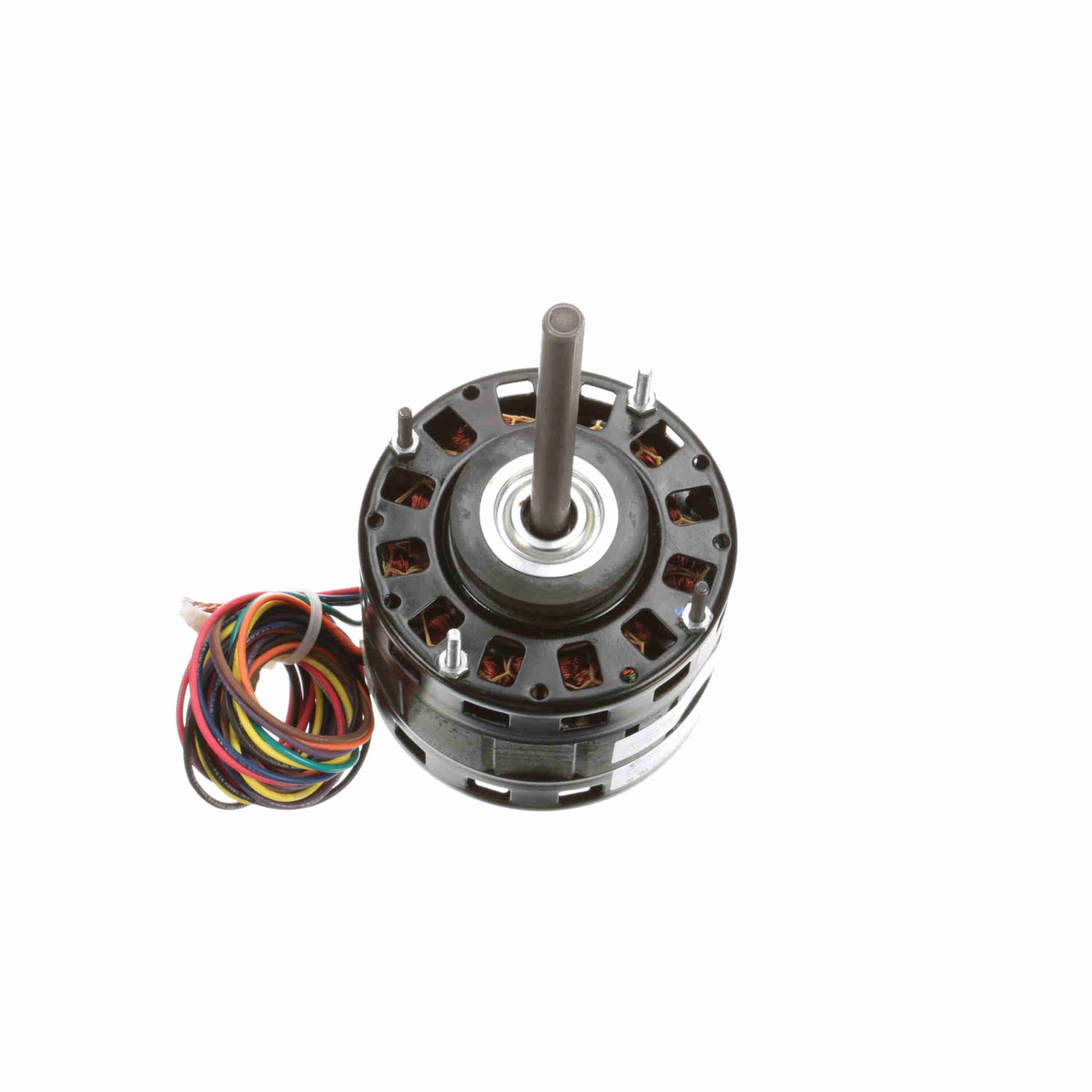

Century Motors BL6505V1A Fan and Blower Motor 1/5,1/8,1/10 HP REPLACEMENT BL6505V1

Product Description

The Century Motors BL6505V1A fan and blower motor is suitable for various applications including furnaces, air handlers, fan coils, and air conditioning systems. This motor features permanent split capacitor technology that ensures efficiency and smooth operation at 115 volts. It runs at 1,075 RPM and offers three distinct speed settings. The motor is equipped with thermal protection and has class B insulation, making it suitable for ambient temperatures up to 40 degrees Celsius.

• Permanent Split Capacitor (PSC) design
• Thermally protected with Open Air Over enclosure
• Ball bearing with a half-inch diameter shaft

Product Highlights

This motor provides reliable performance for HVAC applications and is designed for easy installation and maintenance.

Product Information

Standard Information

• Brand: Century Motors
• MPN: BL6505V1A

Technical Specifications

• Phase: 1
• Output HP: 1/5, 1/8, 1/10
• Voltage: 115 V
• Speed: 1075 RPM
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: Up to 40 degrees Celsius
• Current: 3.3, 2.2, 1.7 A
• Duty: Air Over
• Insulation Class: B
• Number of Speeds: 3
• Motor Application: Air Conditioning, Fan Coil, Furnace Blower
• Shaft Type: Flat
• Overall Length: 10.1875 inches
