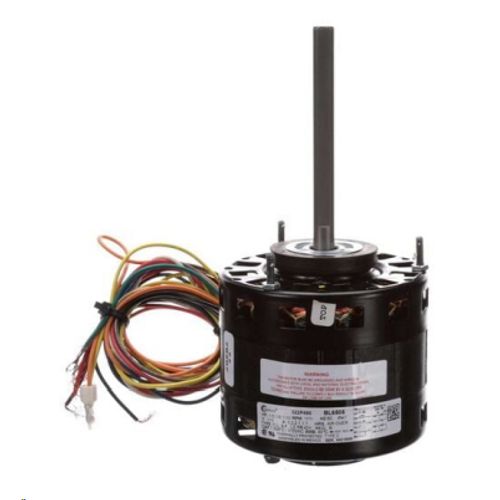

CENTURY MOTORS BL6505A 3-Speed Single Shaft Open Fan/Blower Motor 1/5, 1/8, 1/10 HP

Product Description

The Century Motors BL6505A is a 3-speed single shaft open fan and blower motor. This motor operates at 115 volts and 1075 RPM, delivering power options of 1/5, 1/8, and 1/10 horsepower. It features a five-inch diameter frame designed for air-over applications, ensuring efficient performance across various settings. The motor comes equipped with thermal protection and a class B insulation rating for reliable operation.

• Operates at 115V and 1075 RPM
• Includes ball bearings and a half-inch diameter flat shaft
• Designed for air-over applications with automatic overload protection

Product Highlights

This fan and blower motor is versatile and suitable for various air-moving applications, making it a valuable component in HVAC systems and ventilation setups.

Product Information

Standard Information

• Frame: 42Y
• Duty: Air Over

Technical Specifications

• RPM: 1075
• Insulation Class: B
• Poles: 6
• Rotation: Reversible
• Diameter: 4.875 inches
• Bearings: Ball
• Overload Protection: Automatic
• Voltage: 115V
• Amperage: 1.7, 2.1, 3.2
• Max Ambient Temperature: 104 °F
• Hertz: 60
• Phase: 1
• Orientation: Horizontal
• Enclosure Type: Open Air Over
• Mount: Resilient Rings
• Speeds: 3
• Service Factor: 1.0
• Thermal Protection: Automatic
• Frequency: 60 Hz
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 4.08 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 5.5 inches
• Output Horse Power: 1/5, 1/8, 1/10
• Number of Speeds: 3
