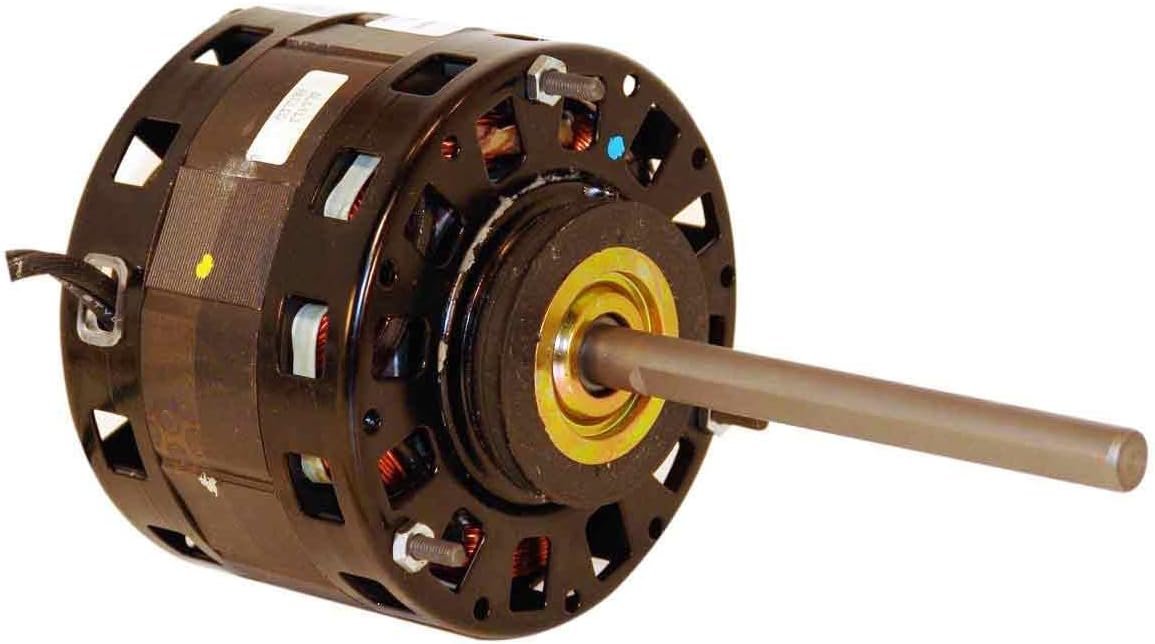

Century BL6413 Blower Motor 1/5HP 1050RPM 115V 6A Sleeve Bearing

Product Description

The Century BL6413 Blower Motor is designed for efficient performance in various applications. It is a single-phase, shaded pole motor with a power rating of 1/5HP, operating at 1050RPM and 115V. The motor includes a 5.0-inch frame diameter and features a sleeve bearing for smooth operation. It is built with a resilient ring mounting system for easy installation in your equipment.

• 1050 RPM speed
• 1/5HP power output
• 115V voltage

Product Highlights

This Century BL6413 motor offers reliable performance in industrial and commercial applications. It is designed for single-phase operation and features an open air-over enclosure for enhanced cooling. The motor’s horizontal mounting orientation and automatic thermal overload protection ensure longevity and reduced maintenance.

Product Information

Standard Information

• Brand: Century
• Model: BL6413
• Category: Fan Motors

Technical Specifications

• Speed: 1050 RPM
• Voltage: 115 Volts
• Horsepower: 1/5 HP
• Amperage: 6.0 A
• Frame Size: 42Y
• Mounting Type: Resilient Ring
• Rotation: Counterclockwise Lead End (CCWLE)
• Bearings: Sleeve
• Enclosure: Open Air Over
• Phase: Single
• Material: Rolled Steel
• Shaft Diameter: 0.500 inches
• Shaft Extension: 5.500 inches
• Insulation Class: A
• Service Factor: 1.0
• Hertz: 60 Hz
• Poles: 6
• Max Ambient Temperature: 104°F
• Thermal Protection: Automatic
