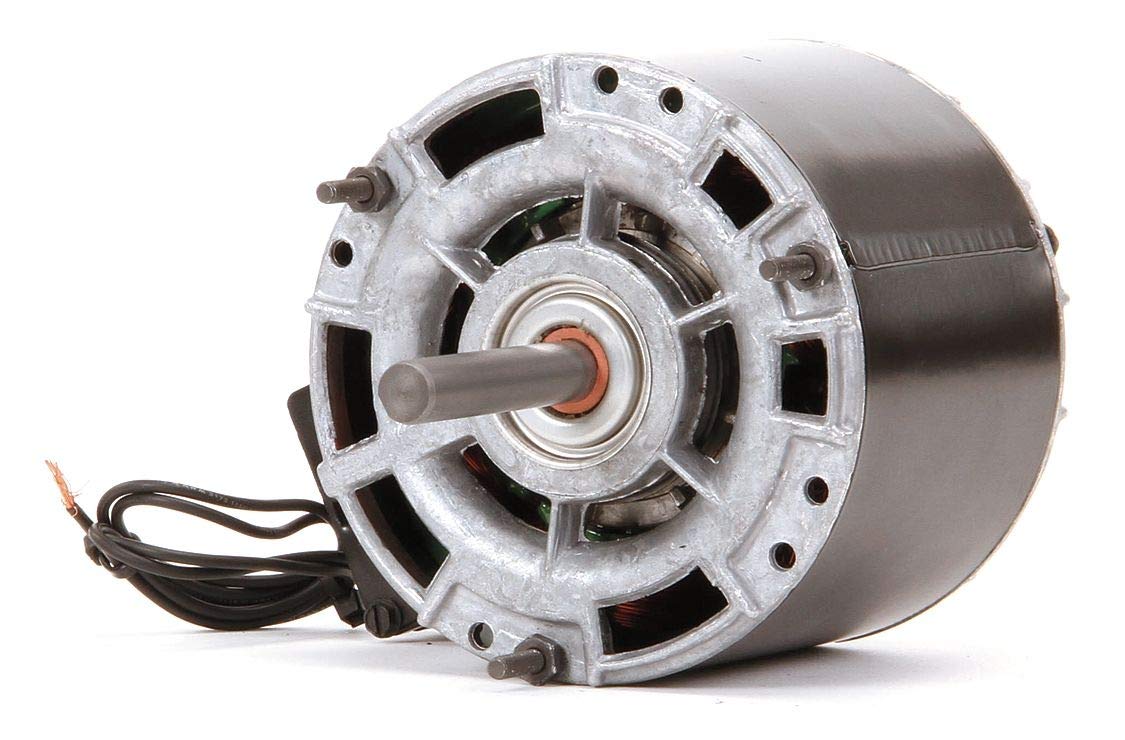

Century BL6411 Motor 1/6 HP 1000 RPM

Product Description

The Century BL6411 Motor is designed for HVAC and refrigeration applications. This motor is a shaded pole type with an output of one sixth horsepower and a speed of one thousand RPM. It operates at one hundred fifteen volts and has a full load amperage of five point seven. The motor is suitable for applications such as furnace blowers and air circulators.

• Motor Type: Shaded Pole
• Continuous Duty Rating
• Open Air-Over Enclosure

Product Highlights

This motor is effective in air over applications, ensuring stable performance across various environments.

Product Information

Standard Information

• Brand: Century
• Model Number: BL6411

Technical Specifications

• Horse Power: 1/6
• Nameplate RPM: 1000
• Voltage: 115
• Full Load Amps: 5.7
• Hz: 60
• Frame: 42Y
• Service Factor: 1.0
• Max Ambient Temp: 40 Degrees C
• Insulation Class: B
• Duty: Continuous Air Over
• Mounting: Stud
• Shaft Orientation: Horizontal
• Bearings: Sleeve
• Rotation: CCWLE
