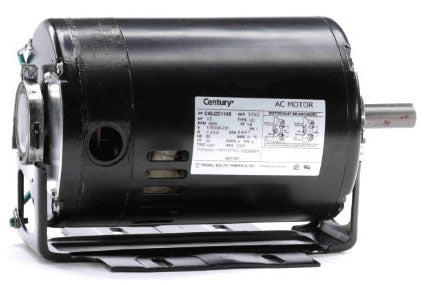

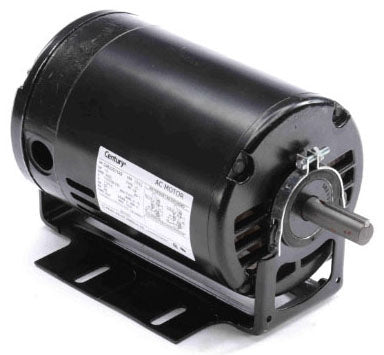

Century BK1052 Cap Start Resilient Base Motor 1/2 HP 3450 RPM 115/208-230 Volt

Product Description

The Century BK1052 is a standard capacitor start fan and blower motor. This motor has a power rating of one-half horsepower and operates at 115/208 to 230 volts AC with a frequency of sixty Hertz. The unit features a resilient base mount and is designed with a NEMA frame size of fifty-six. The motor is suitable for various applications such as compressors, pumps, conveyors, and fans.

• Power Rating: 1/2 HP
• Speed Rating: 3450 RPM
• Reversible operation

Product Highlights

This motor offers versatility and efficiency. With its open drip-proof enclosure and resilient mounting, it is built for durability and reliability in demanding environments.

Product Information

Standard Information

• Brand: Century
• MPN: BK1052

Technical Specifications

• Voltage Rating: 115/208 to 230 Volt AC 1-Phase
• Motor FLA: 9.4/4.7 Amp
• Number of Speeds: 1 or 2
• NEMA Frame Size: 56
• Insulation Class: A
• Weight: 18 Pound
• Applications: Compressor, Pump, Conveyor, Milking Machines, Blower, Fan
• Approval: UL, CSA
• Starting Method: Across the Line
• Overall Length: 10.94 Inch
• Shaft Size: 0.875 Inch Diameter x 1.937 Inch Length
