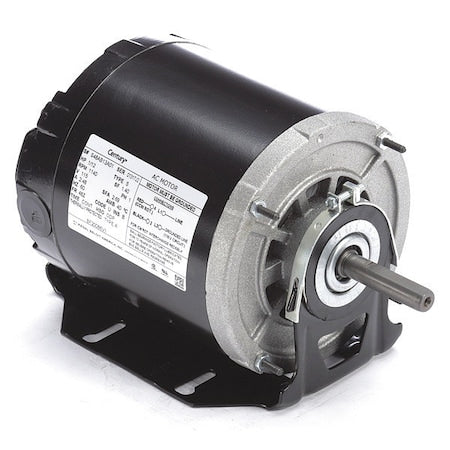

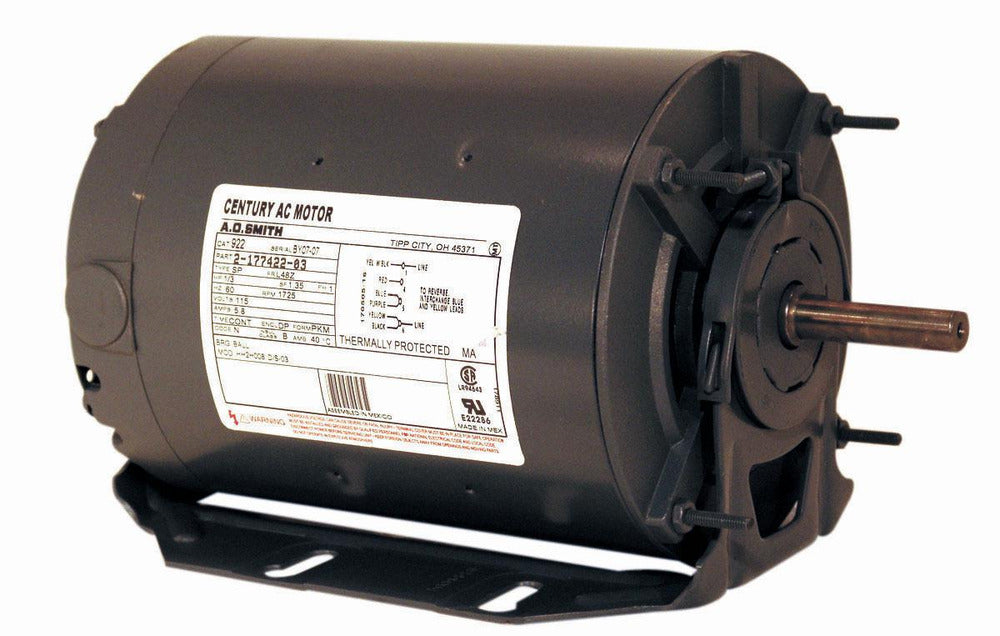

Century BF20086V1 Fan and Blower Motor Split Phase 1/12 HP 115V 48Z Frame

Product Description

The Century BF20086V1 Fan and Blower Motor is designed for HVAC systems. It is a Split Phase motor with a 1/12 horsepower and operates at 115 volts. The motor has an open drip-proof (ODP) enclosure and a 48Z frame.

• Split Phase Electrical Type
• 1/12 horsepower
• 115 volts, 1 phase

Product Highlights

This motor is commonly used in HVAC fan and blower applications. It offers reliable performance with a maximum ambient temperature of 40 degrees Celsius and continuous duty cycle. The motor features automatic overload protection and a resilient base mounting.

Product Information

Standard Information

• Brand: Century
• MPN: BF20086V1
• Application: HVAC fan and blower

Technical Specifications

• Electrical Type: Split Phase
• Horsepower: 1/12
• RPM: 1140
• Frame: 48Z
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115
• Rotation: Reverse
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings: Ball/Ball
• Mounting: Resilient Base
• Amperage: 2.48
• Shaft Type: Flat
• Shaft Extension: 2 inches
• Shaft Diameter: 0.5 inches
• Insulation Class: B
• Service Factor: 1.4
• Mounting Position: All Angle
