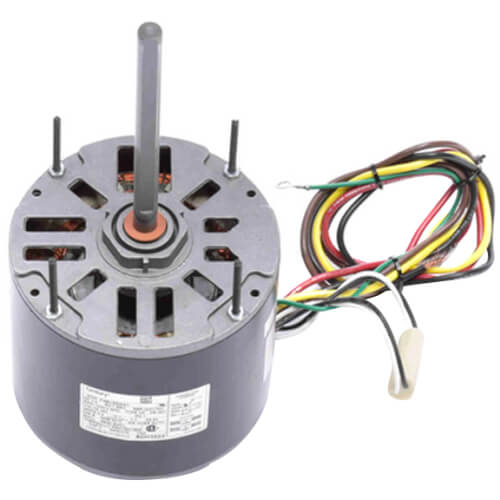

Century BDH1024 1/4~1/6 HP 1625 RPM 2 Speed 460V 48 Frame Motor

Product Description

The Century BDH1024 motor provides a reliable solution for various industrial applications. Operating at 1625 RPM, this 460V motor offers versatile performance with its 2-speed configuration.

• 1/4~1/6 HP
• 1625 RPM
• 460 Volts

Product Highlights

This motor includes a reversible design and is suitable for a wide range of industrial uses, including manufacturing, HVAC systems, and material handling.

Product Information

Standard Information

• Brand: Century
• MPN: BDH1024
• UPC: 786674013576
• Country of Origin: Mexico

Technical Specifications

• Power: 1/4~1/6 HP
• Speed: 1625 RPM
• Voltage: 460V
• Amperage: 0.9-0.7 Amps
• Frame: 48Y
• Enclosure: Semi-Enclosed
• Phase: Single
• Bearings: Ball
• Rotation: Reversible
• Mounting: Extended Studs
• Ambient Temperature: 60°C
• Overload Protection: Automatic
• Duty: Continuous, Air Over
• Diameter: 5.6 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.400 inches
• Insulation Class: B
• Poles: 4
• Speeds: 2
