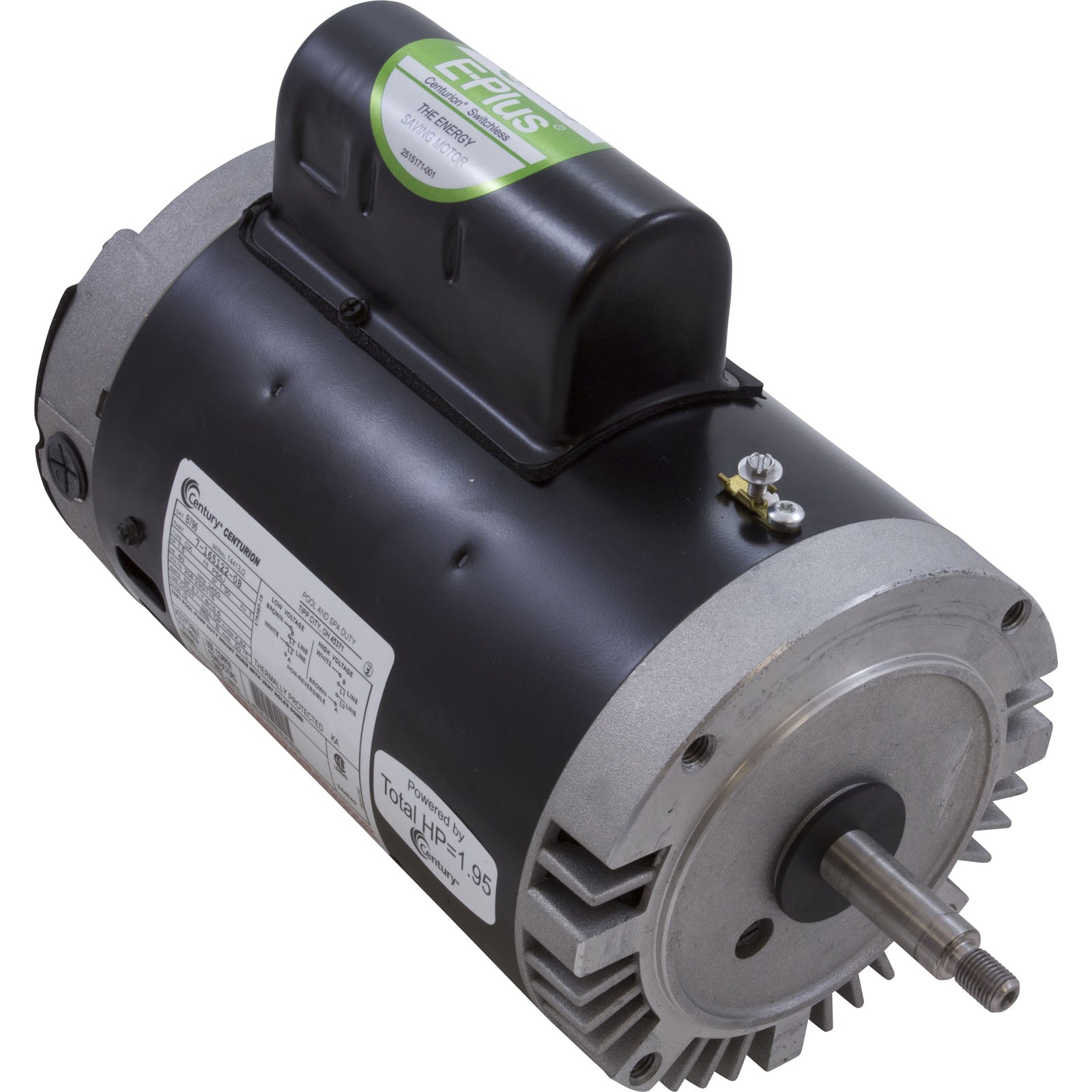

Century B796 Pool Pump Motor Permanent Split Capacitor 1.5 HP 56J Frame 3450 RPM

Product Description

The Century B796 Pool Pump Motor is a high-efficiency motor designed for pool and spa applications. It runs at 1.5 horsepower with a 56J frame and operates at 3,450 RPM, ensuring robust performance. This motor is ideal for professionals seeking a reliable and energy-efficient option for pool maintenance.

• 1.5 horsepower
• 56J frame
• 3,450 RPM

Product Highlights

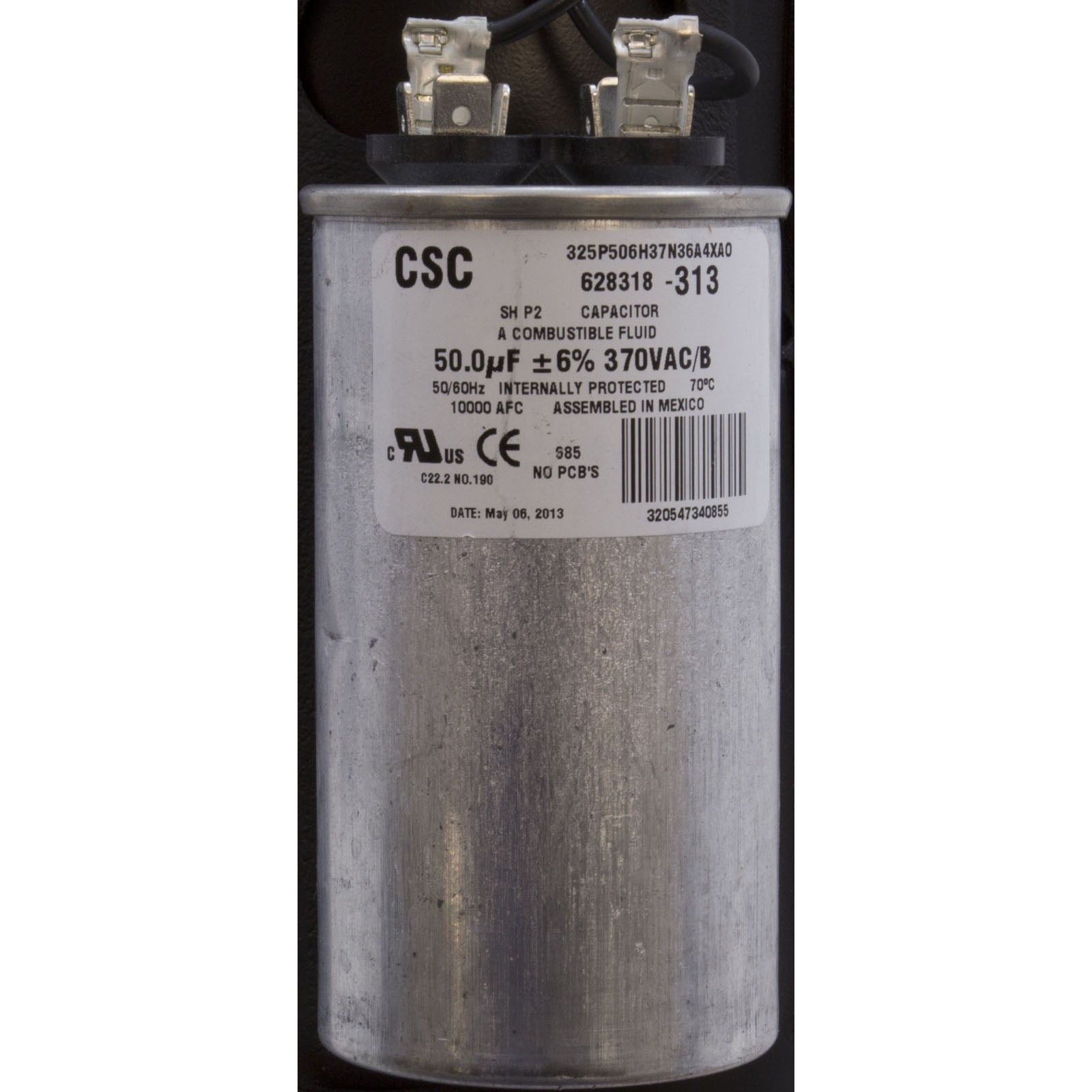

This motor features a permanent split capacitor, enhancing energy efficiency and durability. It operates on 115/208-230V AC, making it versatile for various electrical settings. The open drip-proof design and ball bearings ensure smooth operation and longevity.

Product Information

Standard Information

• Brand: Century
• Model: B796
• Horsepower: 1.5 HP
• Frame: 56J
• RPM: 3,450

Technical Specifications

• Voltage: 115/208-230V AC
• Full Load Amps: 8.7-7.8/15.6
• Duty Cycle: Continuous
• Enclosure Design: Open Dripproof
• Insulation Class: B
• Max. Ambient Temperature: 50 Degrees C
• Shaft Diameter: 5/8 in
• Shaft Length: 2.5 in
• Overall Length: 13 9/16 in
• Motor Bearings: Ball
