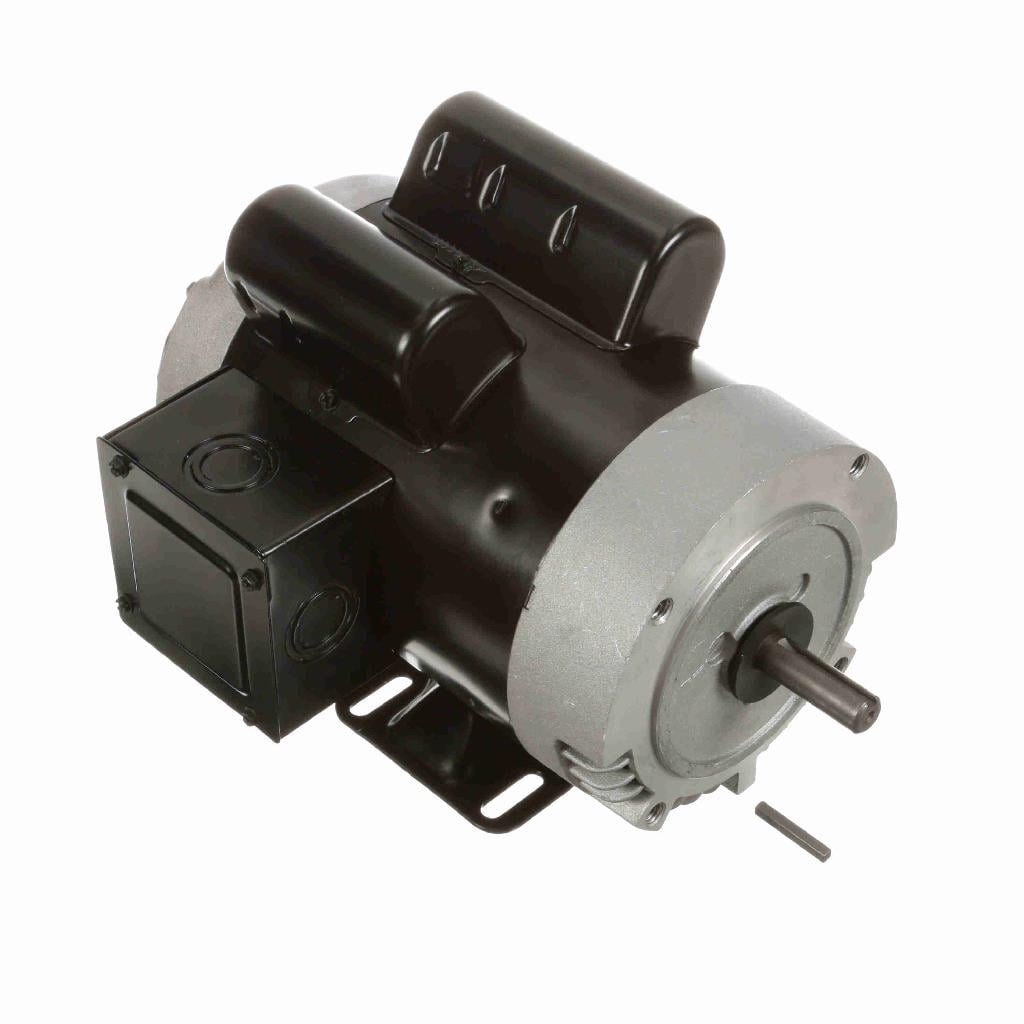

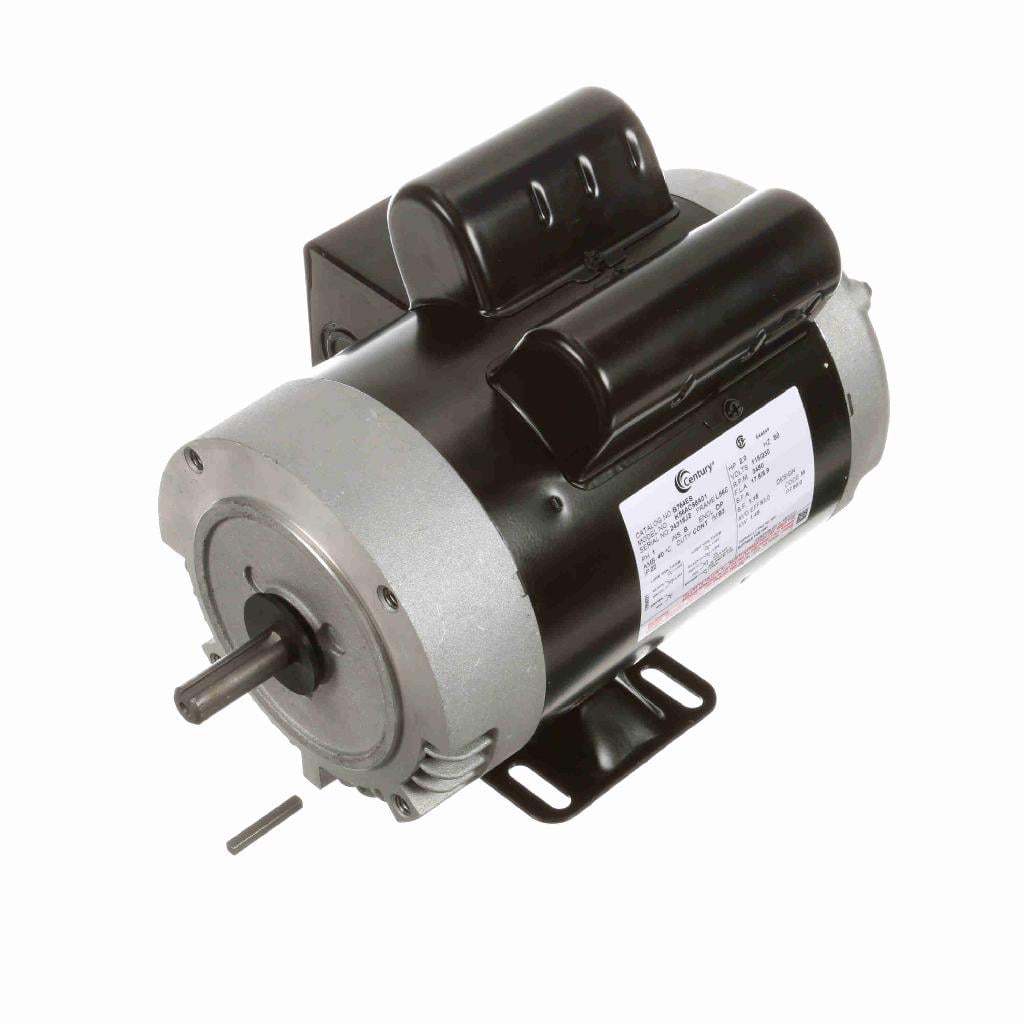

Century Motors B764ES General Purpose Motor 2.0 HP 115/230 V L56C Frame

Product Description

The CENTURY MOTORS B764ES is a general purpose motor with 2.0 HP, designed for a variety of applications. It operates at 115/230V and 60 Hz, with a speed of 3450 RPM. The motor features a L56C frame and a drip proof enclosure. It is thermally protected and has an efficiency rating of 83.0%.

• UL recognized component listing and CSA certification ensures product safety.
• Premium efficiency promotes improved reliability.
• Heavy-duty, rolled steel construction ensures motor durability.

Product Highlights

This motor is suitable for continuous duty applications requiring a reliable power source. Its robust construction and thermal protection ensure long-lasting performance.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: B764ES
• Country of Origin: Mexico

Technical Specifications

• MPN: B764ES
• Brand: CENTURY MOTORS
• Phase: 1
• Output HP: 2.0 Hp
• Output KW: 1.5 kW
• Voltage: 115/230 V
• Speed: 3450 rpm
• Service Factor: 1.15
• Frame: L56C
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Efficiency: 83.0 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 17.8/8.9 A
• Duty: Continuous
• Insulation Class: B
• Number of Speeds: 1
• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 2
• Rotation: Reversible Counterclockwise
• Mounting: Rigid Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 12.70 in
• Frame Length: 7.25 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1.88 in
• Enclosure Material: Rolled Steel
• Enclosure Type: ODP (Open Dripproof)
• Maximum Ambient Temperature: 40° C
• Reversible/Non-Reversible: Reversible
• Current Type: AC
• Model: B764ES
• Nominal Rated Input Voltage: 115 V, 230 V
• NEMA Frame Suffix: C
• AC Phase: Single Phase
• Base RPM: 3600
