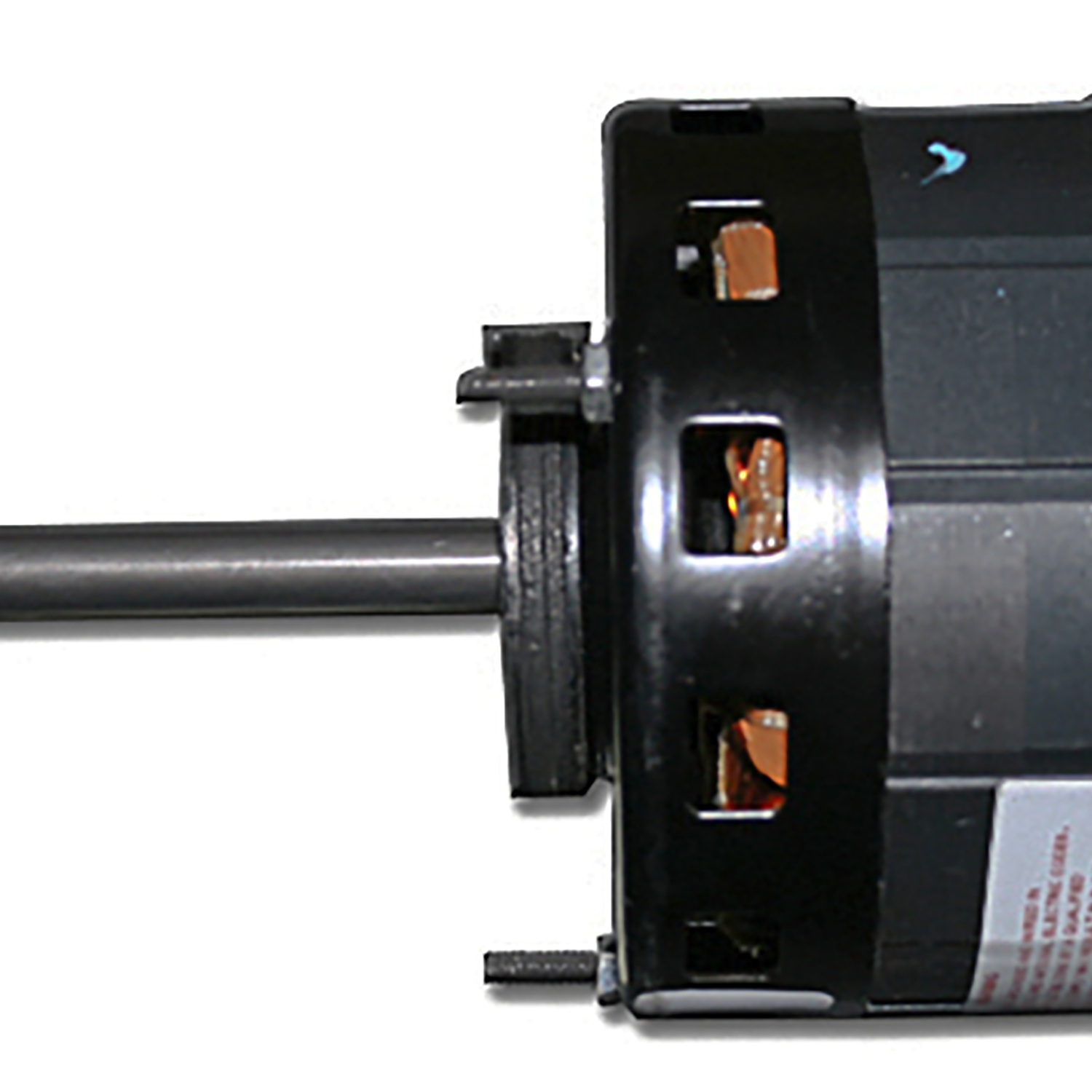

CENTURY MOTORS B6507A Fan and Blower Motor 1/5-1/6-1/10 HP

Product Description

The CENTURY MOTORS B6507A fan and blower motor is designed for various HVAC applications. Operating at two hundred thirty volts with a frequency of sixty hertz, it can reach speeds of one thousand seventy-five revolutions per minute. This motor is well-suited for furnace blowers, air handlers, fan coils, and air conditioning units. It comes with an open air over design and class B insulation, which is suitable for operation in an ambient temperature of up to forty degrees Celsius.

• Thermally protected with class B insulation
• Reversible rotation with three-speed options
• Requires a separate capacitor rated at seven point five Mfd-370 Volts, not included

Product Highlights

The B6507A motor stands out in HVAC settings, offering reliable performance with multiple horsepower ratings and reversible rotation capabilities for increased flexibility in installation.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: B6507A

Technical Specifications

• Phase: 1
• Output HP: 1/5-1/6-1/10 Hp
• Output KW: 0.15 kW
• Voltage: 230 V
• Speed: 1075 rpm
• Service Factor: 1
• Frame: 42Y
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.3, 0.9, 0.7 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Resilient Rings
• Motor Orientation: Horizontal
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Shaft Type: Flat
• Overall Length: 9.92 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 5.5 in
• Capacitor: 7.5MFD 370V
