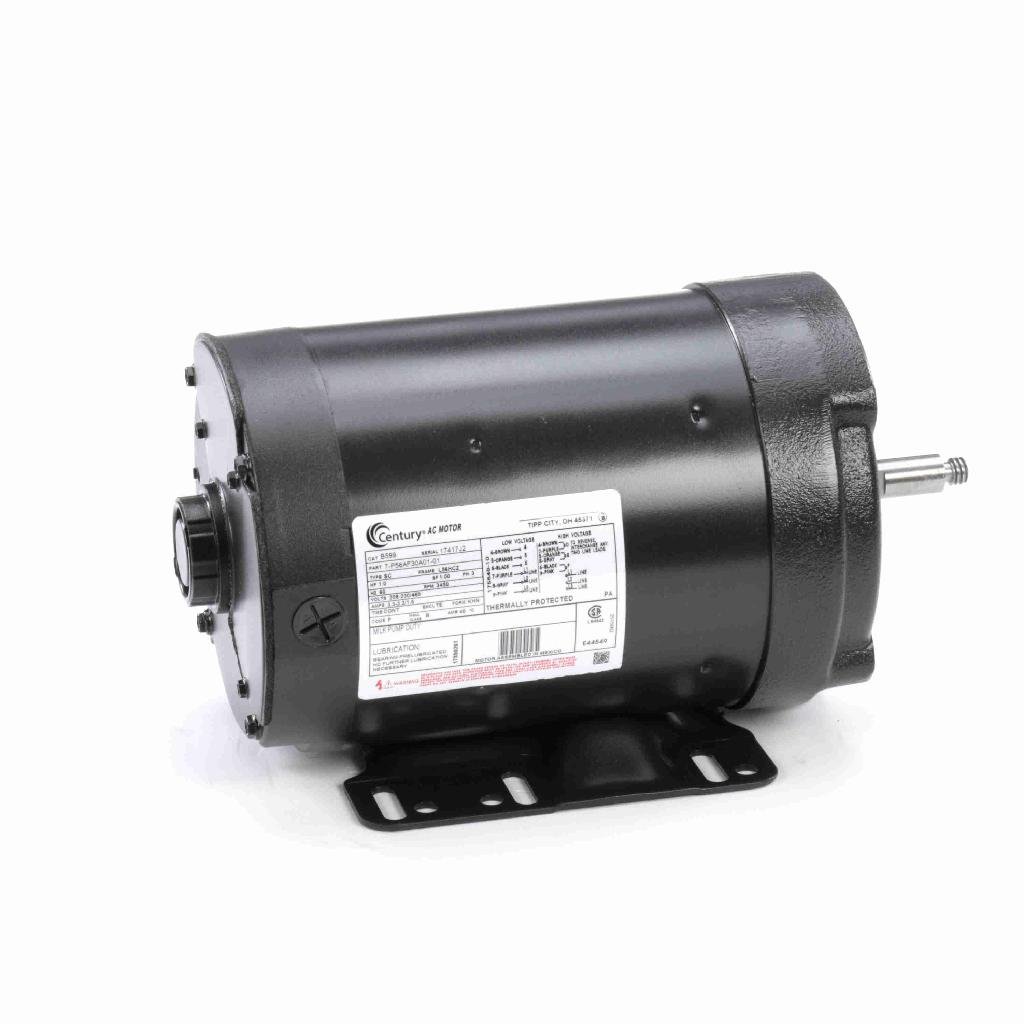

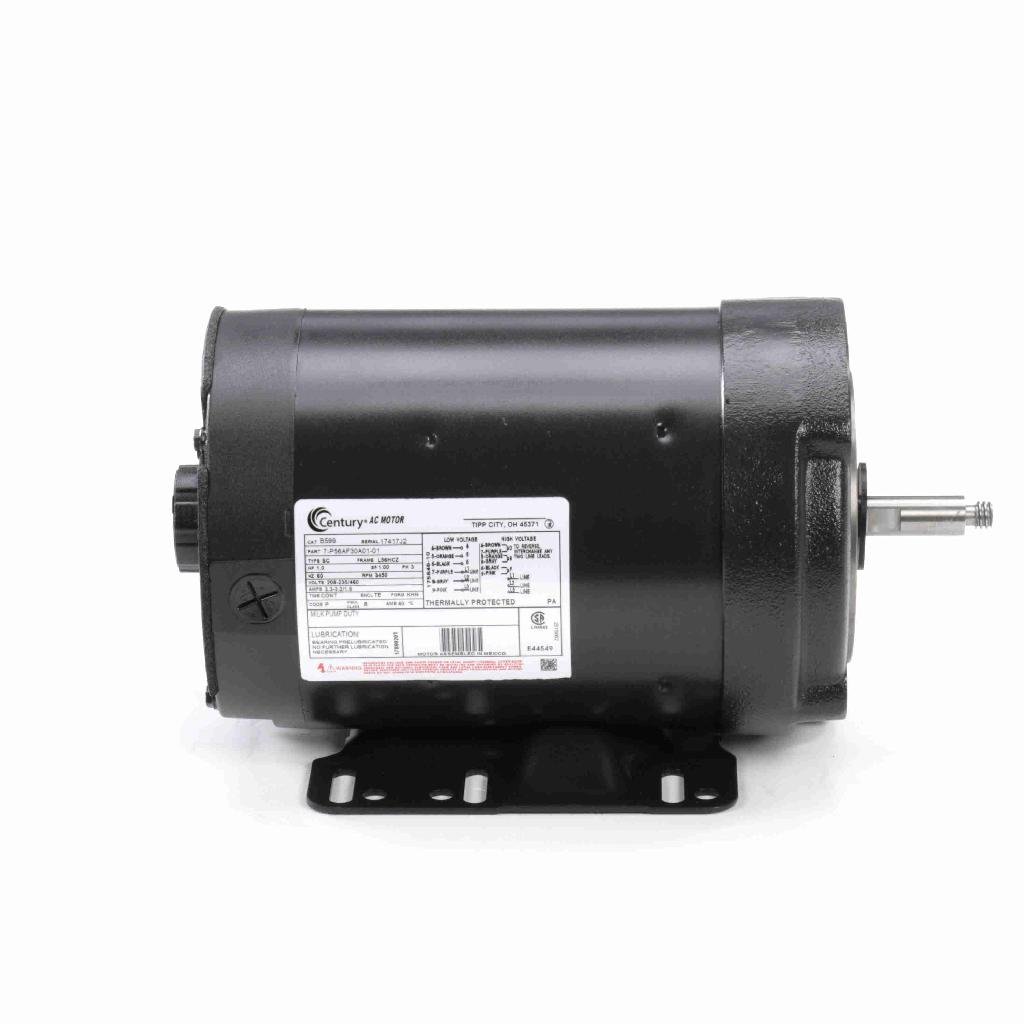

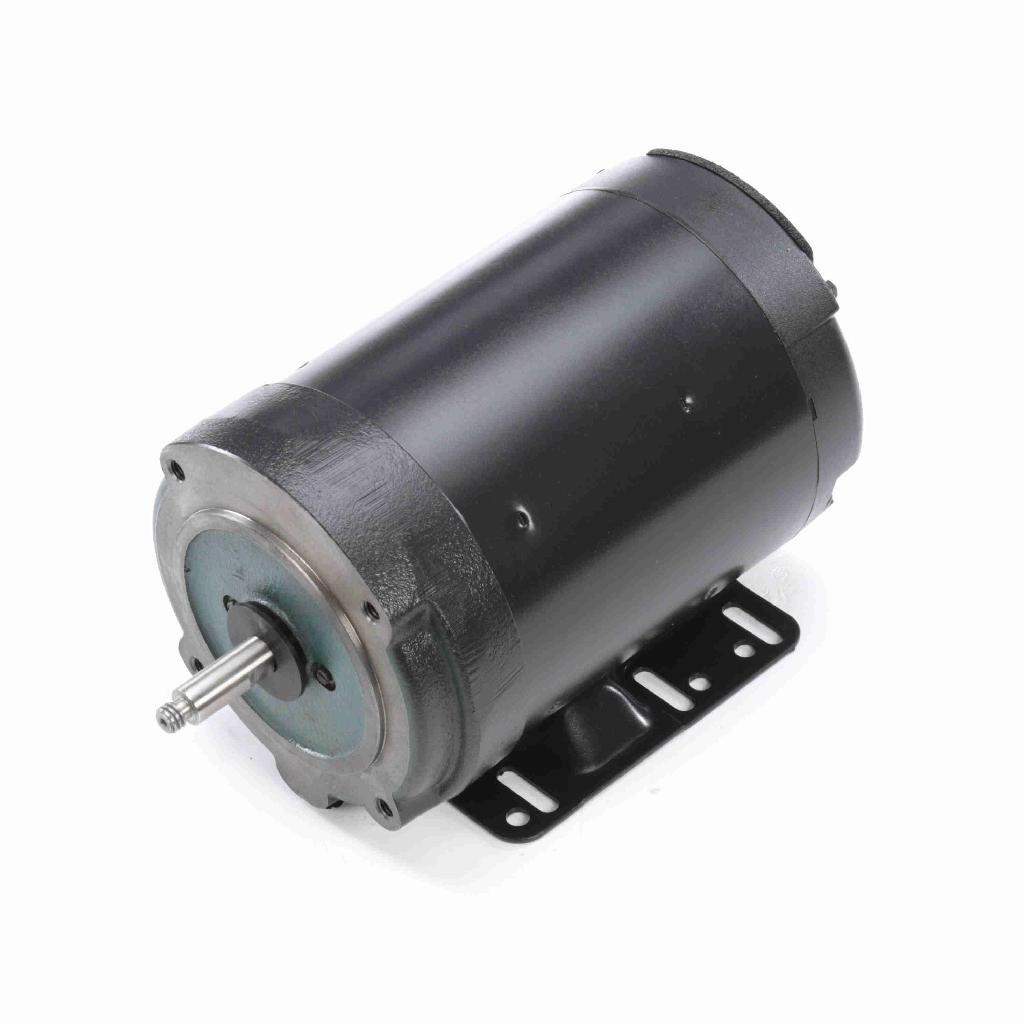

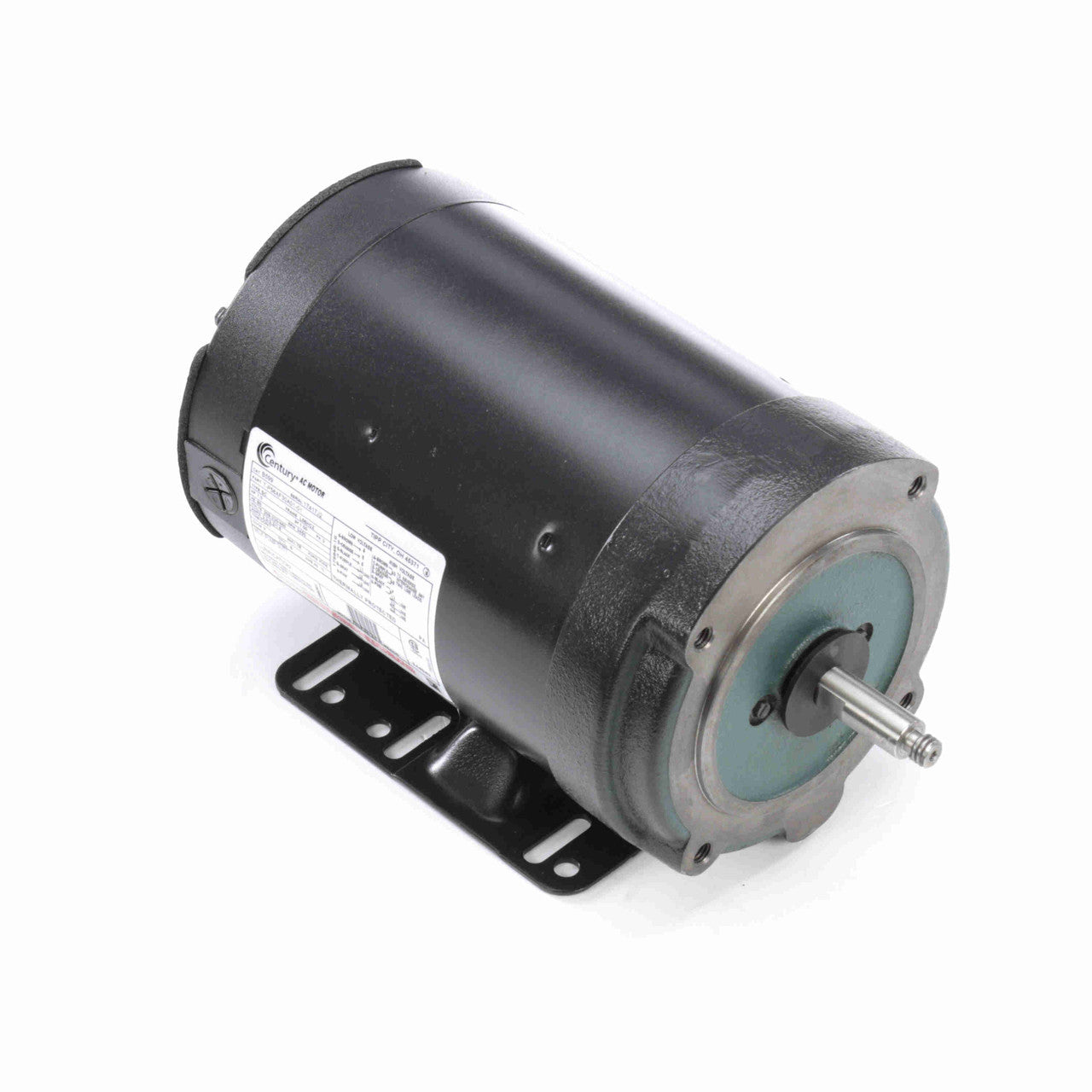

CENTURY MOTORS B599 General Purpose Farm Duty Motor

Product Description

The CENTURY MOTORS B599 is a three-phase electric motor suited for general-purpose and farm duty tasks, ideal for milk pump systems. This motor operates at 208-230/460 volts and provides one horsepower. It has a totally enclosed non-ventilated (TENV) design with a stainless steel shaft, making it suitable for demanding conditions.

• Designed for farm duty and milk pump applications.
• Features a totally enclosed non-ventilated (TENV) enclosure.
• Operates at 208-230/460 volts.

Product Highlights

This motor is built for continuous operation with automatic overload protection and ball bearings. It is a reliable choice for agricultural applications.

Product Information

Standard Information

• Brand: Century
• MPN: B599

Technical Specifications

• Horsepower: 1 hp
• Output Power: 0.75 kW
• RPM: 3450
• Voltage: 208-230/460 V
• Frequency: 60 Hz
• Full Load Amps: 3.3-3.2/1.6 A
• Phase: 3-Phase
• Frame Size: 56HCZ
• Enclosure Type: TENV
• Mounting Type: Rigid, C-Face
• Shaft Diameter: 0.625 inches
• Shaft Length: 2.33 inches
• Shaft Material: Stainless Steel
• Rotation: Reversible CCW
• Service Factor: 1.00
• Insulation Class: B
• Duty Cycle: Continuous
• Overload Protection: Automatic
• Bearing Type: Ball Bearings
• Ambient Temperature: 40° C
• Weight: 37.00 lb
• Electrical Type: Polyphase
• Starting Method: Across The Line
• Number of Speeds: 1
