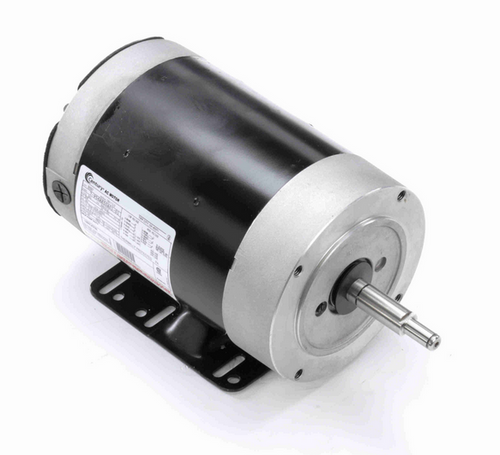

Century Motors B597 3/4 hp 3600 RPM 56C Frame 3 Phase Motor

Product Description

The Century Motors B597 is a 3/4 hp, 3600 RPM, 3-Phase motor with a 56C frame. Designed for farm applications such as milk pumps, this motor features a stainless steel shaft and wiring diagram on the name plate. It is totally enclosed and non-ventilated (TENV).

• Stainless steel shaft
• Wiring diagram on motor name plate
• TENV (Totally Enclosed Non-Ventilated)

Product Highlights

This Century Motors farm duty motor offers exceptional reliability and energy efficiency, ensuring seamless replacements and cost-effective operation.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: B597

Technical Specifications

• MPN: B597
• Brand: CENTURY MOTORS
• Horsepower: 3/4 hp
• RPM: 3600
• Frame: 56C
• Phase: 3-Phase
• Voltage: 208-230/460V
• Enclosure: TENV (Totally Enclosed Non-Ventilated)
• Amps: 2.5-2.4/1.2
• Shaft: 5/8" dia x 1 5/8" stainless steel with threaded end
• Service Factor: 1.0
• Overload Protection: Auto
• Base: Rigid
• Rotation: Reversible
• Bearings: Ball Bearings
• Insulation Class: Class B
• Poles: 2
• Frequency: 60 Hz
• Mounting: C-Face / Rigid
• Frame Material: Rolled Steel
• C-Dimension: 13.36"
• Duty: Continuous
• Ambient Temp: 40°C
• DE Bearing: Ball
• NDE Bearing: Ball
• Hazardous Locations: CSA Certified
• Agency Approvals: CSA & UL
• Shaft Diameter: 0.625"
• Shaft Length: 1.625"
