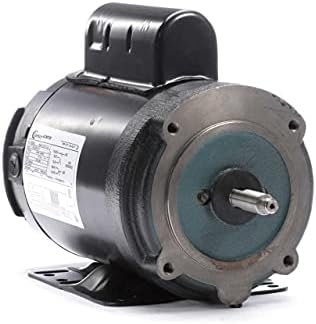

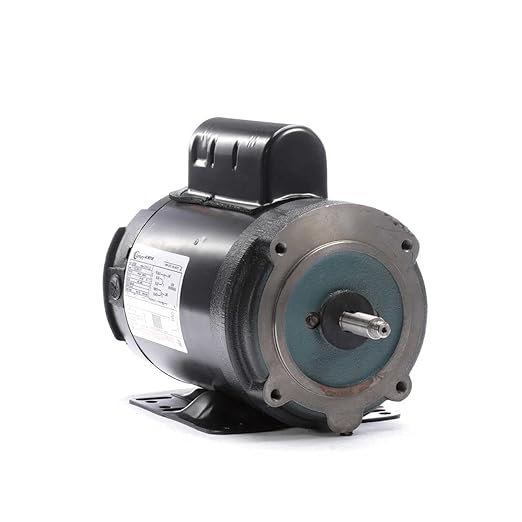

Century Motors B586 Milk Pump Motor 1 HP 3600 RPM

Product Description

The CENTURY MOTORS B586 is a milk pump motor designed for farm duty applications. This 1 HP motor operates at 208-230V and 3600 RPM. It features a permanent split capacitor design and is totally enclosed non-ventilated (TENV) for protection against environmental factors. The motor is constructed with a stainless steel frame for durability.

• Permanent Split Capacitor motor design
• Totally Enclosed Nonventilated (TENV) enclosure
• Designed for farm duty milk pump applications

Product Highlights

This CENTURY MOTORS milk pump motor is ideal for agricultural environments requiring a robust and reliable motor.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: B586
• Country of Origin: Mexico

Technical Specifications

• MPN: B586
• Brand: CENTURY MOTORS
• Speed: 3600 RPM
• Voltage: 208-230 V
• Horsepower: 1 HP
• Material: Stainless Steel
• Frame: 56HCZ
• Hertz: 60 hz
• Amps: 4.8-4.5
• Enclosure: Totally Enclosed Non Ventilated
• Rotation: CCW Rotation Facing the Shaft
• Overload Protection: Automatic Overload Protection
• Motor Type: Milk Pump Motor
• Phase: 1
• Service Factor: 1.00
• Thermal Protection: Automatic
• Maximum Ambient Temperature: 40 °C
• Insulation Class: B
• Duty Cycle: Continuous
• Mounting: Rigid Base
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.33 in
• Overall Length: 12.43 in
• Frame Length: 6.25 in
• Frequency: 60 Hz
• Current: 4.8-4.5 A
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 2
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Threaded
