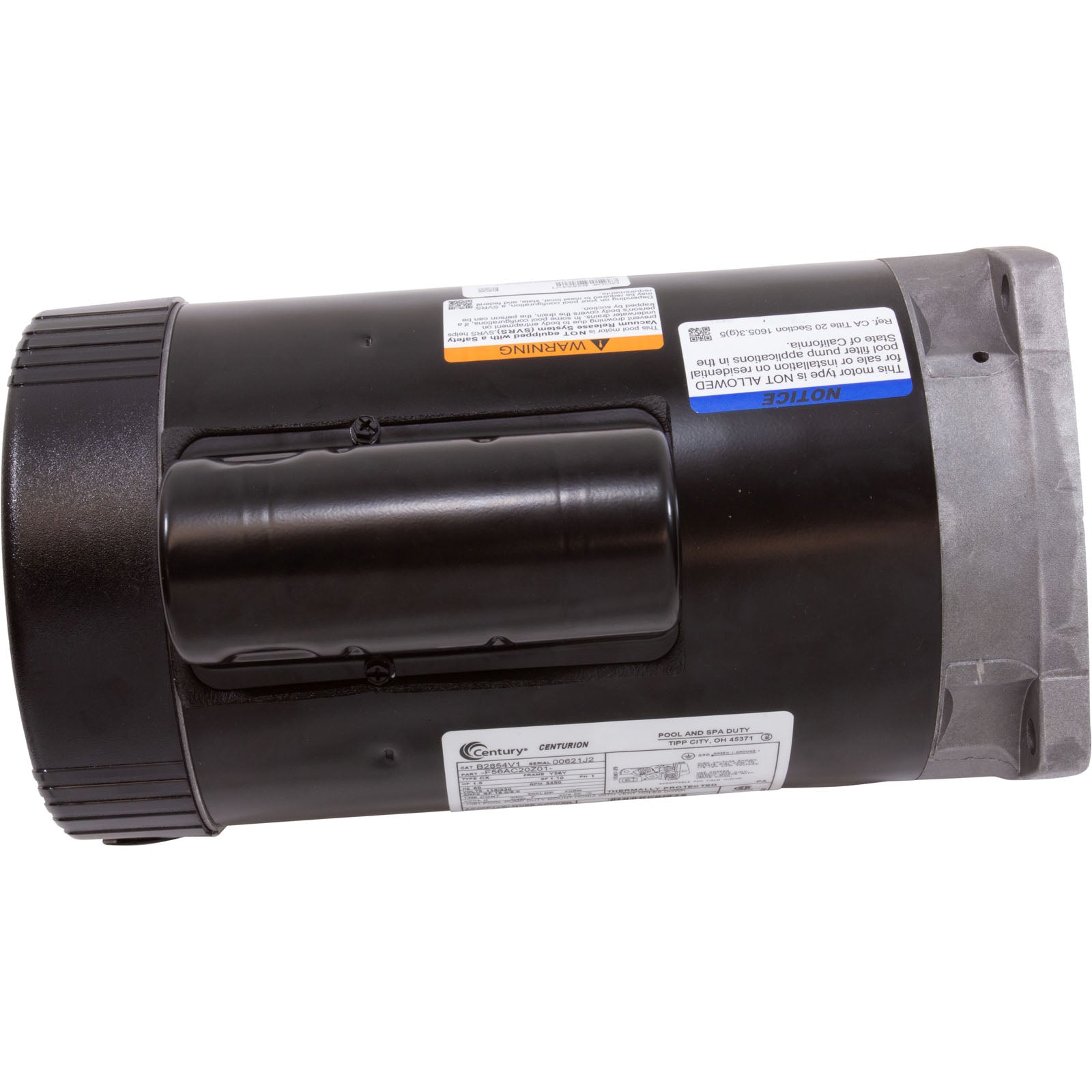

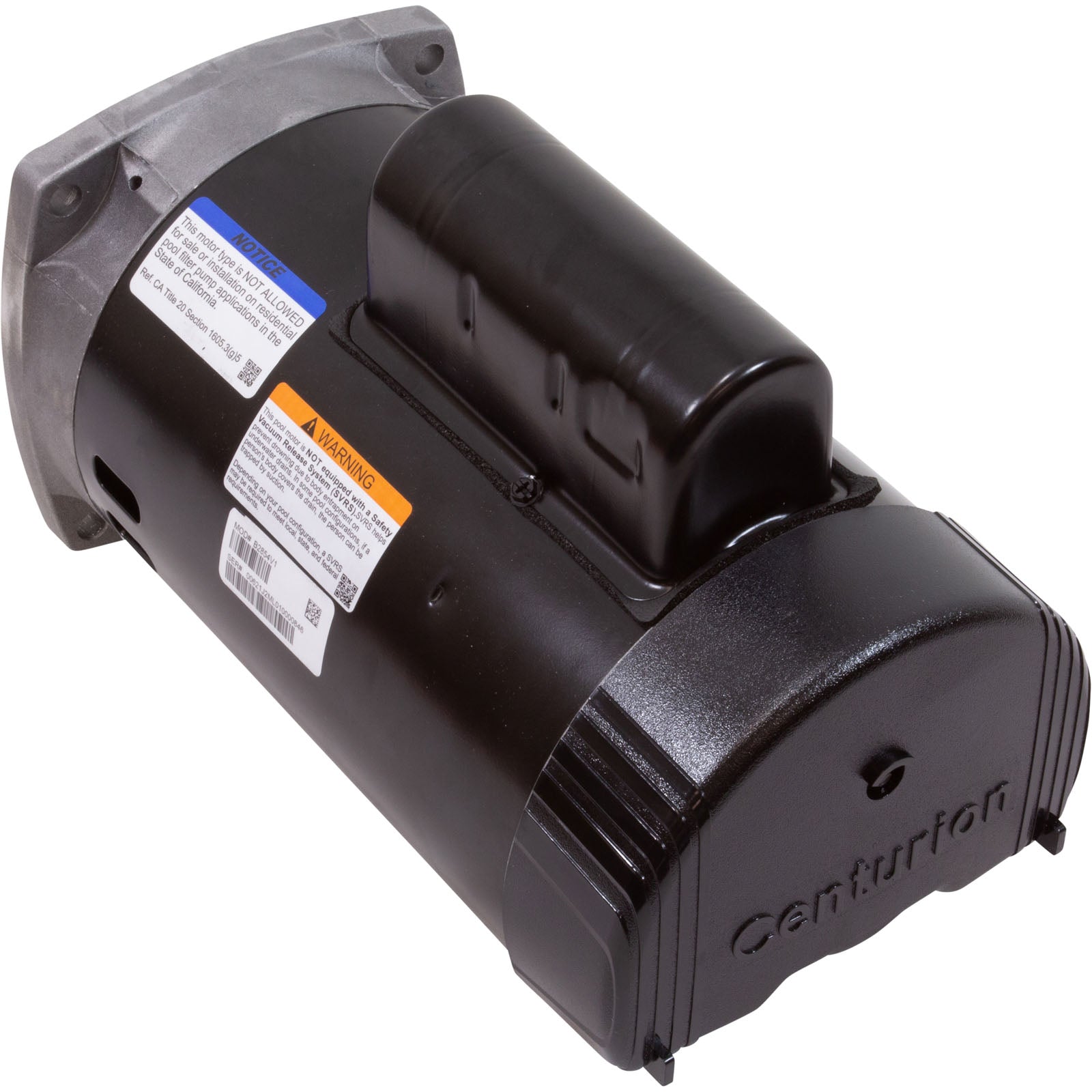

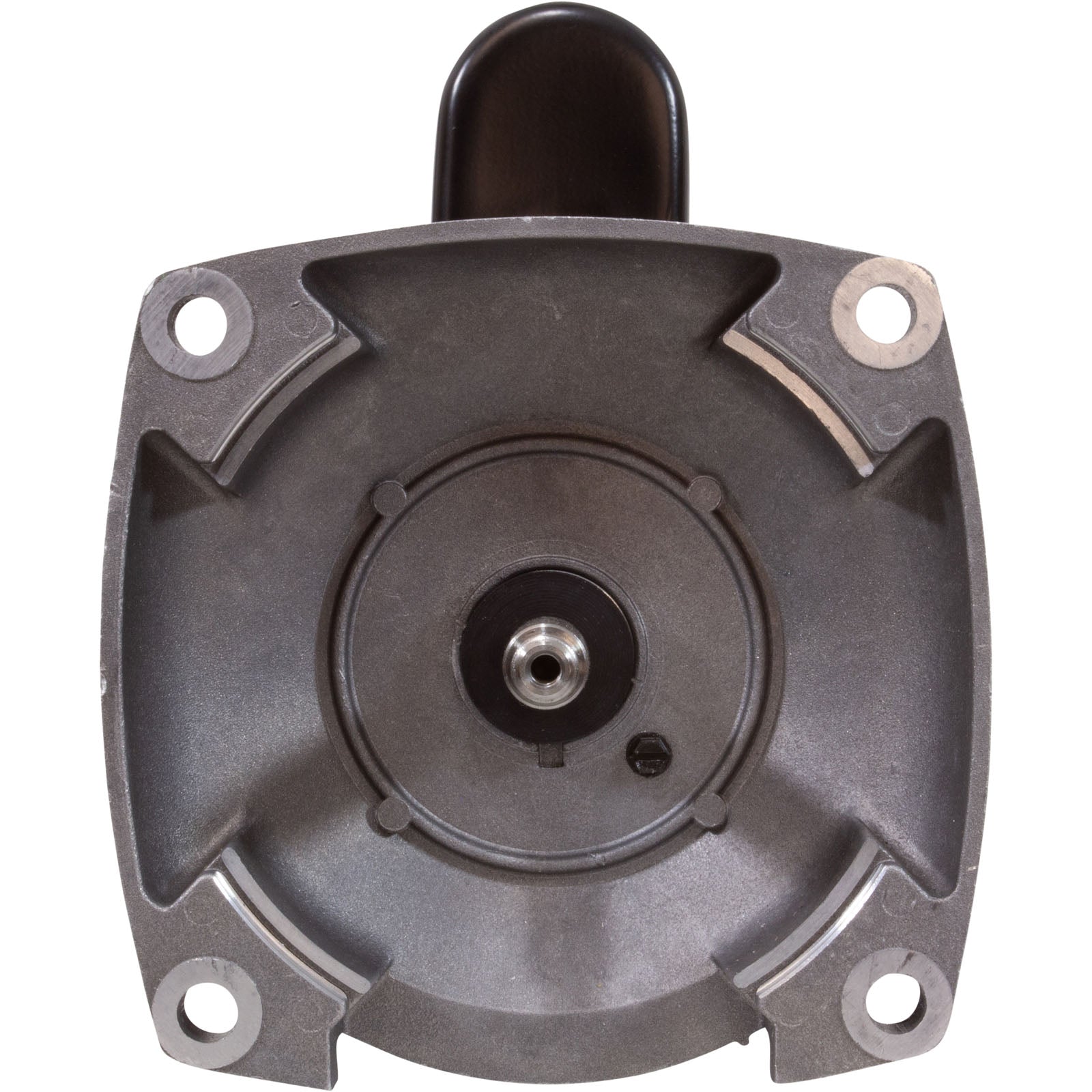

Century B2854V1 Pool Pump Motor 1.5 HP Single Speed 115/230V 56Y Frame

Product Description

The Century B2854V1 pool pump motor is designed for use with Pentair WhisperFlo pumps. This 1.5 HP single-speed motor operates at 115/230V and fits a 56Y frame. Suitable for pool and spa applications, it ensures efficient operation and durability.

• Sealed ball bearings
• Stainless steel shaft
• UL 1081 design

Product Highlights

This pool pump motor features a permanent split capacitor design, providing reliable and efficient performance. It is ideal for replacing worn or damaged motors in pool and spa pumps, ensuring a smooth and continuous operation.

Product Information

Standard Information

• Brand: Century
• MPN: B2854V1
• HP: 1.5
• Voltage: 115/230V

Technical Specifications

• Phase: Single
• Frame: 56Y
• Full Load Amps: 16.0/8.0
• Hz: 60
• Ins. Class: F
• Motor Design: Permanent Split Capacitor
• Motor Enclosure Design: Open Dripproof
• Max. Ambient Temp.: 50 Degrees C
• Nameplate RPM: 3,450
• Shaft Diameter: 5/8 inch
• Shaft Material: Stainless Steel
• Standards: CSA, UL
• Application: Pool and Spa Pumps
• Motor Bearings: Ball
