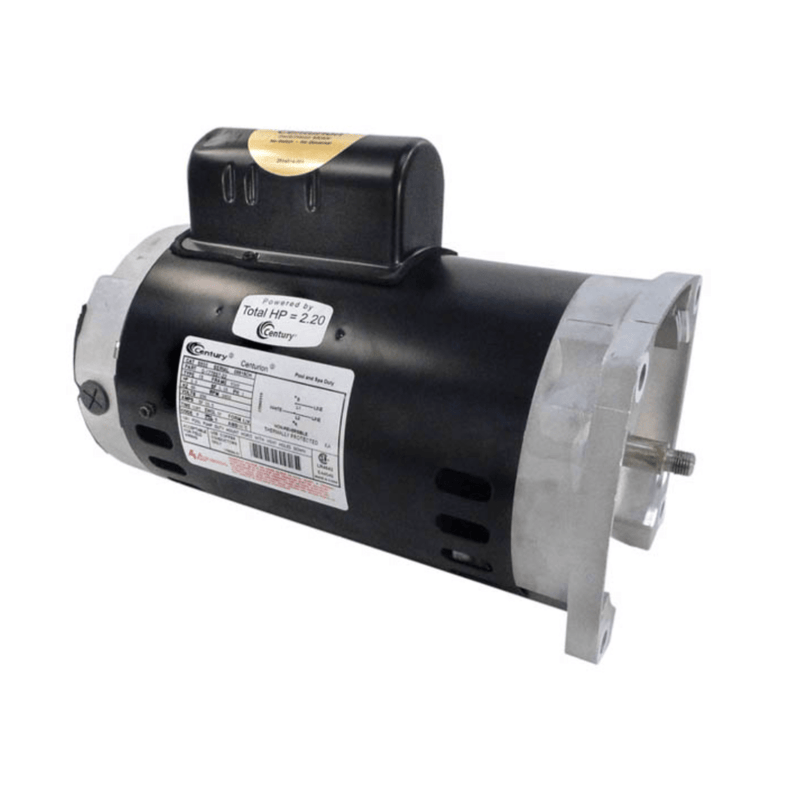

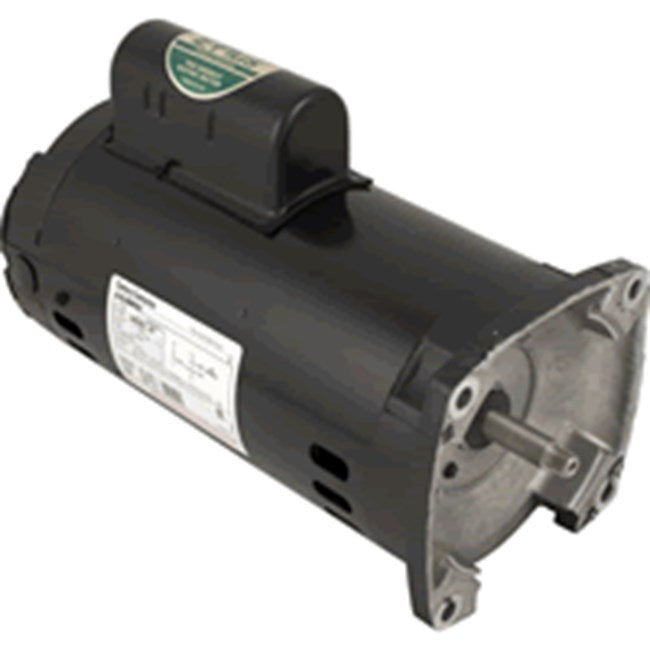

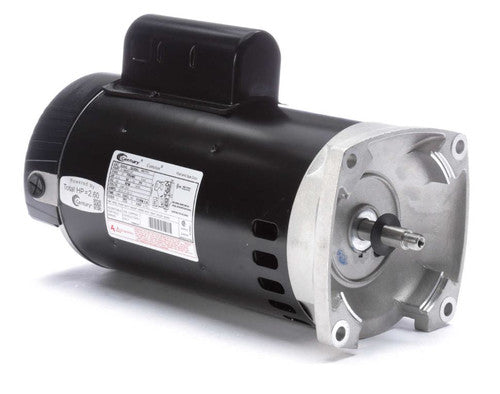

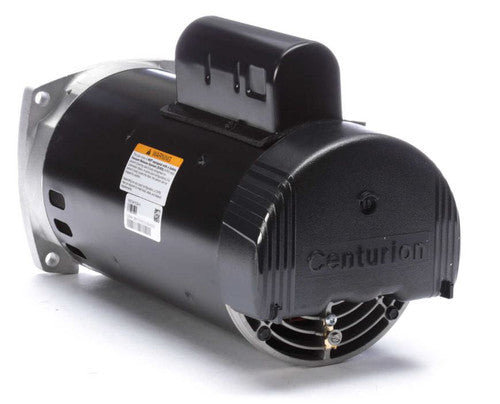

Century Motors B2843 pool motor 2.0 hp 3450 rpm 56y frame square flange 208-230v replacement B843 EB843

Product Description

The CENTURY MOTORS B2843 is a 2.0 horsepower motor operating on 208V-230V with a single speed. It features a 56Y frame and a square flange mount, designed for energy efficiency. This motor is commonly used in in-ground pool pumps, including models like PacFab Challenger, Whisperflo, and Pentair, and serves as a direct replacement for B843 and EB843 models. It includes automatic overload protection and a 1.30 service factor.

• 2.0 horsepower for efficient operation.
• Operates on 208V-230V with a single speed.
• Direct replacement for Century/AO Smith B843 and US Electric EB843 models.

Product Highlights

Energy efficient design with automatic overload protection.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: B2843
• Country of Origin: United States

Technical Specifications

• Brand: CENTURY MOTORS
• MPN: B2843
• Horsepower: 2.0 HP
• Input Voltage: 208V-230V
• Speed: 1-Speed
• Frame: 56Y
• Mount Type: Square Flange
• Efficiency: Energy Efficient
• RPM: 3450
• Frequency: 60 Hz
• Current: 11.0-10.2A
• Bearing Type: Ball Bearings
• Service Factor: 1.30
• Shaft Rotation: Counter-Clockwise
• Enclosure Type: Open Drip Proof
• Shaft Diameter: 5/8 inch
• Shaft Type: Threaded
• Shaft Material: Stainless Steel
• Total Horsepower: 2.6 HP
• Manufacturer: Century (A.O. Smith)
• Phase: Single
• Operating Temperature: 50 degrees Celsius
• Duty Cycle: Continuous
• Efficiency Group: Standard
• Insulation Class: F
• Thermal Protection: Automatic Reset
• Certifications: CSA Certified
• Flange Material: Aluminum
• Frame Material: Rolled Steel
• Motor Rating: Full-Rated
• Country of Origin: United States
