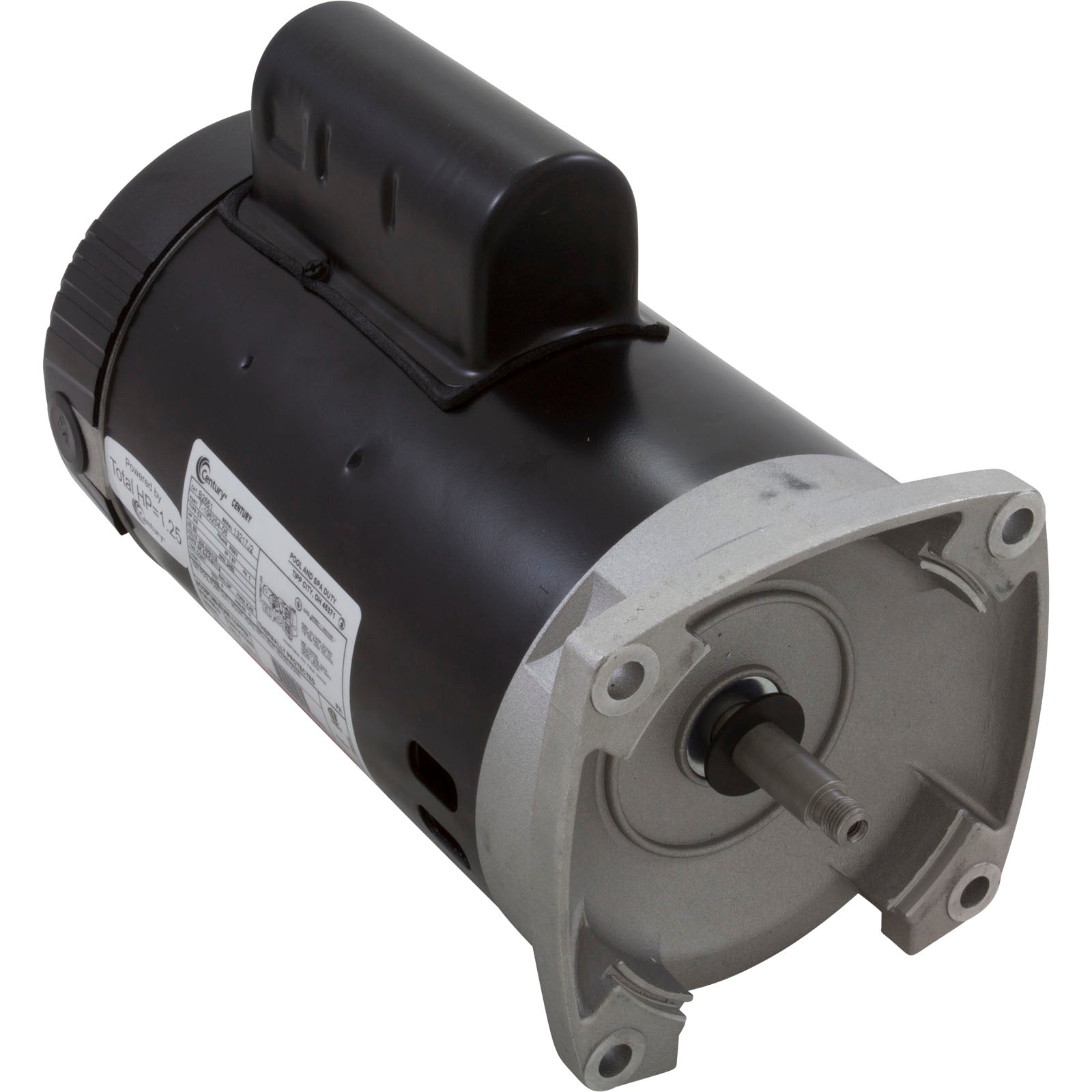

Regal Rexnord-Century Motors B2661 115/230V 3/4HP Pool Pump Motor 3450RPM

Product Description

The Regal Rexnord-Century Motors B2661 is a reliable pool pump motor designed for industrial and residential applications. With a power rating of 3/4 HP and a speed of 3450 RPM, this motor ensures efficient and continuous operation.

• Voltage: 115/230V AC
• Frame: 56Y
• Conduit Box Position: F3

Product Highlights

Ideal for pool and spa pumps, this motor is known for its durability and performance consistency.

Product Information

Standard Information

• Brand: Regal Rexnord-Century Motors
• Item Number: B2661

Technical Specifications

• HP: 3/4
• Voltage: 115/208-230V AC
• Phase: Single
• Shaft: Threaded 1/2-20 UNF-2A RH
• Height: 11 inches
• Weight: 28 lb
• RPM Range: 3,001-3,600
• Frame: 56Y
• Insulation Class: F
• Shaft Dia: 5/8 inches
• Full Load Amps: 11.2/6.0-5.6
• Enclosure Design: Open Dripproof
• Motor Bearings: Ball
• Nameplate RPM: 3,450
• Duty Cycle: Continuous
• Ambient Temperature: 50 Degrees C
• Mounting Type: Face
• Flange Material: Aluminum
• Motor Efficiency: Standard Efficient
