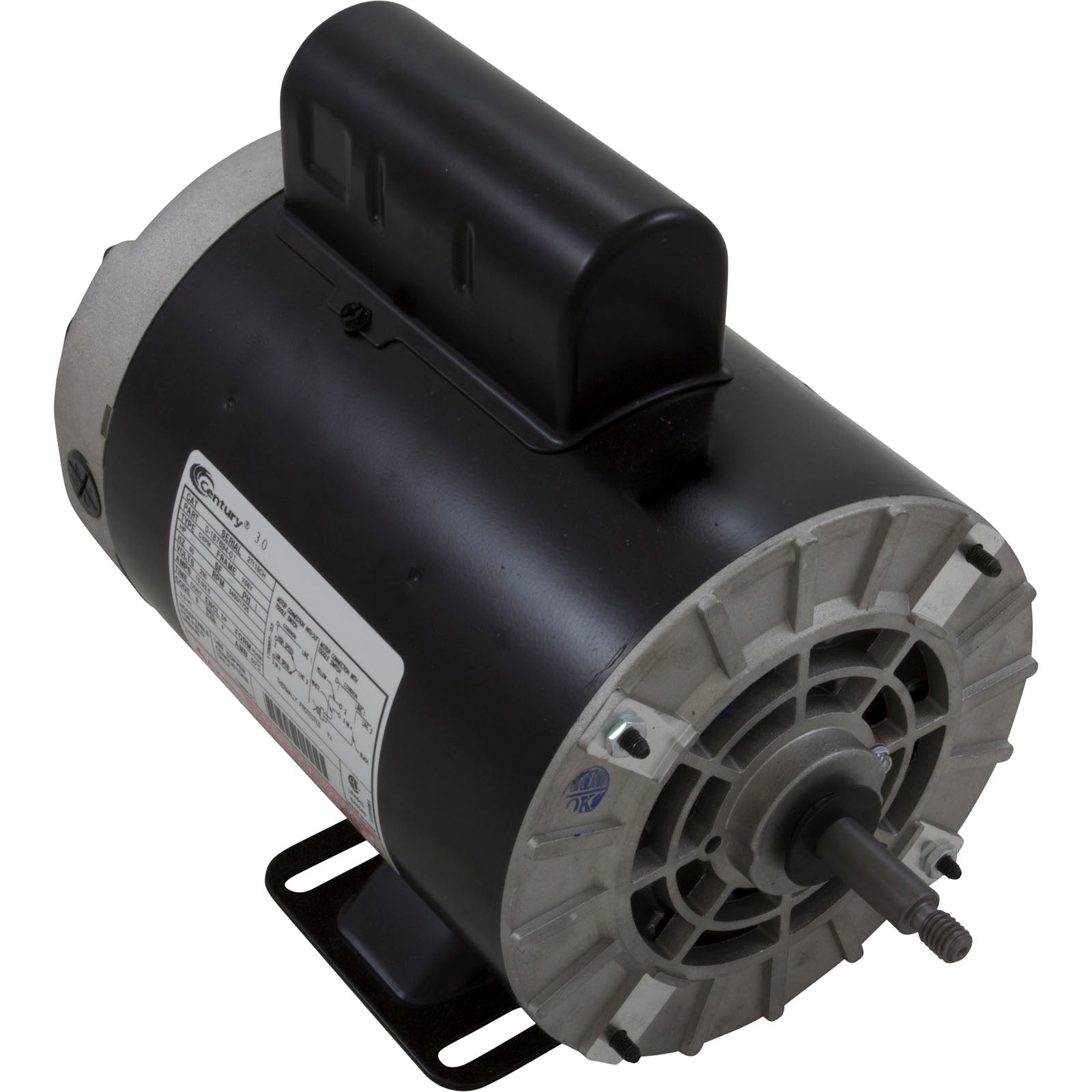

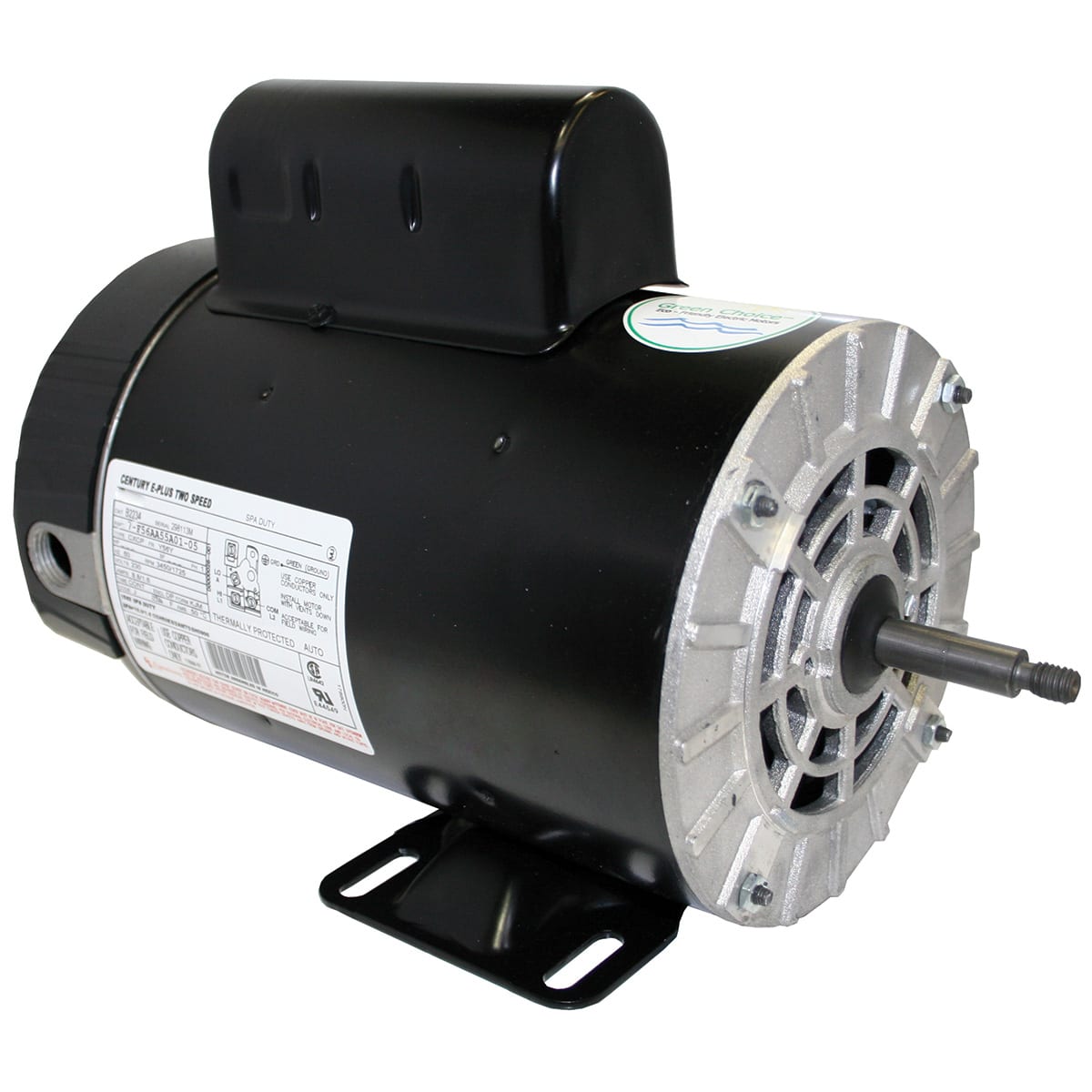

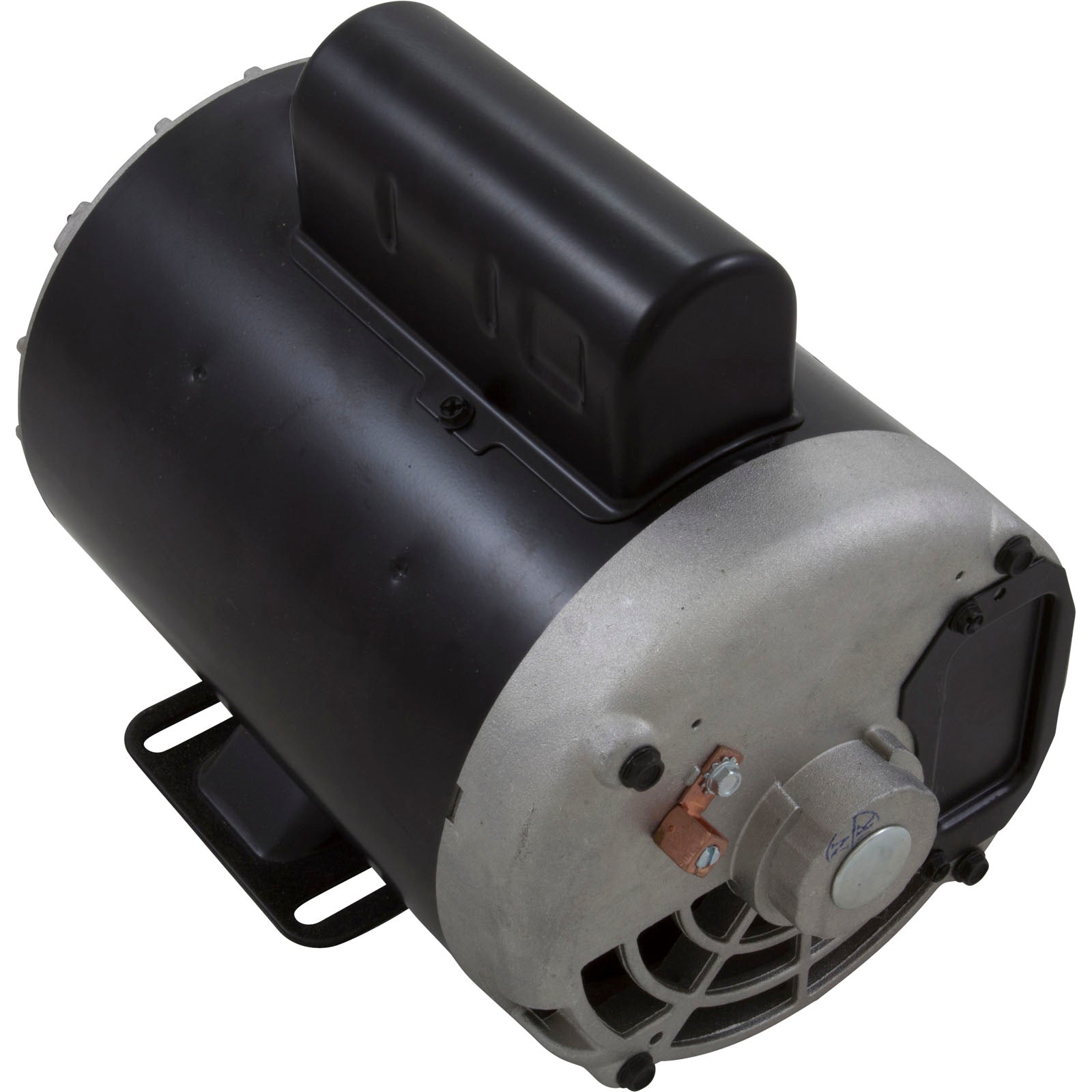

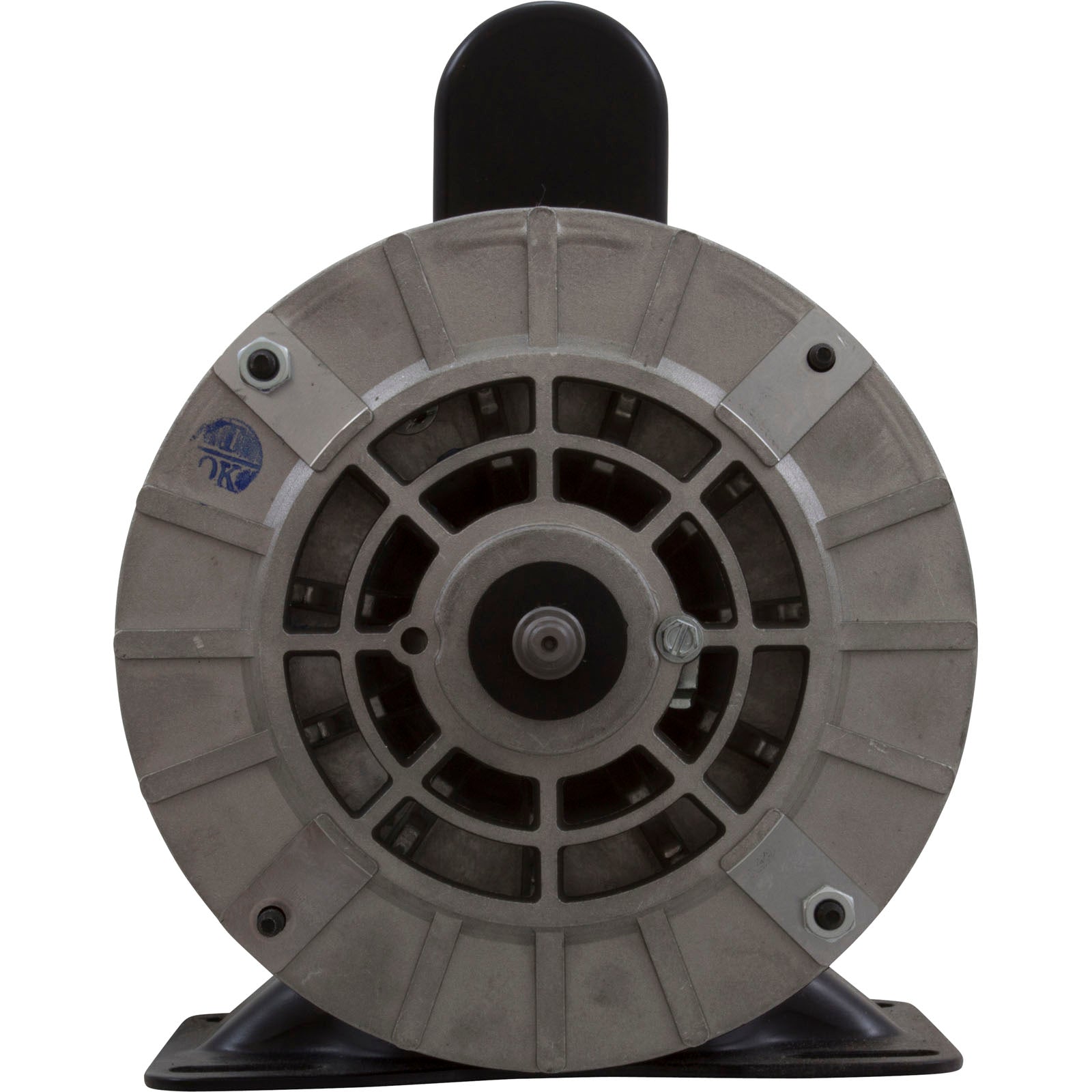

Century B2234 Pool Pump Motor 3HP 2-Speed 1 Phase 230V 56Y Frame

Product Description

The Century B2234 Pool Pump Motor is designed for efficient and reliable performance. This 3HP, 2-speed, 1-phase motor operates at 230V with a compatible 56Y frame, making it ideal for various pool and spa applications.

• Two-speed operation
• PSC on high speed
• Cap start/cap run on low speed

Product Highlights

This motor features a rigid base and is designed to handle ambient temperatures up to 50 degrees Celsius. It includes four through bolts on a 5.812 bolt circle and has a black finish for durability.

Product Information

Standard Information

• Brand: Century
• MPN: B2234
• Category: Pool Pump Motors
• Frame: 56Y

Technical Specifications

• Voltage: 230V
• Horsepower: 3.0/0.38 HP
• Frame Size: 56Y
• Phase: Single
• Full Load Amps: 10.0/1.8
• Maximum Ambient Temperature: 50 degrees Celsius
• Shaft Diameter: 1/2 inch
• Shaft Length: 2 5/16 inches
• Motor Bearings: Ball
• Nameplate RPM: 3,450/1,725
• Motor Application: Pump
• Motor Design: Capacitor-Start/Run
• Motor Enclosure Design: Open Dripproof
• Motor Frame Material: Steel
• Motor Mounting Type: Rigid Base
• Motor Shaft Design: Threaded
• Country of Origin: China
