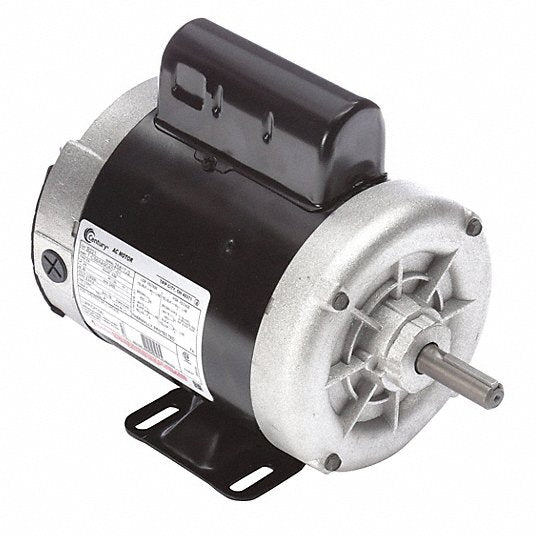

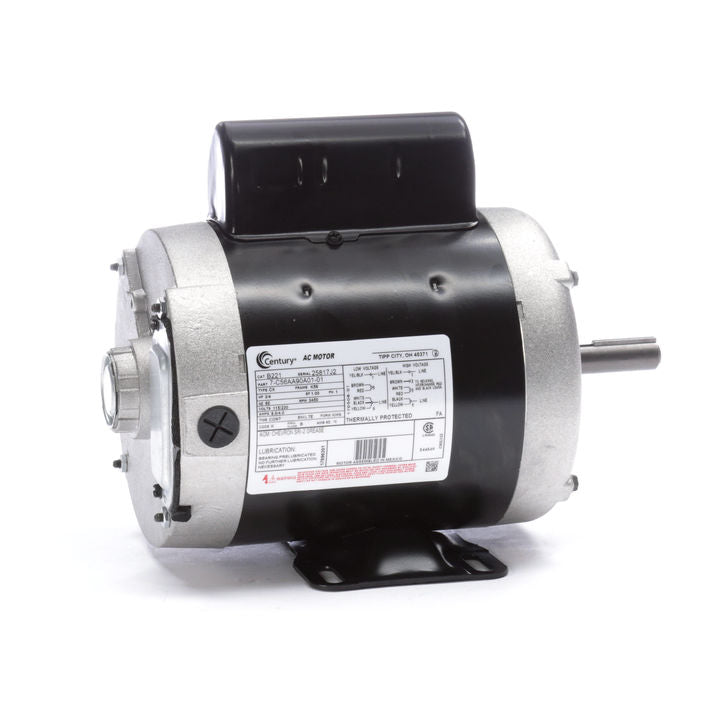

CENTURY MOTORS B221 Farm Duty Aeration Fan Motor

Product Description

The CENTURY MOTORS B221 is a reliable single-phase AC motor ideal for farm duty aeration fan applications. This motor operates efficiently at both 115 and 230 Volts and features a robust design with a rigid base for secure mounting. The Totally Enclosed Non-Ventilated (TENV) enclosure protects the motor from dust and moisture, ensuring it functions well in various conditions.

• Horsepower: 0.75 HP
• Operating Speed: Ranges from 3450 to 3600 RPM
• Automatic thermal protection for safety

Product Highlights

Product Information

Standard Information

• Brand: Century
• MPN: B221

Technical Specifications

• Horsepower: 0.75 HP
• RPM: 3450
• Input Voltage: 115/230V
• Frequency: 60 Hz
• Phase: 1
• Enclosure Type: TENV (Totally Enclosed Non Ventilated)
• Frame Size: 56
• Mounting Type: Rigid Base
• Service Factor: 1
• Bearing Type: Ball
• Shaft Diameter: 5/8 inch
• Shaft Length: 1-15/16 inch
• Electrical Type: Permanent Split Capacitor
• Duty Cycle: Continuous
• Insulation Class: B
• Maximum Ambient Temperature: 40 °C
• Rotation: Reversible
• Thermal Protection: Automatic
• Full Load Amps: 8.0/4.0 A
• Weight: 29 lbs
• Motor Type: AC Motor
• Frame Material: Rolled Steel
• Overall Length: 11.44 inches
