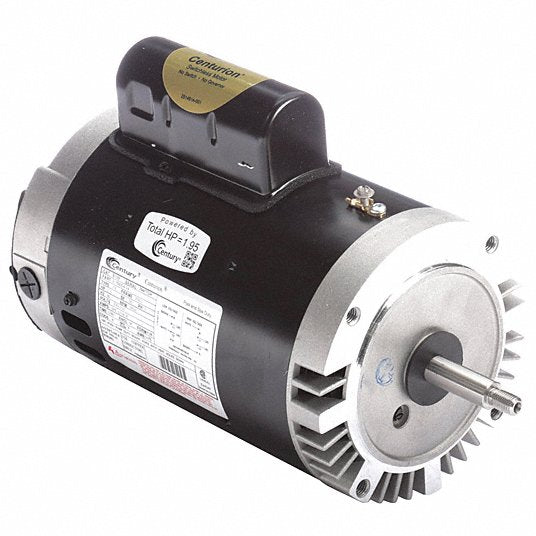

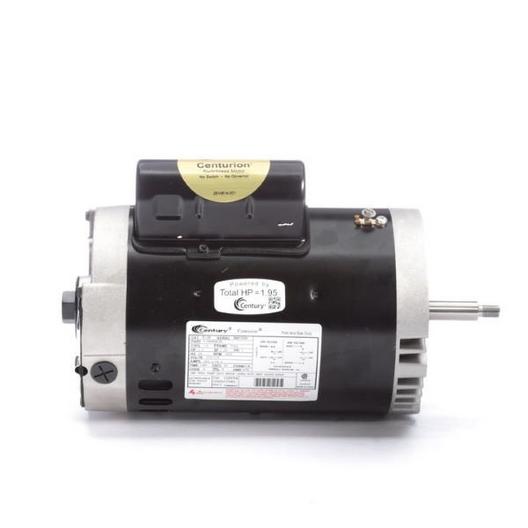

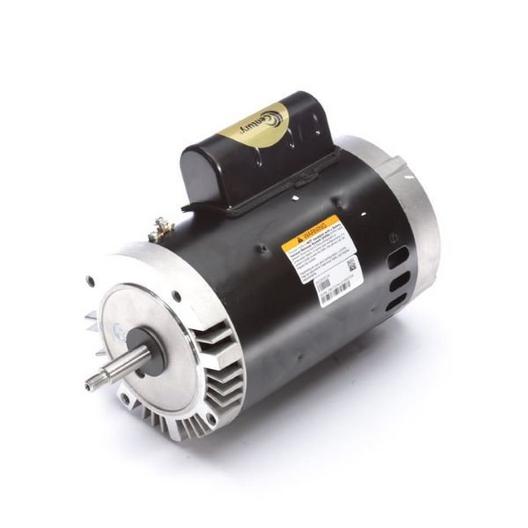

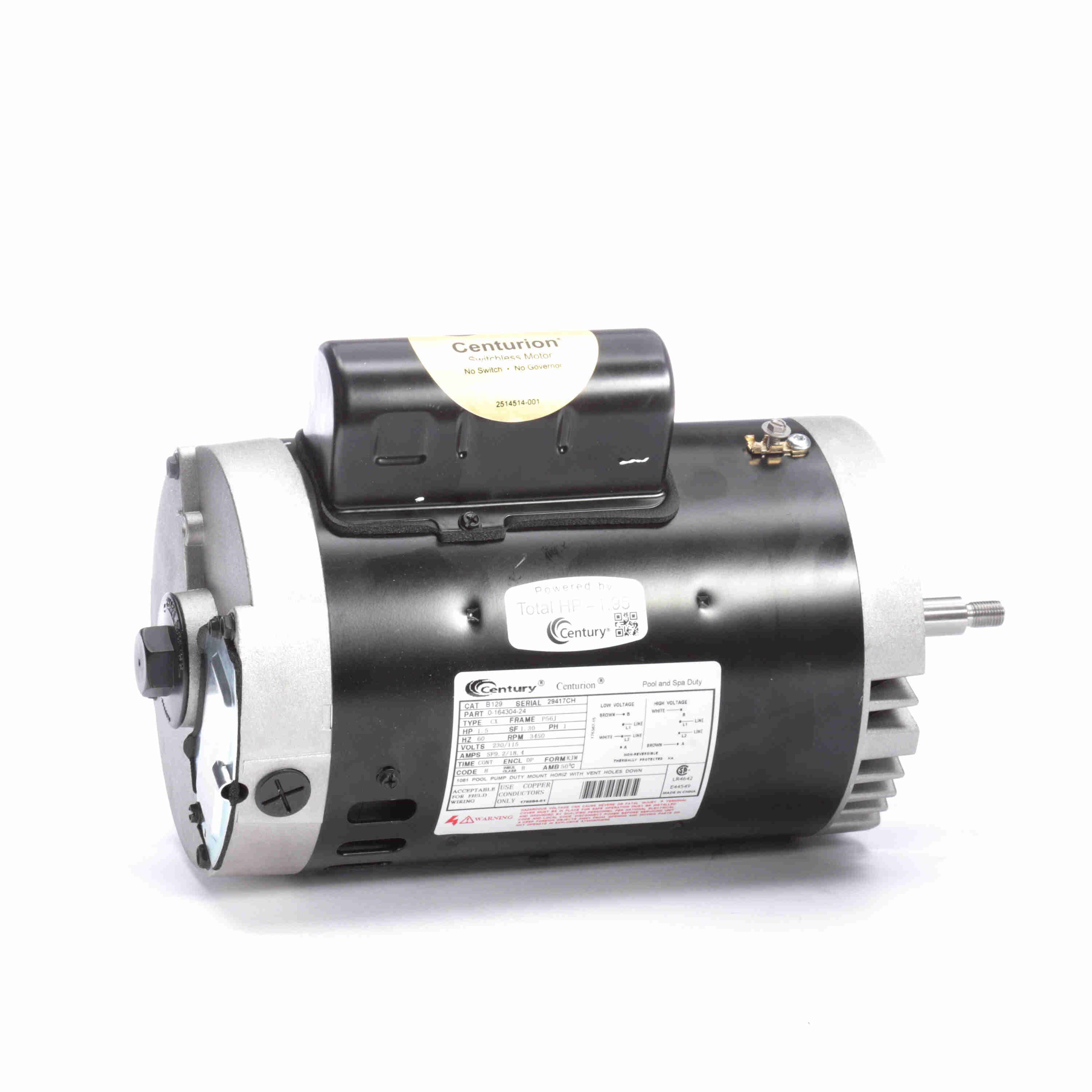

Century Motors B129 Motor 1.5hp 1-Speed 56Jfr C-Face Thd

Product Description

The CENTURY MOTORS B129 is a single-phase motor designed for pool and spa pump applications. It features 1.5 horsepower, operates on 115V/230V, and has a single speed. This motor includes a 56J frame with a C-Face threaded design, allowing direct attachment to machinery. It is an Open Drip Proof (ODP) motor with Permanent Split Capacitor (PSC) electrical type, constructed from rolled steel, and offers CCWSE rotation. It is equipped with auto overload protection and ball bearings for continuous duty.

• 1.5 Horsepower
• Dual Voltage: 115V/230V
• Single Speed
• 56J Frame
• C-Face Threaded

Product Highlights

Features durable rolled steel construction, dual voltage operation, and a C-Face threaded shaft for direct pump compatibility.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: B129
• Country of Origin: Thailand

Technical Specifications

• MPN: B129
• Brand: CENTURY MOTORS
• Horsepower: 1.5 HP
• Voltage: 115V/230V
• Speed: Single Speed, 3450 RPM
• Frame: 56J
• Face Type: C-Face Threaded
• Electrical Type: Permanent Split Capacitor (PSC)
• Diameter: 6.5 inches
• Enclosure Type: Open Drip Proof (ODP)
• Phase: Single
• Rotation: CCWSE
• Overload Protection: Auto
• Frame Material: Rolled Steel
• Mounting Type: C-Face
• Amperage: 9.2/18.4 A
• Shaft Type: Threaded
• Service Factor: 1.3
• RPM: 3450 RPM
• Shaft Diameter: 5/8 inch
• Shaft Extension: 2.57 inches
• Bearing Type: Ball
• Frequency: 60 Hz
• Duty Cycle: Continuous
• Insulation Class: Class B
• Max Ambient Temperature: 50°C
• Certifications: UL Recognized, CSA Certified

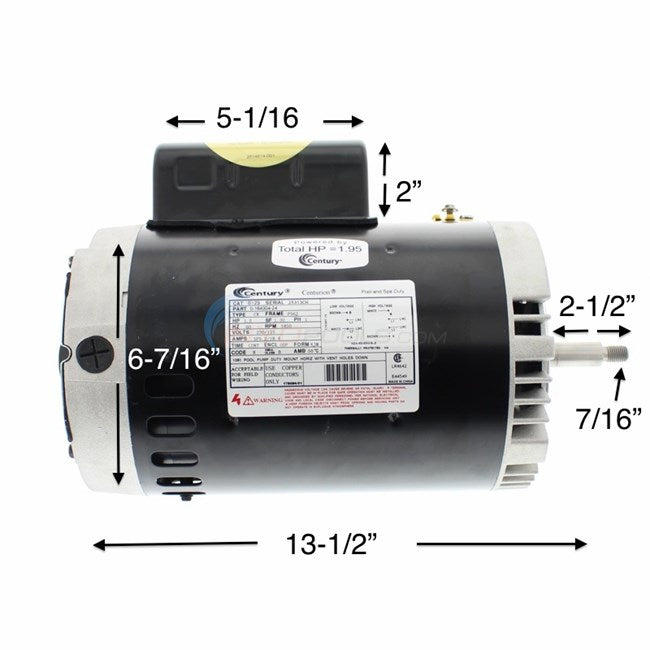

• Overall Length: 13.50 inches
• Shaft Material: 303 Stainless Steel
• Capacitor: Run capacitor, 25 MFD, 370V
• Poles: 2
• Motor Orientation: Horizontal
• Product Type: Pump Motor
