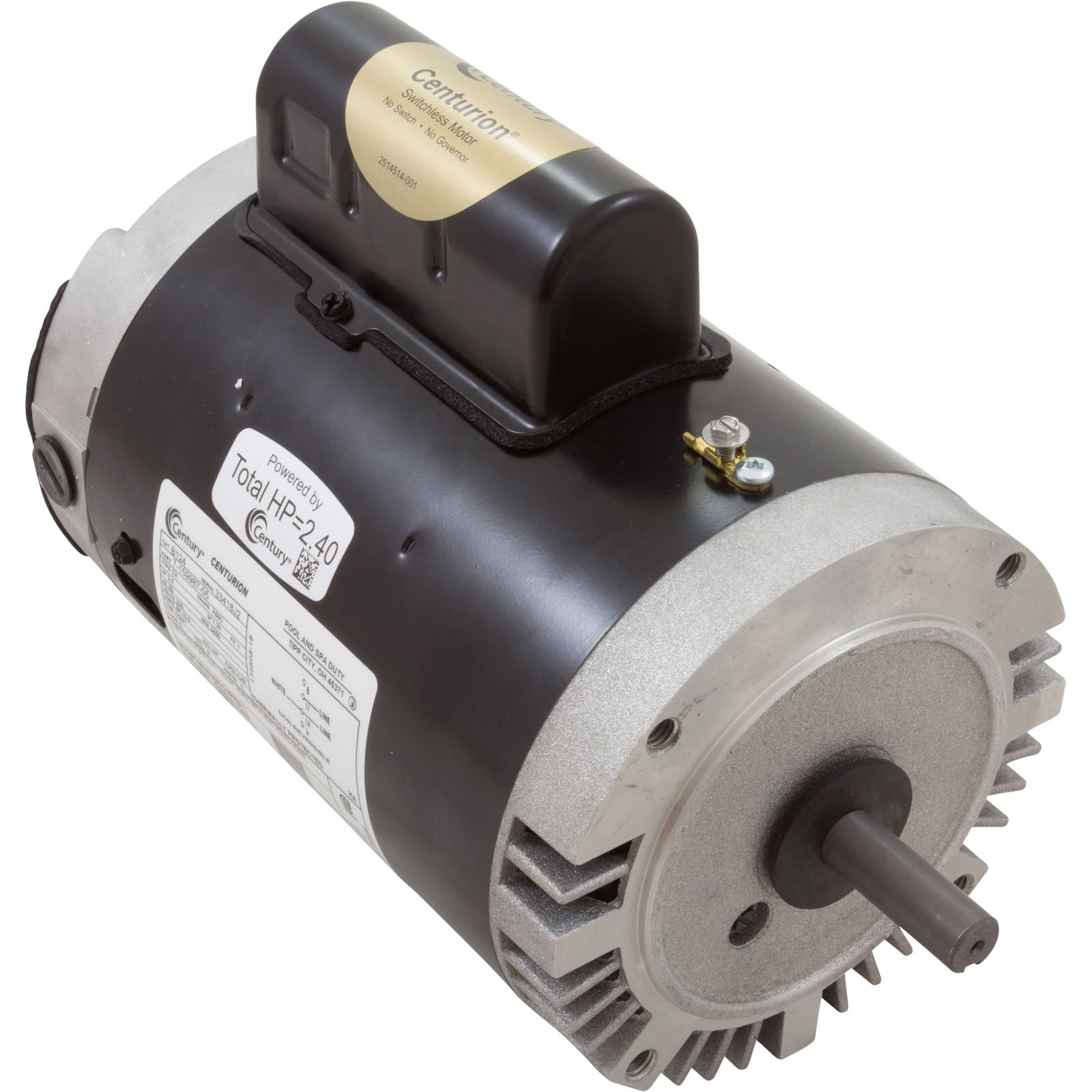

Century B124 Pool Pump Motor 2 HP 56C Frame 3,450 RPM

Product Description

The Century B124 Pool Pump Motor offers reliable performance for pool and spa applications. It delivers 2 HP and is designed with a 56C frame and 3,450 nameplate RPM.

• 2 HP motor
• 3,450 RPM
• 56C frame design

Product Highlights

Reliable pool pump motor suitable for continuous duty. Open drip-proof design with keyed shaft for secure operation.

Product Information

Standard Information

• MPN: B124
• Brand: Century
• Category: Pool Pump Motors

Technical Specifications

• HP: 2
• Frame: 56C
• Phase: Single
• Shaft: Keyed
• Finish: Black
• Height: 11 inches
• Weight: 32 pounds
• Voltage: 230V AC
• Body Diameter: 6.5 inches
• RPM Range: 3,001-3,600
• Standards: CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable
• Duty Cycle: Continuous
• Ins. Class: B
• Shaft Diameter: 5/8 inches
• Max SF Amps: 10.5
• Motor Design: Permanent Split Capacitor
• Shaft Length: 2 1/16 inches
• Nameplate RPM: 3,450
• No. of Speeds: 1
• Usable @ 200V: No
• Usable @ 208V: No
• Full Load Amps: 10.5
• Motor Bearings: Ball
• Overall Length: 12 9/16 inches
• Shaft Material: AISI 1215 Steel
• Motor Application: Pump
• Max. Ambient Temp: 50 Degrees C
• Motor Shaft Design: Keyed
• Ambient Temperature: 50 Degrees C
• Motor Mounting Type: Face
• Motor Frame Material: Steel
• Motor Service Factor: 1.2
• Motor Shaft Rotation: CCWSE
• Motor Flange Material: Aluminum
• Motor Sub Application: Pool and Spa Pump
• Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
• Motor Efficiency Group: Standard Efficient
• Motor Enclosure Design: Open Dripproof
• Motor Thermal Protection: Auto
• Country of Origin: Mexico
