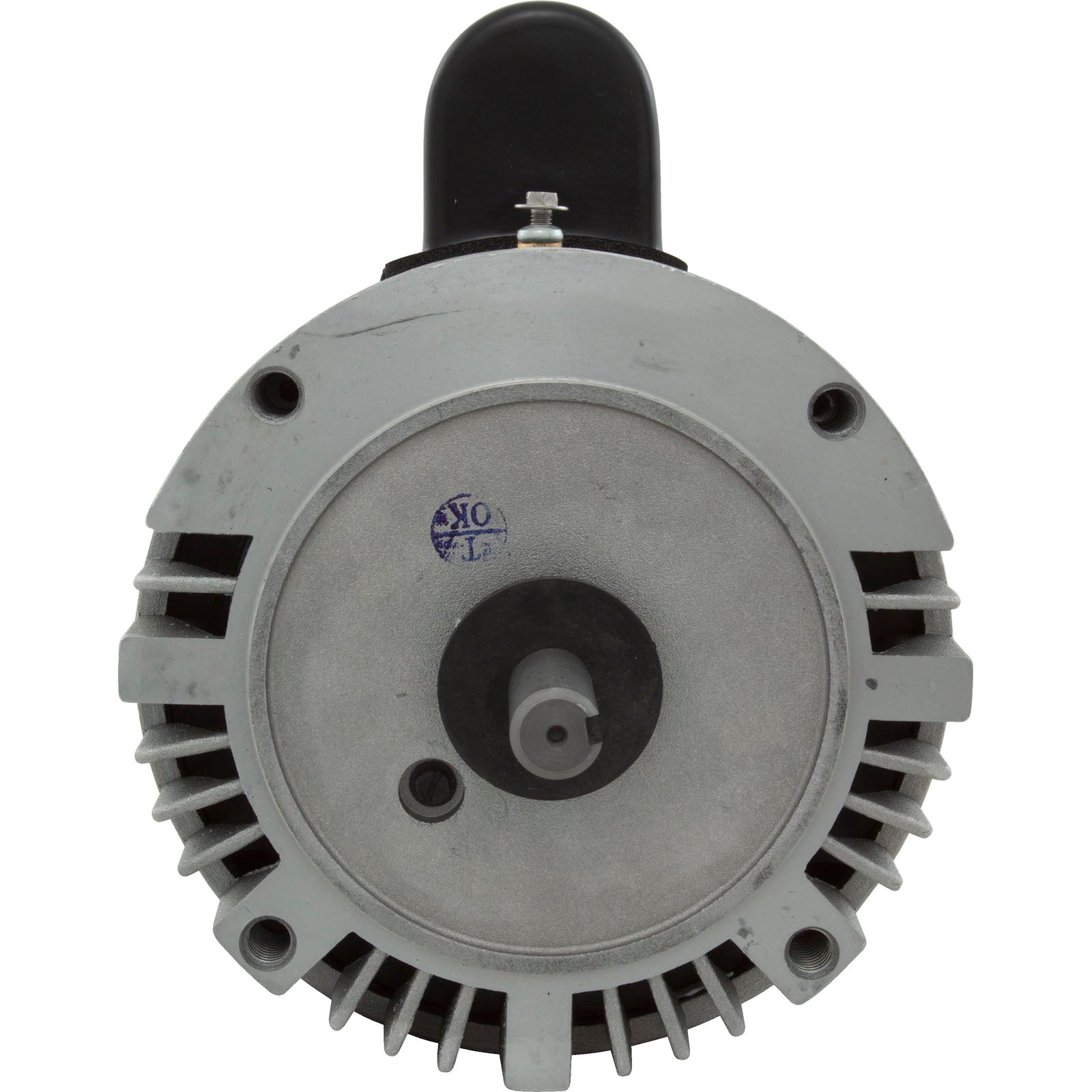

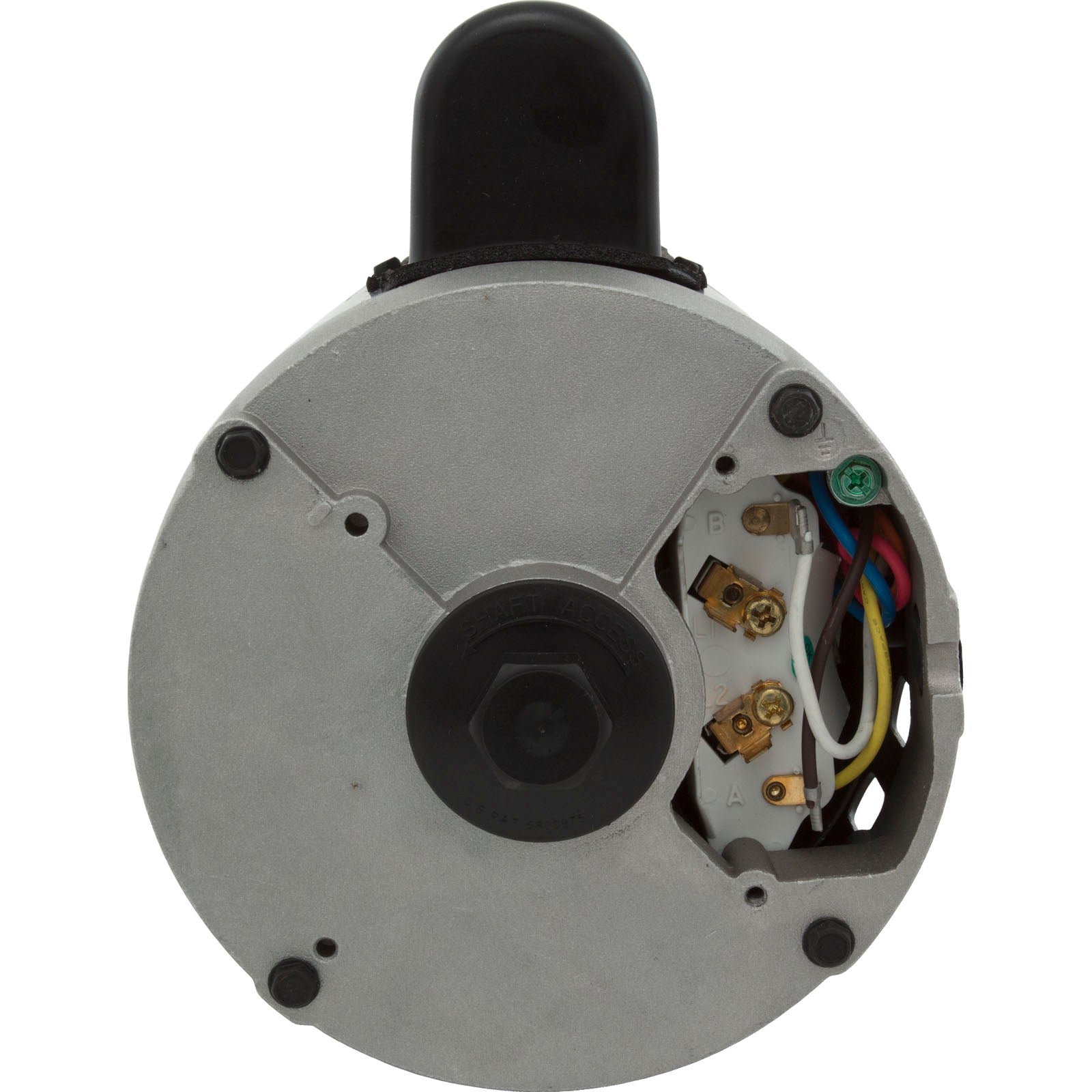

Century B122 Motor 1.0 HP 115V/230V 1-Spd M56C C-Face Key

Product Description

The Century B122 Motor is designed for optimal performance and efficiency. This motor delivers 1.0 HP and supports 115V/230V dual voltage, making it versatile for various applications, including pool and spa pumps.

• Powerful 1.0 HP motor
• Supports 115V/230V dual voltage
• Thermally protected open drip-proof design

Product Highlights

This motor is perfect for pump applications, ensuring reliable and continuous operation. It boasts a maximum speed of 3450 RPM and features a keyed shaft for easy installation.

Product Information

Standard Information

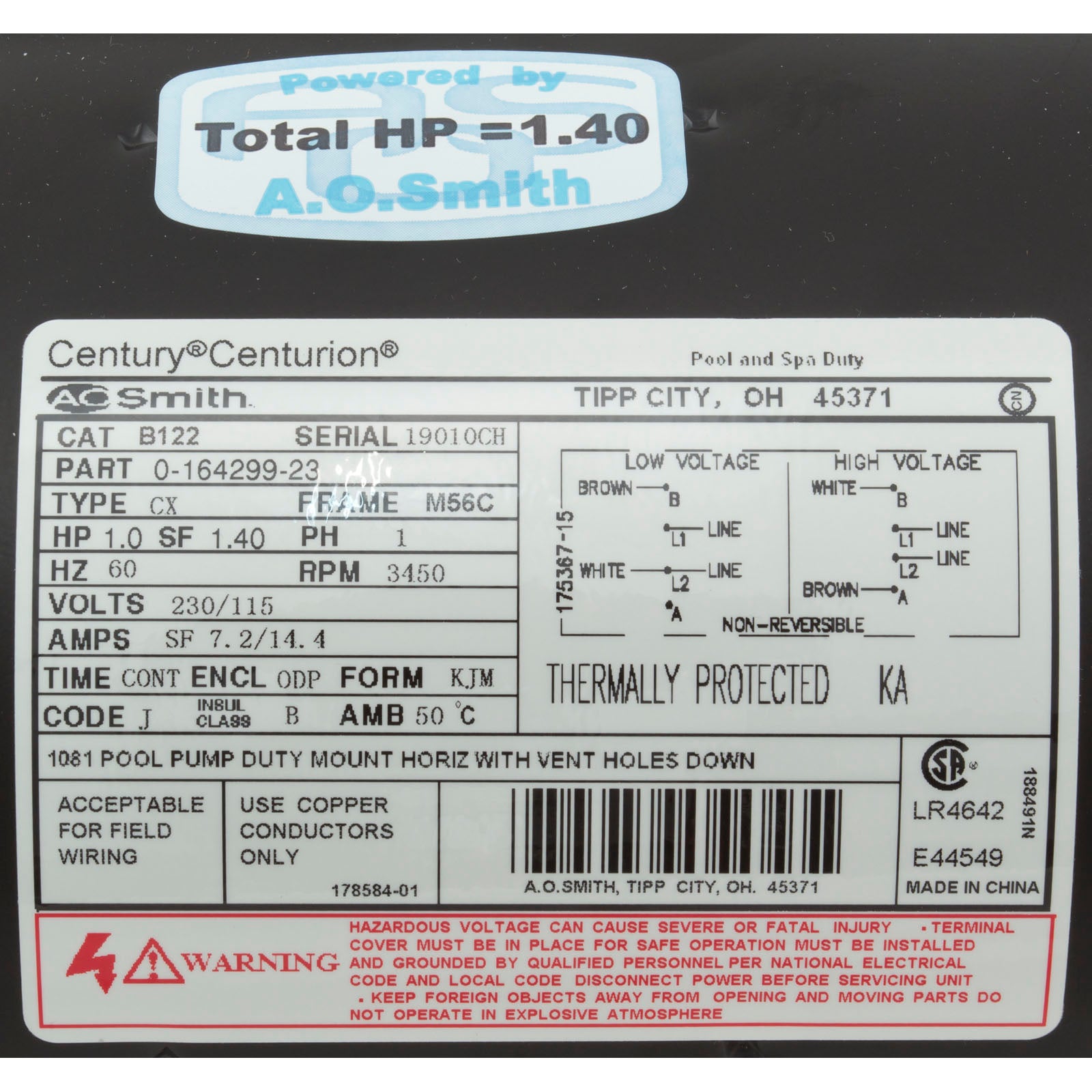

• CAT: B122
• MODEL: 164229
• Type: CX
• Frame: M56C

Technical Specifications

• HP: 1.0
• Service Factor: 1.40
• Phase: Single
• Frequency: 60 Hz
• RPM: 3450
• Rotation: CCWPE
• Voltage: 115/230V
• SF Amps: 7.2/14.4
• Time: Continuous
• Enclosure: Open Drip-Proof, Thermally Protected
• Form: KJM
• Code: J
• Insulation Class: B
• Ambient Temperature: 50 degrees Celsius
• Body Diameter: 6.5 inches
• Height: 11 inches
• Length Less Shaft: 9 13/16 inches
• Overall Length: 11 7/8 inches
• Motor Application: Pump
• Motor Bearings: Ball

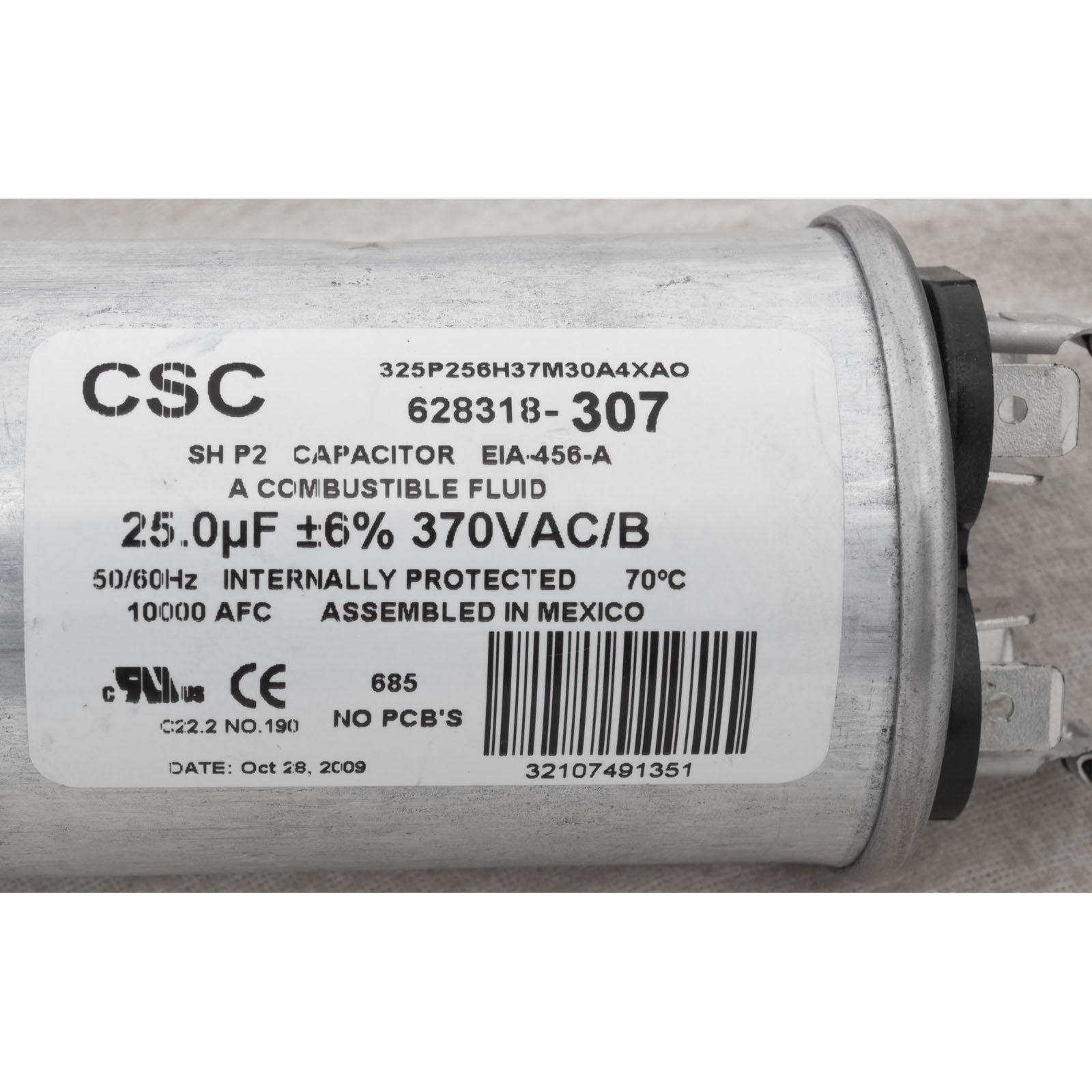

• Motor Design: Permanent Split Capacitor
• Motor Efficiency Group: Standard Efficient
• Motor Frame Material: Steel
• Motor Service Factor: 1.4
• Motor Shaft Diameter: 5/8 inches
• Motor Shaft Length: 2 1/16 inches
• Motor Shaft Material: AISI 1215 Steel
• Motor Sub Application: Pool and Spa Pump
• Motor Enclosure Design: Open Dripproof
• Motor Flange Material: Aluminum
• Motor Mounting Type: Face
• Motor Shaft Rotation: CCWSE
• Motor Thermal Protection: Auto
• Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
• Standards: CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable
• Country of Origin: China
