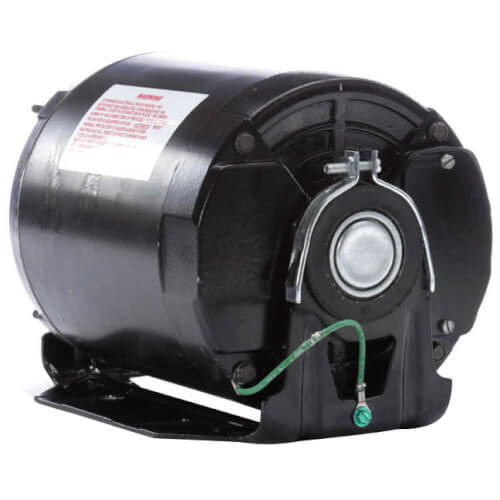

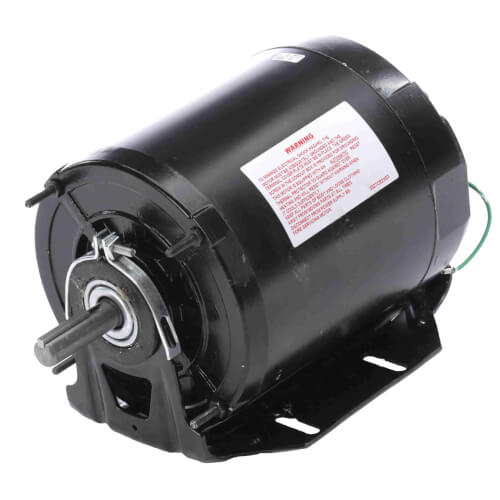

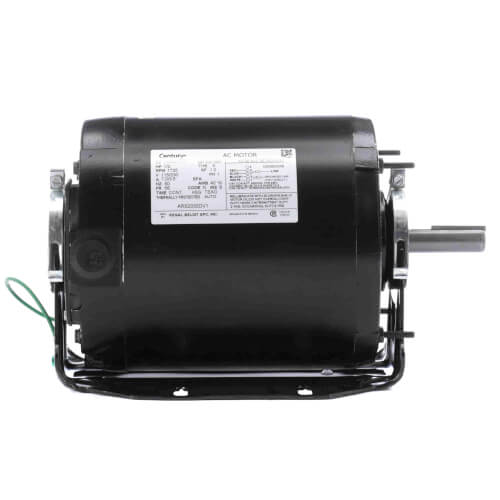

Century ARS2050DV1 6-1/2 Split Phase Resilient Base Sleeve Bearing Motor (115/230V, 1725 RPM, 1/2 HP)

Product Description

The Century ARS2050DV1 is a 6-1/2 inch split phase resilient base sleeve bearing motor. It operates at 115/230 volts and offers 1/2 horsepower with a speed of 1725 RPM.

• Continuous duty motor
• Reversible rotation
• Totally enclosed air over (TEAO) enclosure

Product Highlights

Perfect for HVAC applications, this split phase motor from Century ensures reliable performance and durability with features like an auto protector and sleeve bearings.

Product Information

Standard Information

• Brand: Century
• MPN: ARS2050DV1

Technical Specifications

• RPM: 1725
• Duty: Continuous
• Type: Split Phase
• Frame: 56
• Hertz: 60
• Mount: Resilient Base
• Phase: 1
• Poles: 4
• Speeds: 1
• Voltage: 115/230V
• Amperage: 7, 3.5
• Bearings: Sleeve
• Rotation: Reversible
• Horse Power: 1/2
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Insulation Class: B
• Diameter: 6-1/2 inches
• Overload Protection: Automatic
• Max Ambient Temp: 104 degrees Fahrenheit
