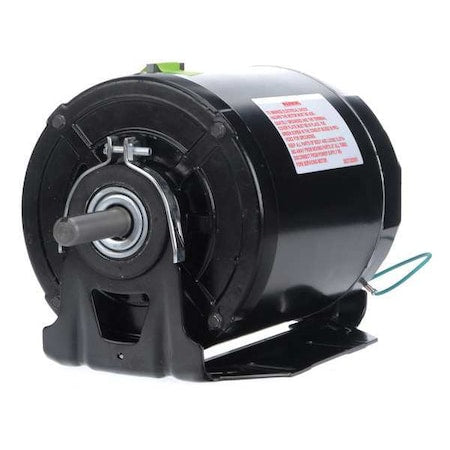

Century ARB2054L4 Fan and Blower Motor - 1/2 HP, 1725 RPM, 115/208-230V, 56 Frame

Product Description

The Century ARB2054L4 Fan and Blower Motor is a reliable component designed for HVAC applications. It offers efficient performance with a 1/2 horsepower, delivering 1725 RPM. This motor operates with a voltage range of 115/208-230V, ensuring compatibility with various systems.

• 1/2 horsepower motor
• 1725 RPM
• Voltage: 115/208-230V

Product Highlights

This fan and blower motor is suitable for blowers, fans, and air circulators in HVAC/R settings. With a durable rolled steel construction, it features a single-phase, split-phase design, and resilient mounting base for easy installation.

Product Information

Standard Information

• Brand: Century
• MPN: ARB2054L4

Technical Specifications

• Electrical Type: Split Phase
• Horsepower: 1/2
• KW: 0.37
• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 115/208-230V
• Rotation: REV
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting Type: Resilient Base
• Amperage: 6.8/3.1-3.4
• Shaft Type: Keyed
• Shaft Extension: 2.000 inches
• Shaft Diameter: 0.625 inches
• Applications: Blowers, Fans, Air Circulators
• Certification: CSA Certified, UL Recognized
• Insulation Class: B
• Ambient Temperature: 40 Degrees C
• Duty Cycle: Continuous
