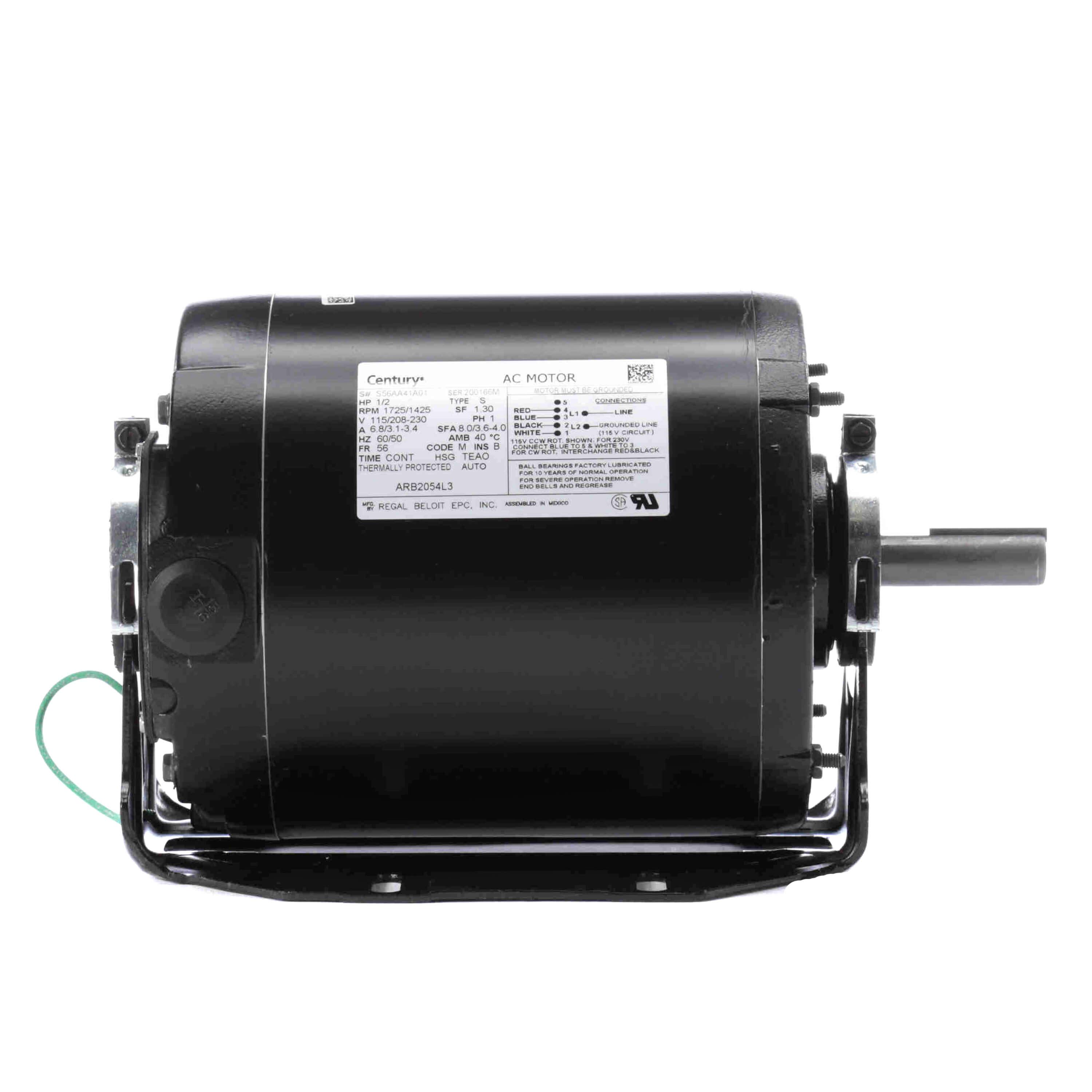

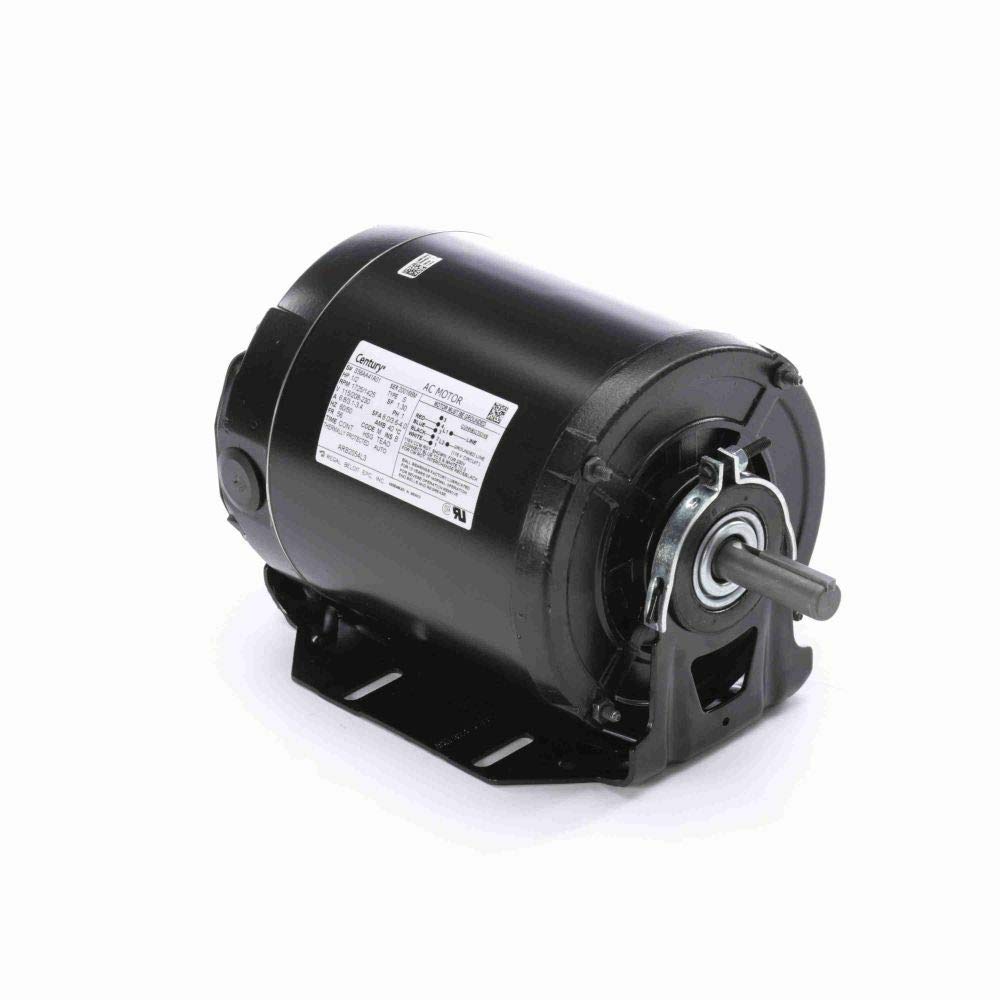

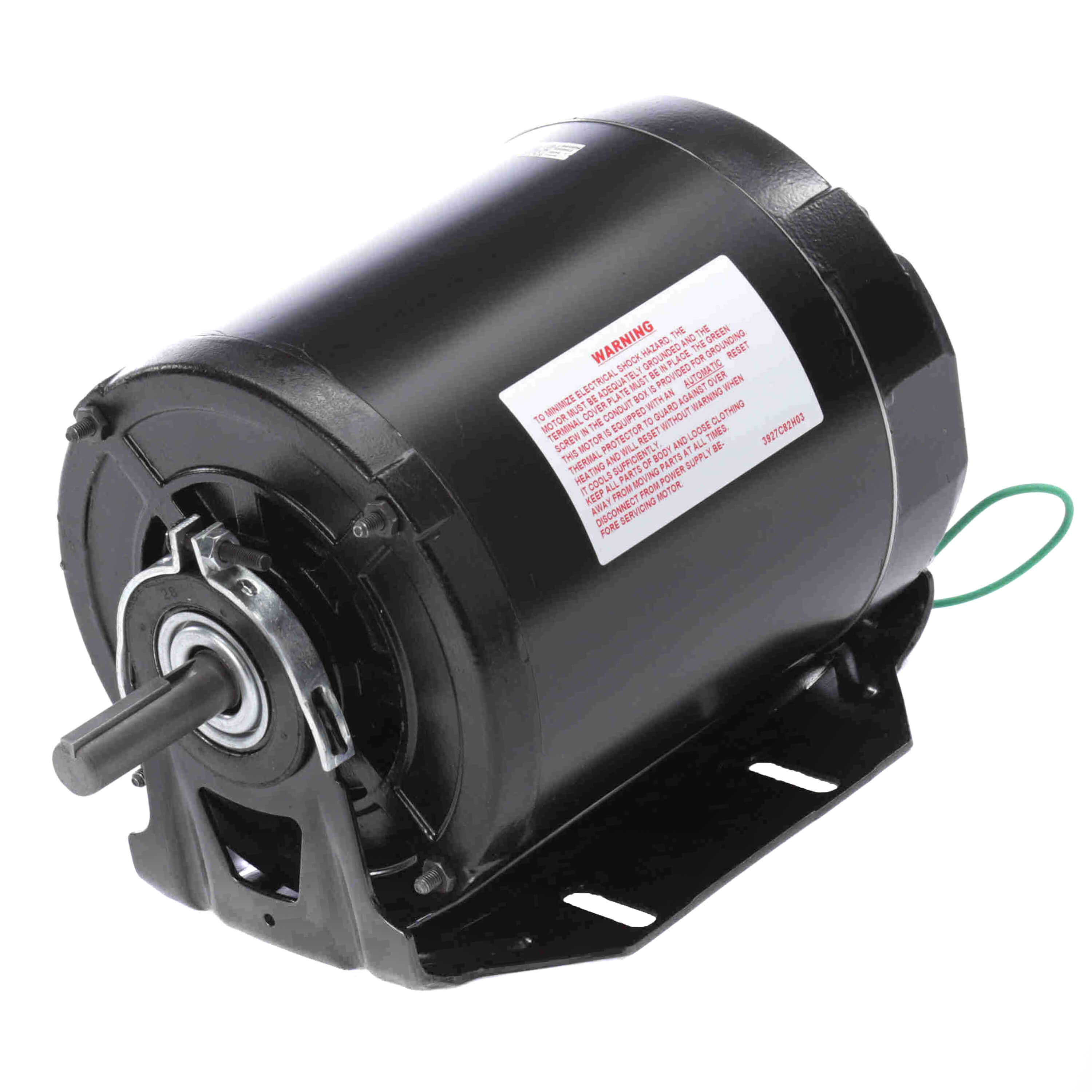

Century ARB2054L3 Fan and Blower Motor 1/2 HP 115/208-230V TEAO

Product Description

The Century ARB2054L3 is a reliable split-phase fan and blower motor with a capacity of one half horsepower. Designed for continuous duty applications, this motor operates at voltages of one hundred fifteen or two hundred eight to two hundred thirty volts. With a nameplate RPM rating of one thousand seven hundred twenty-five and one thousand four hundred twenty-five, it can handle various HVAC tasks.

• Rated at one half horsepower
• Full load amps of six point eight or three point one to three point four
• Totally enclosed air-over design for better protection

Product Highlights

This product is well-suited for use in blower and fan applications. It features an automatic thermal protection system, ensuring safe operation even during extended use.

Product Information

Standard Information

• Manufacturer: Century
• MPN: ARB2054L3

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 115/208-230V
• Frame Size: 56
• RPM: 1725/1425
• Amperage: 6.8/3.1-3.4
• Service Factor: 1.3
• Mounting Type: Cradle Base
• Insulation Class: B
• Maximum Ambient Temperature: 40 Degrees C
• Weight: 24 lb
