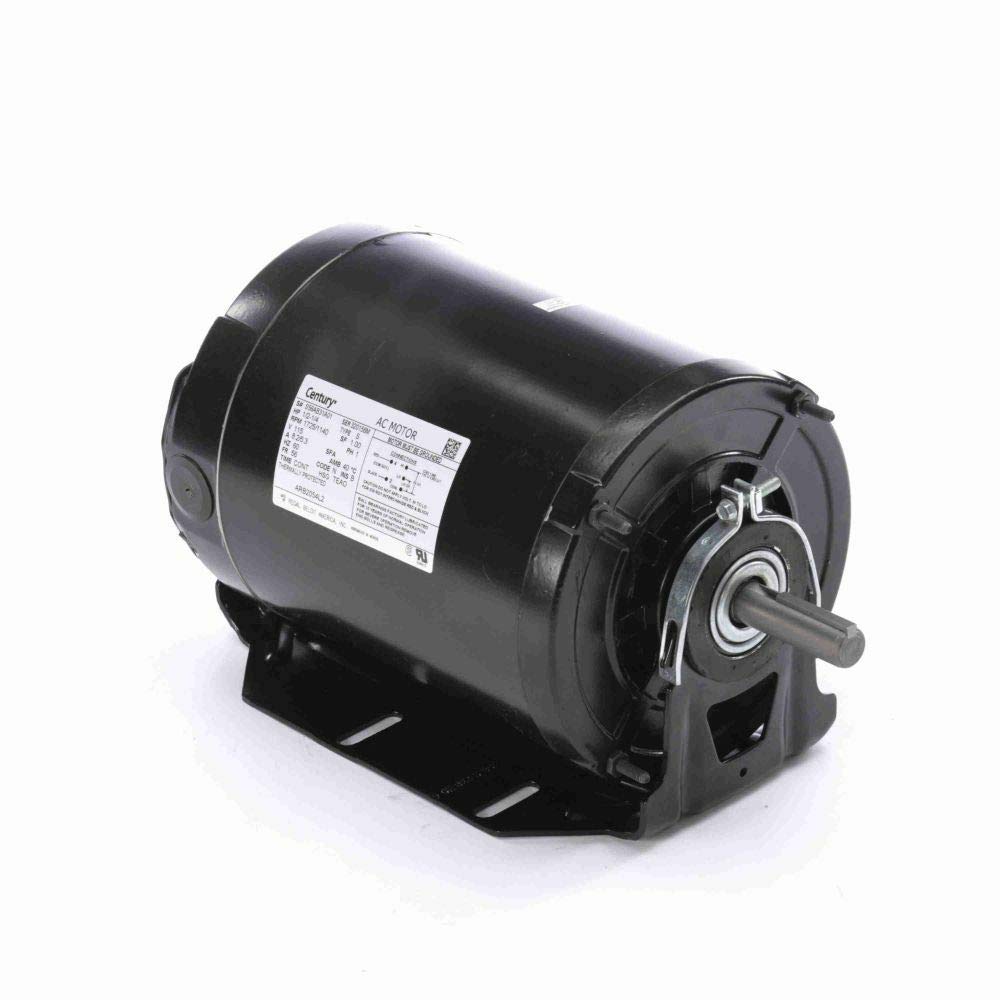

Century ARB2054L2 Motor Split Ph 1/2 HP 1725 115V 56 TEAO

Product Description

The Century ARB2054L2 Motor is a split-phase motor designed for direct drive blower applications. With a power rating of 1/2 HP and a nameplate RPM of 1725, this motor operates on 115 volts and is suitable for various HVAC/R applications.

• Direct drive blower motor
• 1/2 HP power rating
• 115 volts operation

Product Highlights

Ideal for use in blowers, fans, and air circulators, the motor features a totally enclosed air-over enclosure, ensuring durability and reliability in various settings. The motor also includes ball bearings and offers continuous duty performance.

Product Information

Standard Information

• Brand: Century
• MPN: ARB2054L2
• Power: 1/2 HP
• Voltage: 115

Technical Specifications

• Motor Type: Split-Phase
• Enclosure: Totally Enclosed Air-Over
• Nameplate RPM: 1725/1140
• Full Load Amps: 8.2/5.3
• Frame: 56
• Insulation Class: B
• Mounting Type: Cradle Base
• Number of Speeds: 1
• Rotation: CW/CCW
• Shaft Orientation: Horizontal
• Bearings: Ball
• Body Diameter: 6.5 inches
• Length Less Shaft: 9-13/16 inches
• Max. Ambient Temp.: 40 degrees Celsius
• Duty: Continuous
• Thermal Protection: None
