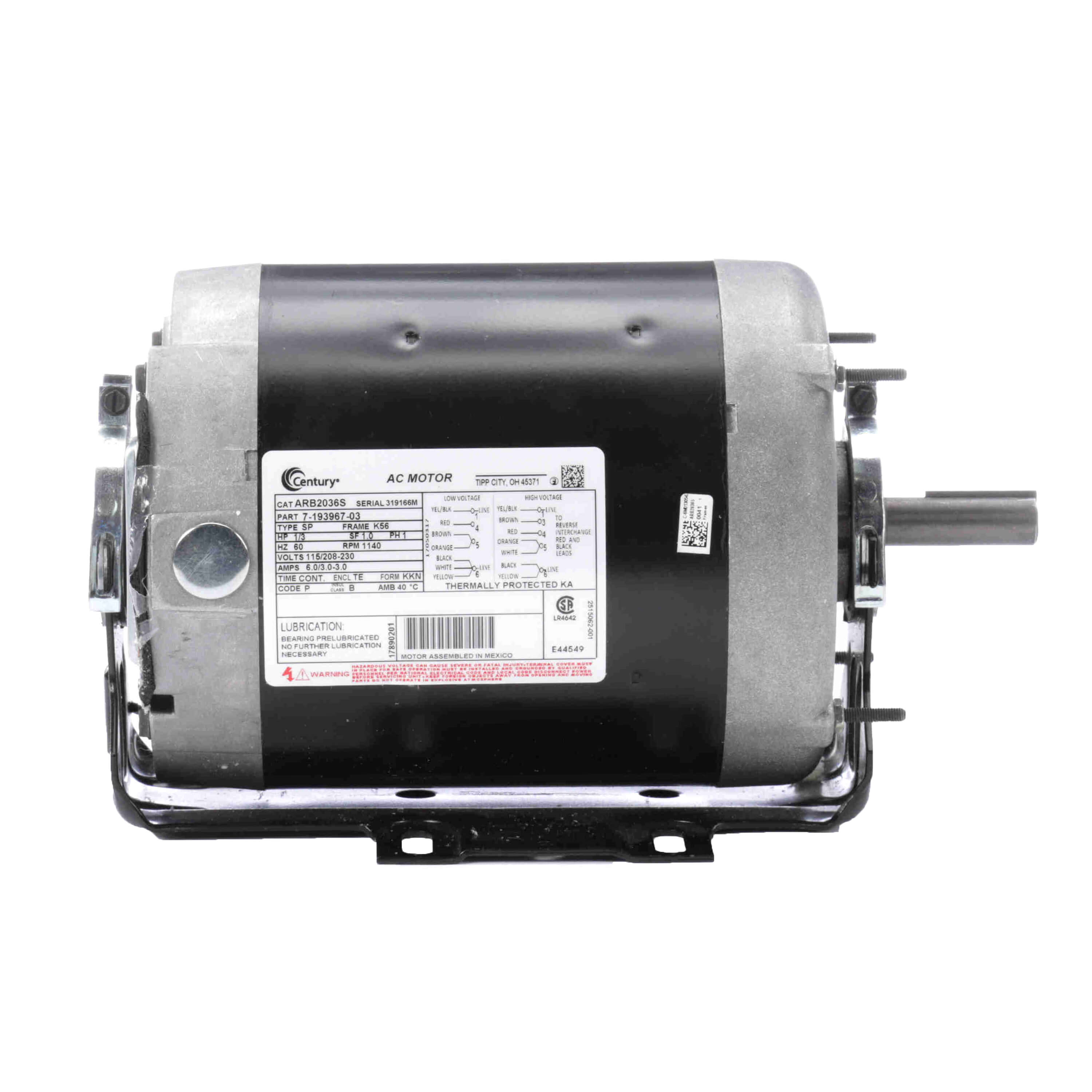

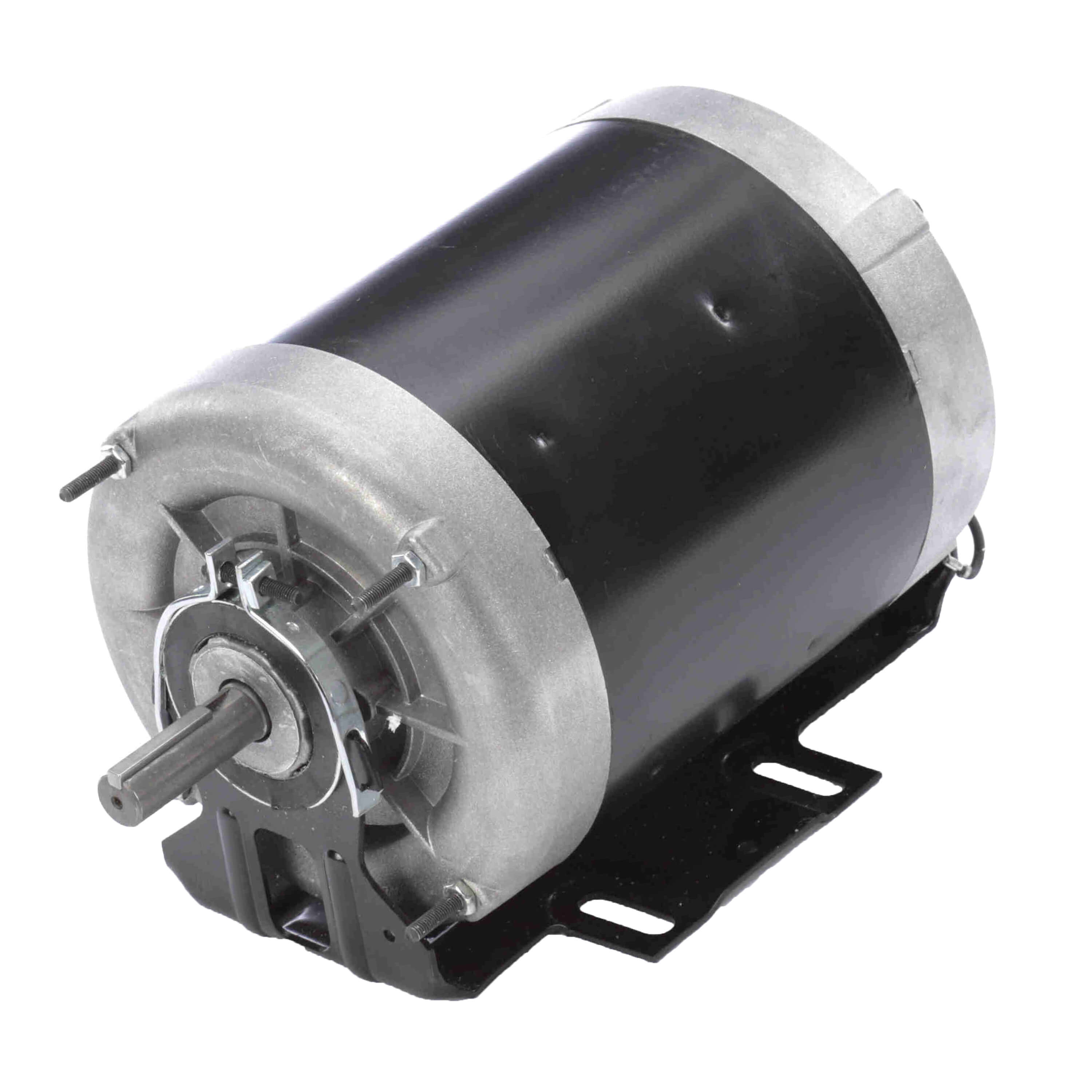

Century ARB2036S Belt Drive Fan and Blower Motor - 1/3 HP, 1140 RPM, 115/208-230V, 56 Frame, TEAO, Ball Bearing

Product Description

The Century ARB2036S Belt Drive Fan and Blower Motor is a reliable option for HVAC professionals. This motor features a split-phase design and provides 1/3 HP of power. It's capable of running at 1140 RPM and operates on 115/208-230 volts.

• 1/3 HP
• 1140 RPM
• 115/208-230 volts

Product Highlights

This motor is reversible and offers continuous duty with ball bearing construction for durability. It includes a thermally protected auto protector and has a totally enclosed non-ventilated enclosure for safe operation.

Product Information

Standard Information

• Brand: Century
• Model: ARB2036S
• Category: Fan Motors
• Size: 6.5 inches

Technical Specifications

• Electrical Type: Split Phase
• Horsepower: 1/3 HP
• RPM: 1140
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 115/208-230
• Rotation: Reversible
• Overload: Auto
• Material: Rolled Steel
• Mounting: Cushion Base
• Amperage: 6.0/3.0-3.0
• Shaft Type: Single
• Weight: 28 lbs
• Insulation Class: B
• Ambient Temperature: 104°F
