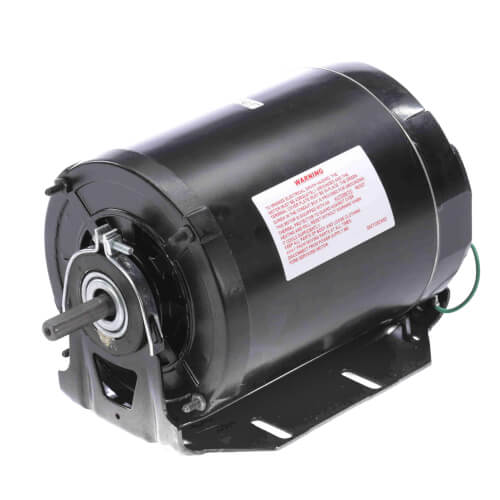

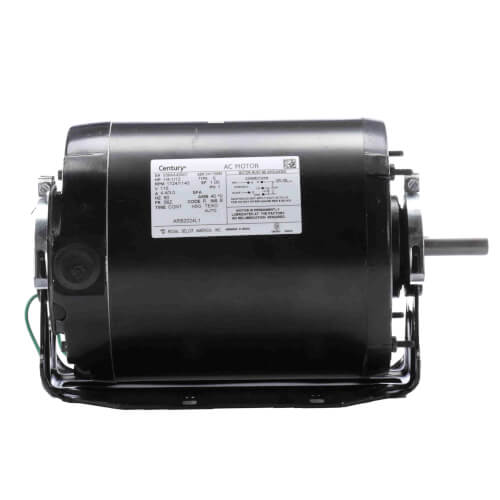

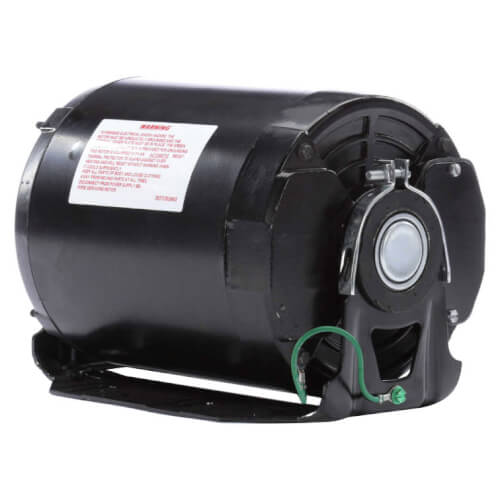

Century ARB2024L1 Split Phase Belted Drive Ball Bearing Motor 115V 1725/1140 RPM 1/4 /12 HP

Product Description

The Century ARB2024L1 Split Phase Belted Drive Ball Bearing Motor is designed with HVAC applications in mind. This motor operates on 115V and delivers 1725/1140 RPM with a horsepower of 1/4 and 1/12. Whether you need a motor for a blower or fan, this product provides reliable and efficient performance.

• 1/4 - 1/12 HP
• 115 Volt, 1725/1140 RPM
• Auto Overload Protector

Product Highlights

This motor features a resilient base for easy mounting and is enclosed to protect from external elements. It offers reversible rotation and comes with an auto overload protector to ensure safety during operation.

Product Information

Standard Information

• Brand: Century
• MPN: ARB2024L1

Technical Specifications

• Horse Power: 1/4, 1/12
• Voltage: 115V
• Amperage: 4.4, 3
• RPM: 1725/1140
• Frame: 56Z
• Bearings: Ball
• Insulation Class: B
• Overload Protection: Automatic
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Mount: Resilient Base
• Rotation: Reversible
• Shaft Length: 1 5/8 inches
• Diameter: 6 1/2 inches
• Weight: 25 pounds
• Duty: Continuous
