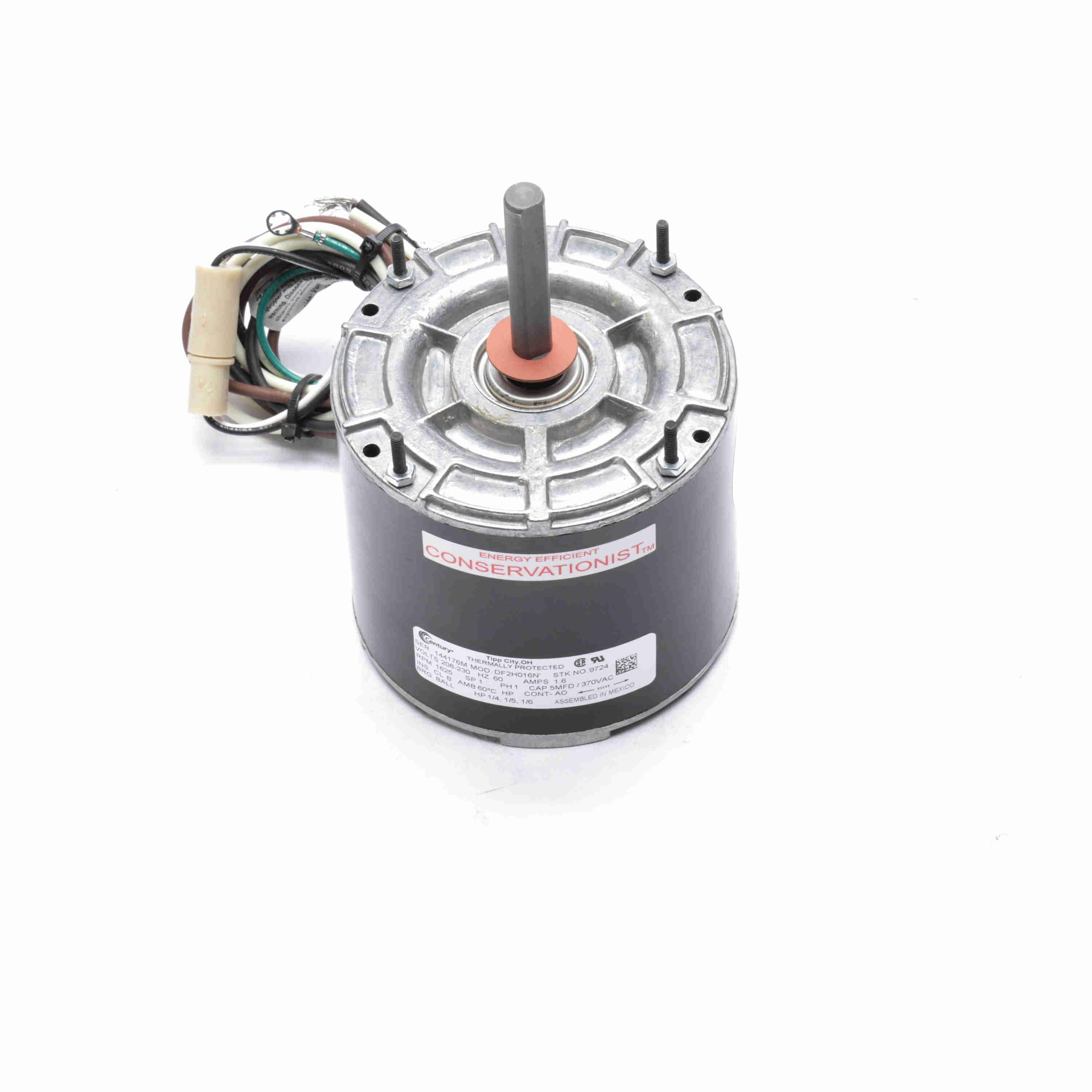

Century 9724 MultiFit Condenser Fan AC Motor, 1/4 to 1/6 hp, 208 to 230 VAC

Product Description

The Century MultiFit 9724 is a condenser fan AC motor designed for reliable use in various applications. Operating at one-fourth to one-sixth horsepower, it functions efficiently at 208 to 230 volts and sixty hertz with a single phase. This motor features a speed of 1625 revolutions per minute. It fits a standard 42 frame and has an enclosed design, making it suitable for diverse environments.

• Energy-efficient permanent split capacitor (PSC) motor
• Reversible rotation for versatile applications
• Durable ball bearing design for long service life

Product Highlights

This motor suits a variety of condenser fan motor applications, ensuring dependable performance with energy efficiency.

Product Information

Standard Information

• Brand: Century
• Manufacturer: Regal Beloit

Technical Specifications

• Horsepower: 1/4 to 1/6 hp
• Voltage Rating: 208 to 230 VAC
• Amperage Rating: 1.6 A
• Frequency Rating: 60 Hz
• Number of Speeds: 1
• Speed: 1625 rpm
• Frame: 42
• Dimensions: 5 in Dia
• Shaft Size: 1/2 in Dia x 3 in L
• Bearing Type: Ball
• Enclosure Type: Enclosed
• Rotation: Reversible
• Service Factor: 1
• Temperature Rating: 60 deg C
• Insulation Class: Class B
