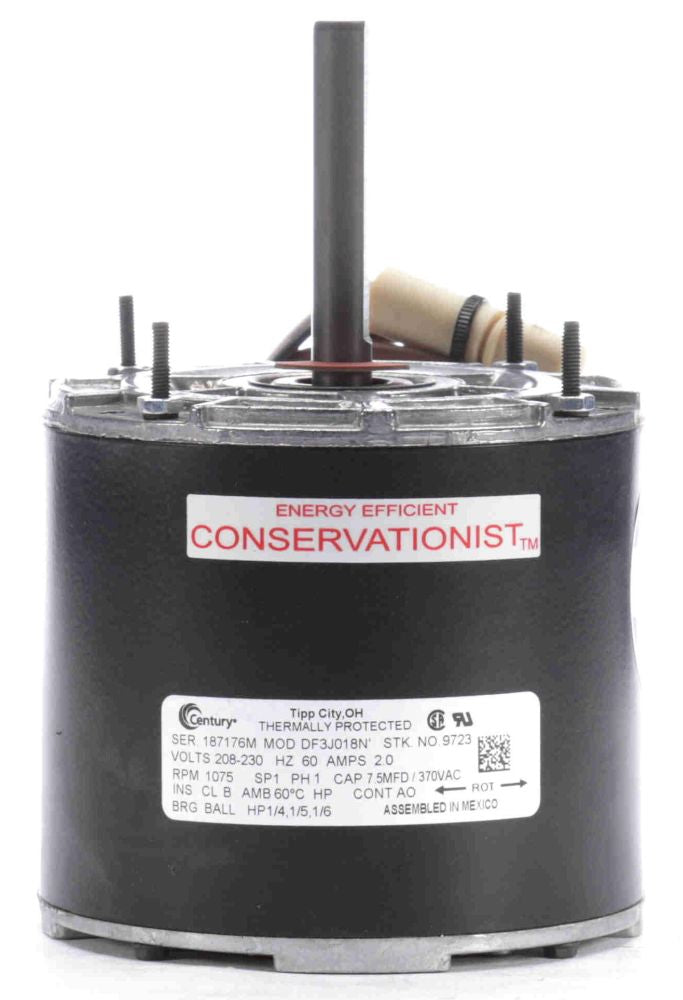

Century Motors 9723 Condenser Fan Motor 1/4, 1/5, 1/6 HP 208-230 VAC 60 Hz

Product Description

The Century Motors model 9723 is a condenser fan motor with a 1/4 HP rating and operates at 208 to 230 VAC, 60 Hz. This motor features a six-pole design and runs at a speed of 1075 RPM. It is suitable for applications requiring a reliable and efficient motor for cooling systems.

• Reversible rotation for flexibility in installation.
• Includes a double-sealed ball bearing for improved performance.
• Designed for all-angle mounting, making installation easy.

Product Highlights

This motor is ideal for HVAC applications, especially condenser fans. Its energy-efficient design helps reduce operational costs.

Product Information

Standard Information

• Brand: Century Motors
• Type: Permanent Split Capacitor (PSC)

Technical Specifications

• Power Rating: 1/4 HP, 1/5 HP, 1/6 HP
• Voltage Rating: 208 - 230 VAC
• Speed Rating: 1075 RPM
• Frame Size: 42
• Number of Speeds: 1
• Amperage Rating: 2 A
• Insulation Class: B
• Weight: 12 pounds
