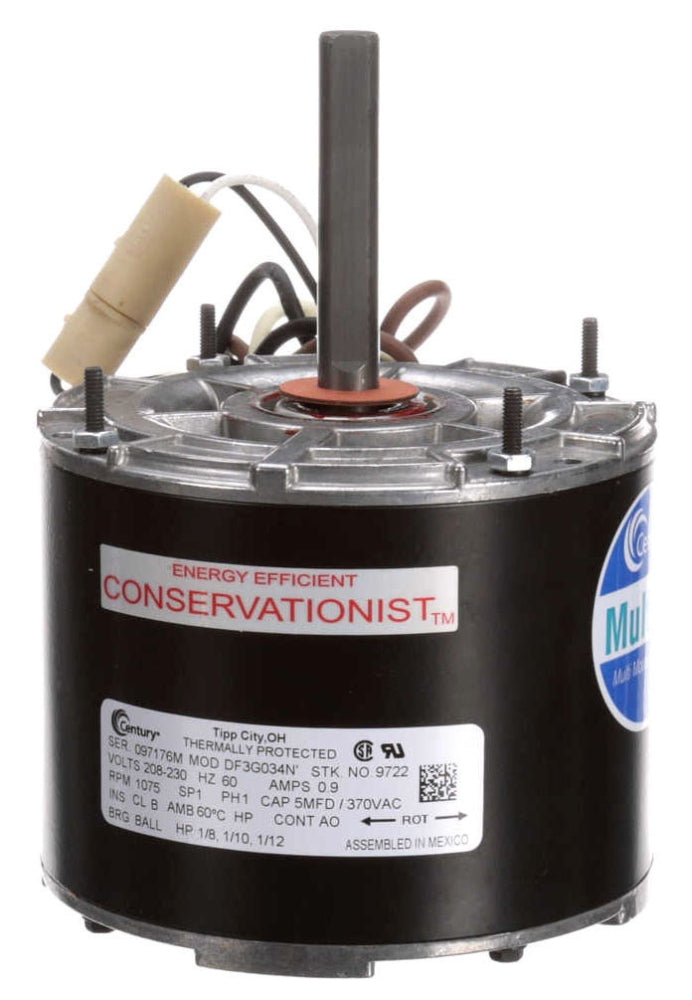

Century Motors 9722 1/8 HP 208-230 VAC 60 Hz 1-Phase 0.9 A 6-Pole 1075 RPM 1-Speed

Product Description

The Century Motors 9722 is a condenser fan motor with a power rating of one-eighth horsepower. It operates on 208 to 230 volts AC at sixty hertz, suitable for one-phase applications. The motor features a six-pole design and runs at a speed of one thousand seventy-five revolutions per minute, ensuring effective airflow for various HVAC systems.

• Rated power of one-eighth horsepower
• Voltage range of 208 to 230 volts AC
• Reversible motor with double sealed ball bearings

Product Highlights

This motor is designed for efficiency and reliability in condenser fan applications, with automatic thermal protection.

Product Information

Standard Information

• Brand: Century Motors
• Manufacturer Part Number: 9722

Technical Specifications

• Power Rating: 1/8 HP, 1/10 HP, 1/12 HP
• Voltage: 208 to 230 VAC
• Frequency: 60 Hz
• Current: 0.9 A
• Speed: 1075 RPM
• Number of Poles: 6
• Frame Size: NEMA 42
• Mounting: Extended stud
• Insulation Class: B
