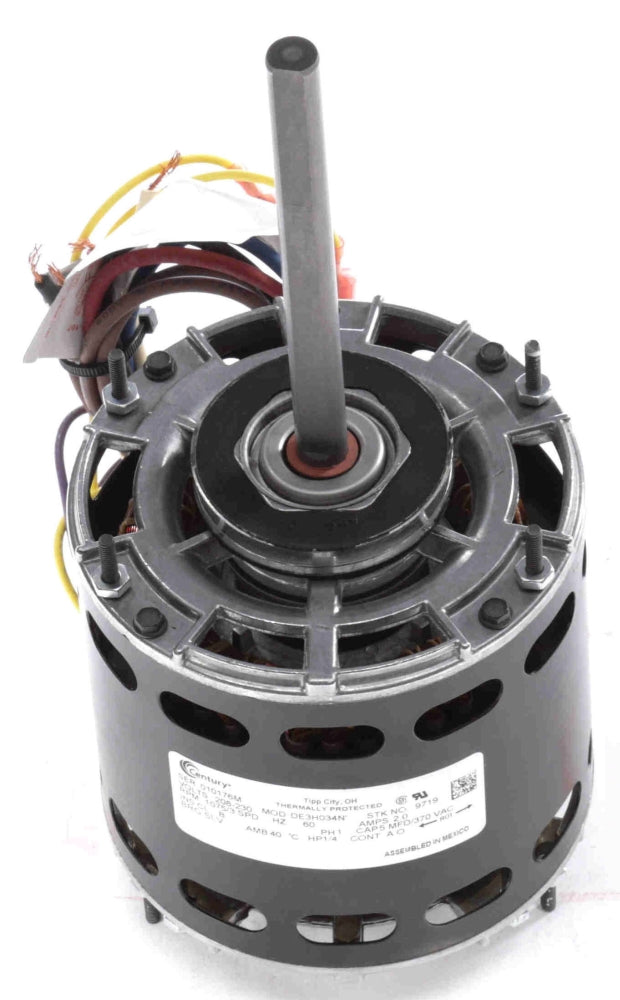

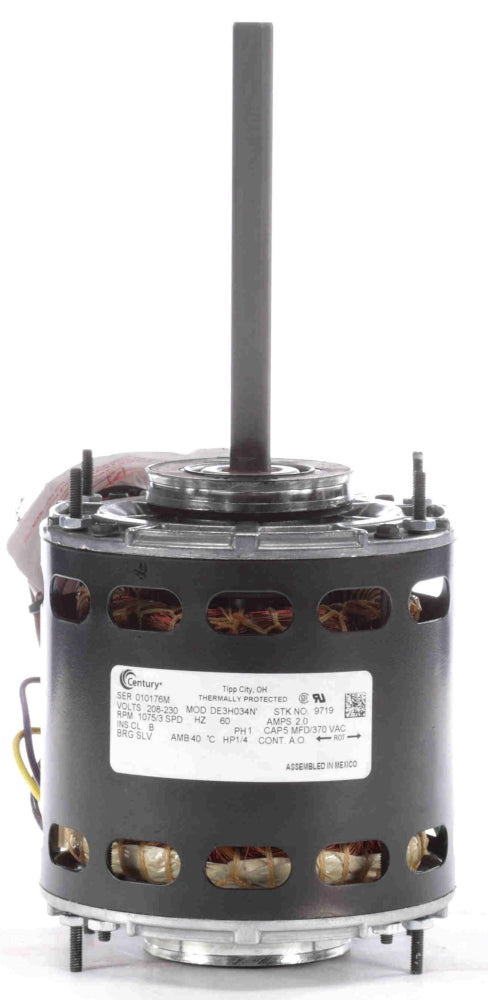

Century 9719 Blower Motor 1/4 HP 208 to 230 VAC 60 Hz 3-Speed NEMA 42Y

Product Description

The Century Motors 9719 is a blower motor designed for various HVAC applications. This motor operates at one-fourth horsepower and is compatible with voltages from two hundred eight to two hundred thirty AC, single-phase. It features a six-pole design and operates at a speed of one thousand seventy-five revolutions per minute (RPM).

• Power rating: 1/4 HP
• Voltage: 208 to 230 VAC
• Three-speed options available

Product Highlights

This motor is suitable for use in furnace blowers, air handlers, and fan coils. It includes a resilient ring mount for easy installation and is reversible for flexible operation.

Product Information

Standard Information

• Manufacturer: Century Motors
• Application: Furnace Blower, Air Handler, Fan Coil, Air Conditioning

Technical Specifications

• Power Rating: 1/4 HP, 1/5 HP, 1/6 HP
• Voltage Rating: 208 to 230 Volt AC, 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 0.9 Amp, 2 Amp, 1.4 Amp
• Number of Speeds: 3
• Speed Rating: 1075 RPM
• Reversible: Yes
• Service Factor: 1
• NEMA Frame Size: 42Y
• Insulation Class: B
• Frame Material: Rolled Steel
• Mounting: Resilient Ring
• Weight: 12 Pound
• Shaft Type: Flat
• Bearing Type: Sleeve (Drive End/Opposite Drive End)
• Number of Poles: 6
• Size: 5 Inches Diameter x 11.53 Inches Length
• Ambient Temperature Rating: 40 Degrees Celsius
