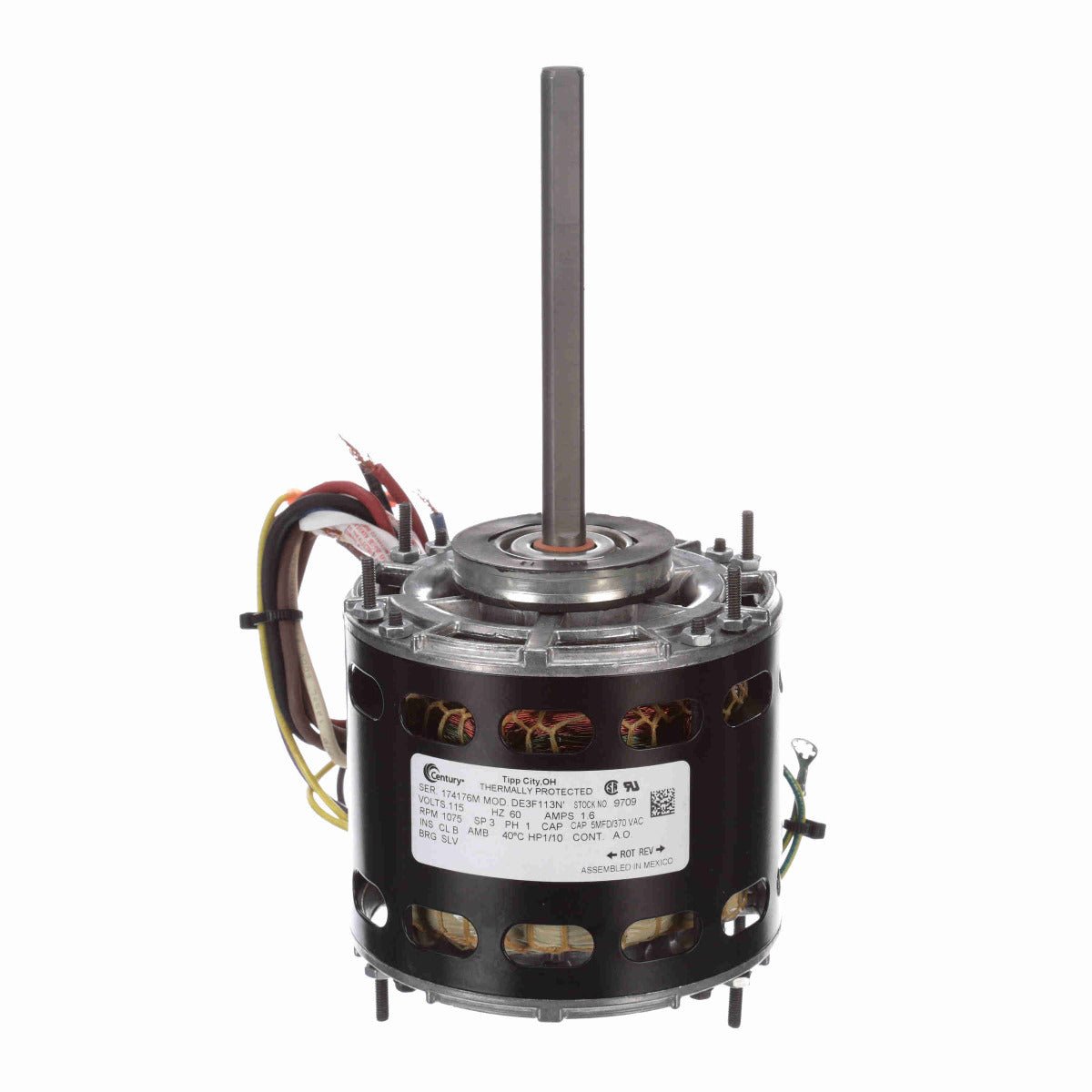

Century Motors 9709A Fan Coil and Air Conditioner Motor 1/10 HP

Product Description

The Century Motors 9709A is a single-phase motor specifically designed for various HVAC applications, including furnace blowers, air handlers, fan coils, and air conditioning units. This motor operates efficiently at one-tenth horsepower and is compatible with a voltage of one hundred fifteen volts. It runs at a speed of one thousand seventy-five RPM with three adjustable speeds to meet different airflow requirements.

• Features an open air over enclosure for effective cooling.
• Includes automatic thermal protection for reliability.
• Requires a separate capacitor of five Mfd-370 Volts (not included).

Product Highlights

This motor is ideal for those in HVAC installations and repairs, ensuring stable performance across various systems.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: 9709A

Technical Specifications

• Phase: 1
• Output HP: 1/10 HP
• Voltage: 115 V
• Frequency: 60 Hz
• Speed: 1075 RPM
• Number of Speeds: 3
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Current: 1.7 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Resilient Rings
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 4.33 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6 inches
