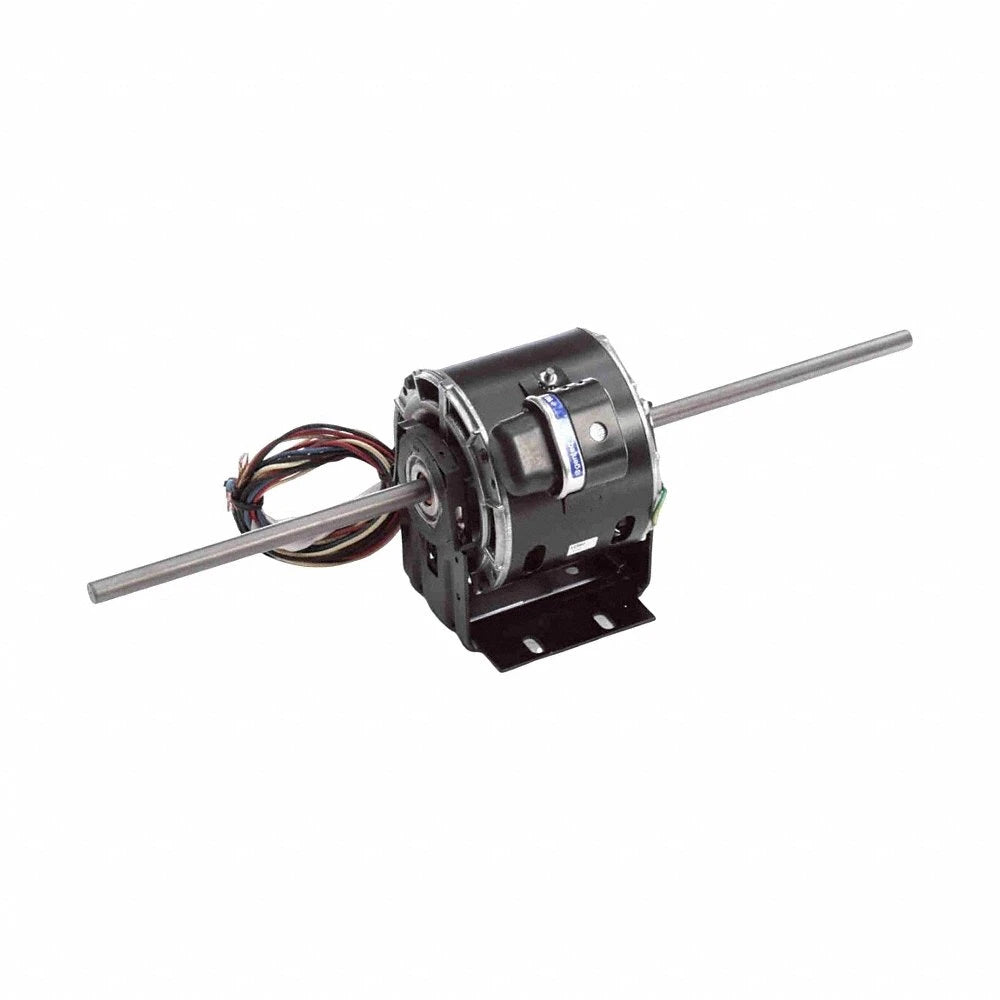

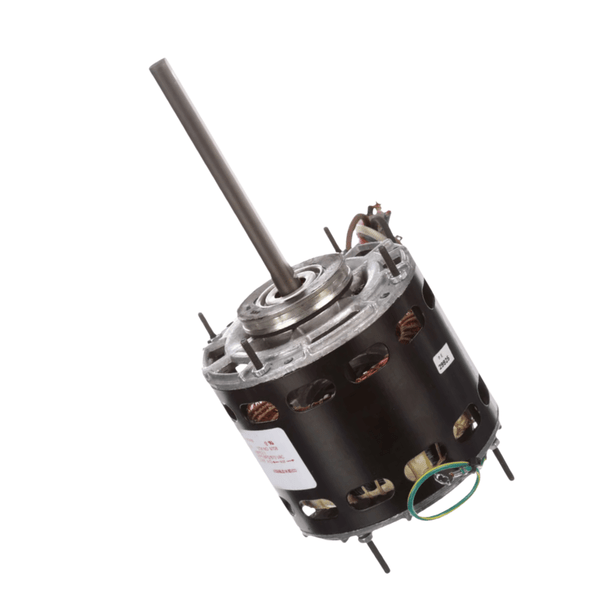

CENTURY MOTORS 9708A Fan Coil & Air Conditioner Motor 1/10 HP

Product Description

The CENTURY MOTORS 9708A is a 1/10 HP fan coil and air conditioner motor suitable for use in furnace blowers, air handlers, and air conditioning units. This motor has a five-inch diameter and operates with a 42 frame size. It requires a capacitor of five Mfd-370 Volts, which is not included in the package. The motor features thermal protection with an open air over design and is insulated to Class B standards, allowing it to run effectively at an ambient temperature of forty degrees Celsius.

• Thermal protection with open air over design
• Ball bearing construction for smooth operation
• Requires a specific capacitor (not included)

Product Highlights

Designed for reliable performance in various applications, the CENTURY MOTORS 9708A offers robust thermal protection and is suitable for residential and light commercial uses.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: 9708A

Technical Specifications

• Phase: 1
• Output HP: 1/10 Hp
• Voltage: 115 V
• Speed: 1625 rpm
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 2.1, 0.97, 0.60 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible
• Mounting: Resilient Rings
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 4.33 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 5.75 in
• Mounting Type: Resilient Ring
• Motor Design: Permanent Split Capacitor
• Nameplate Horsepower @ 60 Hz: 1/10 hp
• Nameplate RPM @ 60 Hz: 1,625 RPM
• Nameplate Voltage @ 60 Hz: 115V AC
• Full Load Current @ 60 Hz: 0.60 A; 0.97 A; 2.1 A
• Motor Enclosure Type: Open Air Over
• Motor Thermal Protection: Auto
• Nameplate Service Factor @ 60 Hz: 1
• Body Diameter: 5 in
• Usable @ 208V: Not Usable at 208V
• Motor Shaft Rotation: CW/CCW
• Shaft Length: 5-3/4 in
• Length Less Shaft: 4-13/16 in
• Bearing Type: Ball
• Standards: CSA; UL
• Overall Length: 10-5/8 in
• Shaft Design: Keyed
• Product Type: Room Air Conditioner Motor
• Capacitor Required: Capacitor Not Included
• Mounting Position: Horizontal
• Sub Application: General Purpose
• Includes: Resilient Mounting Rings
• Bolt Circle Diameter: 4-5/8 in
• Wattage: 75 W
• Lead Length: 13 in
• Application: Room Air Conditioner
• Manufacturers Warranty: 2 yr
• Hertz: 60 Hz
• Rated RPM: 1625
• RPM Range: 1501-1700 rpm
• Height: 13.34 cm
• Length: 38.43 cm
• Width: 13.34 cm
• Country Of Origin: MX
