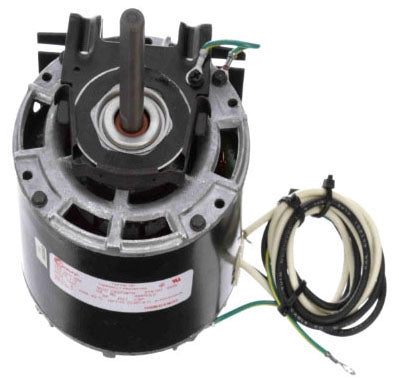

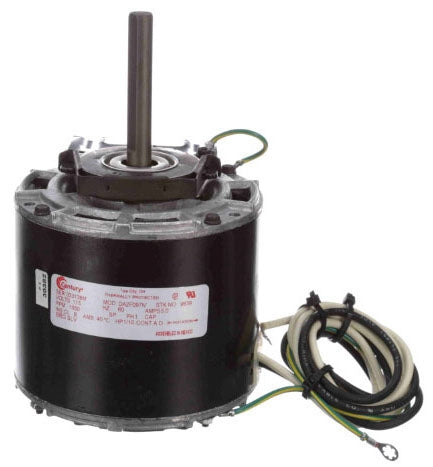

Century Motors 9639 1/10HP 1550RPM 115VAC 42Y Motor

Product Description

The Century Motors model 9639 is a robust 1/10 HP, 1550 RPM motor designed for dependable operation in HVAC applications. Engineered with a rolled steel frame and featuring a resilient base mount, this semi-enclosed air-over motor is built to last. Suitable for furnaces, attic ventilators, air handlers, and fan coils, the motor ensures efficient performance with its single-speed operation and shaded pole design.

• Effective cooling with semi enclosed, air-over motor construction.
• Reliable operation with UL and CSA approval.
• Convenient horizontal orientation with clockwise lead end rotation and resilient base mounting.

Product Highlights

This single-phase motor operates at 115 Volt AC, providing a steady 1550 RPM speed with a Class B insulation ensuring safety and durability. It features a flat shaft with a 0.5-inch diameter and a total size of 5 inches in diameter by 7.33 inches length.

Product Information

Standard Information

• Mount Type: Resilient Base
• Insulation Class: Class B

Technical Specifications

• Power Rating: 1/10 HP
• Voltage: 115 Volt AC 1-Phase
• Speed: 1550 RPM
• Frame Size: NEMA 42Y
• Bearing Type: Sleeve (Drive End/Opposite Drive End)
• Enclosure Type: Semi Enclosed, Air-Over
• Orientation: Horizontal
• Motor Type: Shaded Pole
