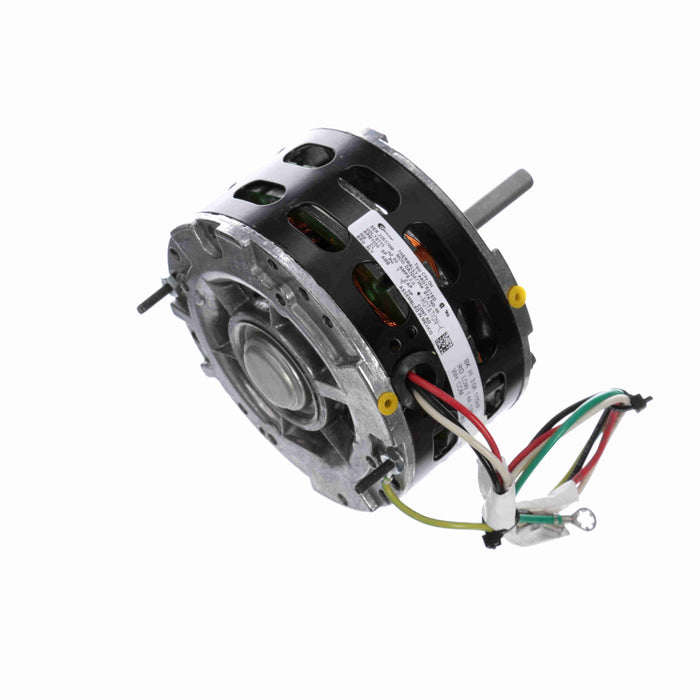

Century Motors 96 Ventilation Motor 1/15, 1/30 HP 1050 RPM

Product Description

The CENTURY MOTORS 96 ventilation motor is rated at 1/15, 1/30 HP, 1 Ph, 60 Hz, and 115 V with a speed of 1050 RPM. This motor is designed for furnace blowers, attic ventilators, air handlers and fan coil motor applications. It features open air over enclosure and automatic thermal protection.

• Thermally protected
• Class A insulation, 40°C ambient
• Sleeve bearing

Product Highlights

This Century ventilation motor is suitable for various HVAC applications, providing reliable performance and energy efficiency.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: 96
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1/15, 1/30 Hp
• Output KW: 0.05 kW
• Voltage: 115 V
• Speed: 1050 rpm
• Service Factor: 1
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 3.0 A
• Duty: Continuous Air Over
• Insulation Class: A
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 2
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 6
• Rotation: Clockwise Shaft End
• Mounting: Round Body, Stud
• Motor Orientation: Horizontal
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 5.68 in
• Frame Length: 2.17 in
• Shaft Diameter: 0.375 in
• Shaft Extension: 2.34 in
• Double Drilled: No
• C-Dimension: 5.09 in
• Removable Feet: No
• Greaseable: No
• Product Type: Shaded Pole
• Motor Diameter: 5 in
• Shaft Length: 2.34 in
• Duty Cycle: Continuous
