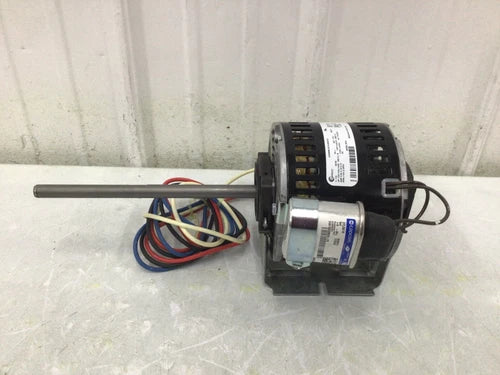

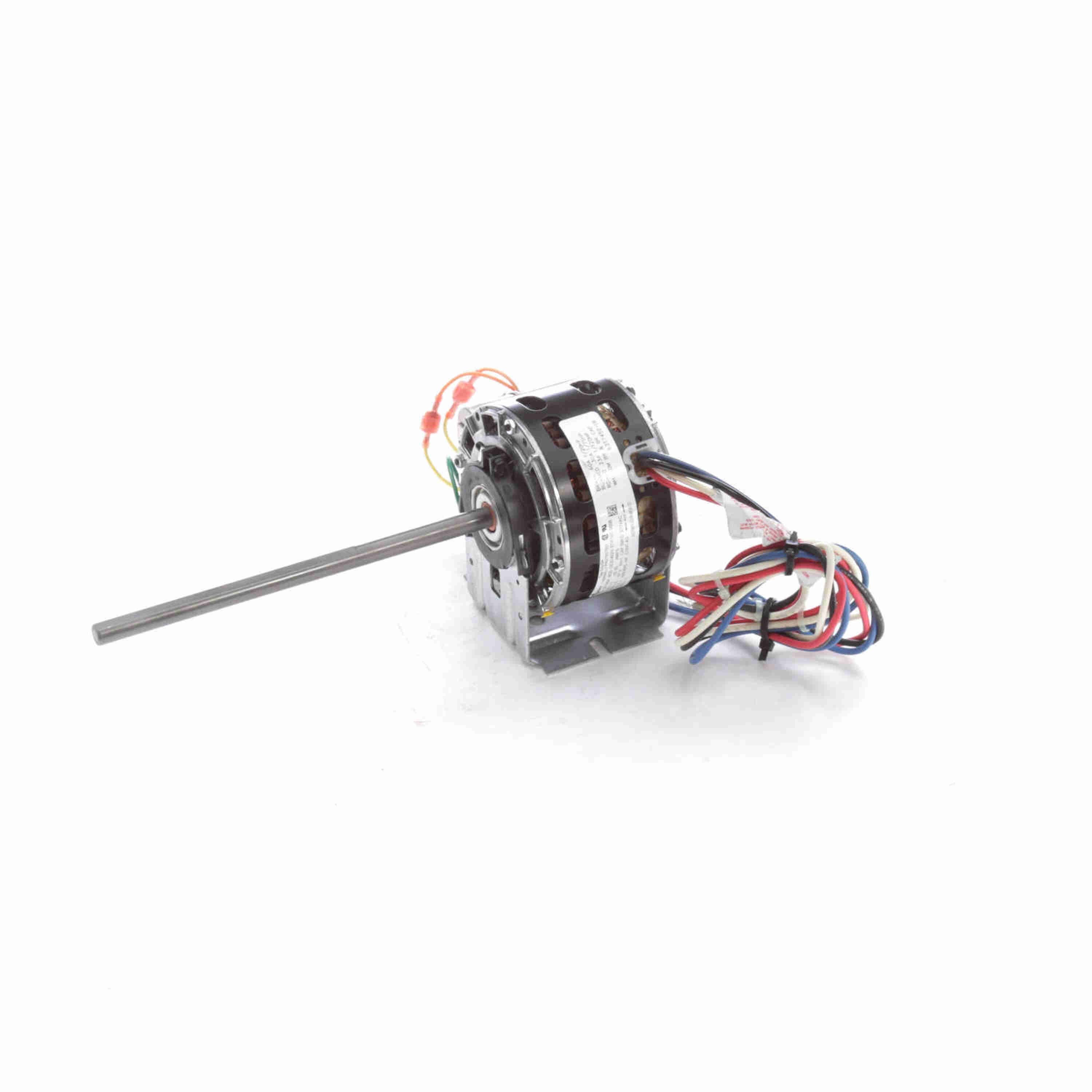

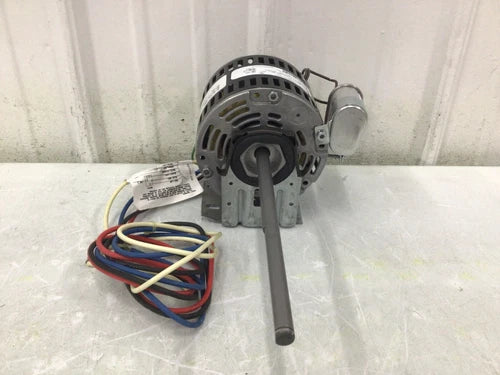

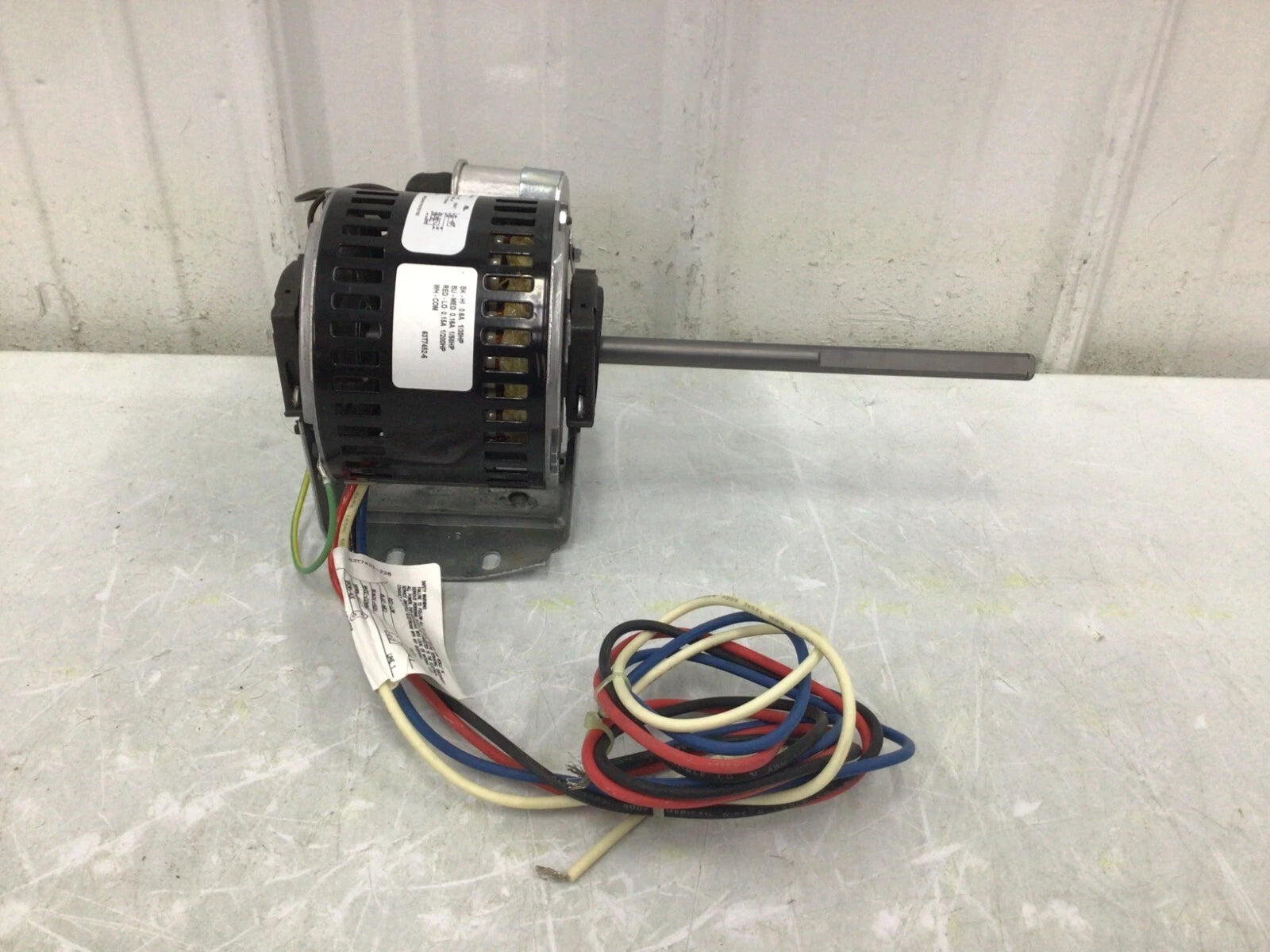

CENTURY MOTORS 954A OEM Replacement Motor

Product Description

The CENTURY MOTORS 954A is an OEM replacement motor designed for HVAC and refrigeration applications. This motor operates on 115VAC and is a permanent split capacitor type with multiple speed options. The open air-over enclosure allows for effective airflow and cooling. Built with thermal overload protection, it safeguards against overheating. The cradle base supports easy mounting and setup. The flat motor shaft design enables compatibility with various systems.

• Designed for HVAC/R applications
• Thermal overload protection included
• Cradle base for easy mounting

Product Highlights

This motor is a reliable choice for HVAC/R professionals looking for durable and efficient performance.

Product Information

Standard Information

• Brand: Century
• Item: OEM Replacement Motor

Technical Specifications

• MPN: 954A
• Motor Design: Permanent Split Capacitor
• Motor Enclosure Design: Open Air-Over
• Number of Speeds: 3
• Horsepower: 1/30; 1/200 HP
• Nameplate RPM: 1,100
• Input Voltage: 115VAC
• Full Load Amps: 0.6/0.2/0.2 A
• Phase: Single
• Duty Cycle: Continuous
• Frame: 42
• Motor Service Factor: 1
• Motor Thermal Protection: Auto
• Insulation Class: B
• Max. Ambient Temp.: 104 °F
• Motor Shaft Rotation: CWLE
• Motor Mounting Type: Cradle Base
• Shaft Diameter: 1/2 in
• Shaft Length: 8-1/2 in
• Overall Length: 12-1/2 in
• Body Diameter: 4.4 in
• Weight: 9 lb
• Replacement For: K48HXBHY-954
• Capacitor: 5 Mfd-370 Volts
