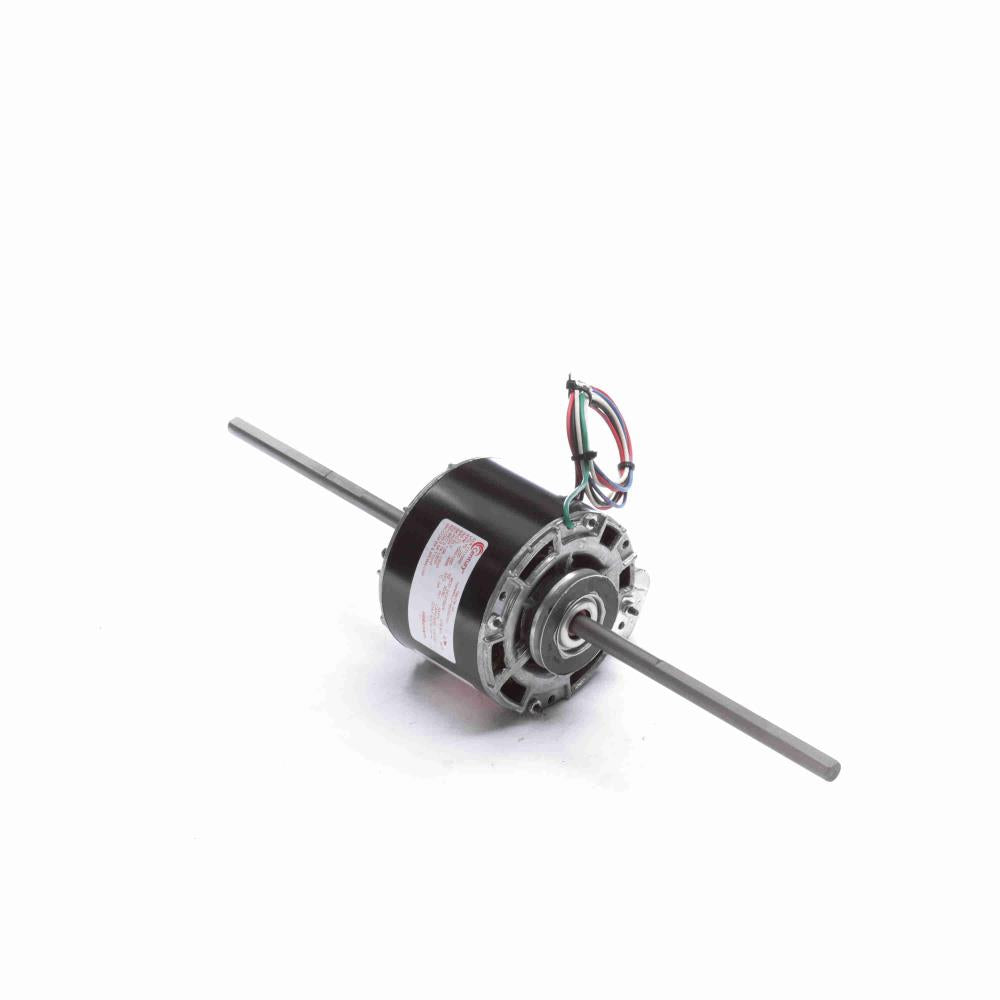

Century Motors 9475 - 1/6;1/8;1/12 230V 1550/1290
Century Motors 9475 - 1/6;1/8;1/12 230V 1550/1290

Century Motors 9475 - 1/61/81/12 230V 1550/1290

Brand: CENTURY MOTORS
SKU: 9475
Availability: Out Of Stock
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description
Description
Product
Brand Century Motors
U9475
Catalog Number 9475
Category Motor
Class Room Air Conditioner Motor
Country of Origin Mexico
UPC Number 786674008749
Specifications
Electrical Type Permanent Split Capacitor
Phase 1
Frame 42
HP 1/6
Kilowatts 0.13
Speeds 3
Enclosure OAO
Current (amps) 1.0
Voltage 230
RPM 1550
Rotation (SE) Clockwise Shaft End
Frequency (hz) 50/60
Bearings (DE/ODE) Sleeve/Sleeve
Overload Protection Automatic
Service Factor 1
Material Rolled Steel
Dimensions
Length (in) 22.87
Width (in) 8.81
Height (in) 8.81
Weight (lbs) 12
Cdim (in) 19.75
Frame Length (in) 3.17
Shaft Diameter (in) 0.500
Shaft Extension (in) 7 7/8
Features
  • Ambient (celsius): 40
  • Insulation Class: A
  • Duty: Continuous Air Over
  • Mounting: Resilient Rings
  • Orientation: Horizontal
  • Poles: 4
  • Shaft Type: Flat
  • Starting Method: Induction Run
Certifications
UL Recognized
CSA: Yes
